521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Chute Rod Group Parts Diagram

21" Snow Blower

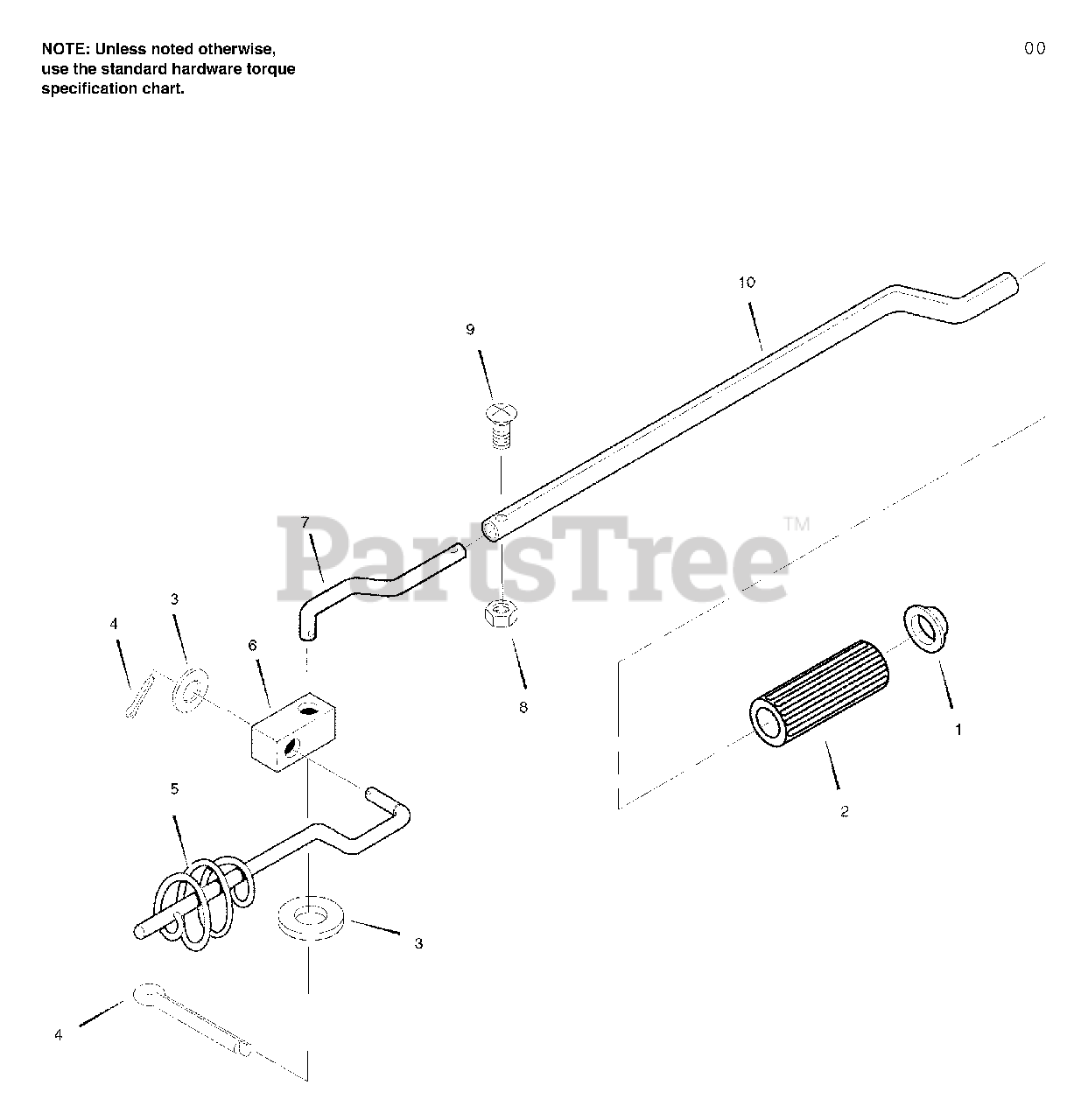

Chute Rod Group Parts Diagram

  • Title

1

Husqvarna 601001817

PUSH NUT

$

$

Not available

2

Husqvarna 601400029

KNOB, GRIP
(Superseded to 601001816)

$

$

Not available

3

Husqvarna 601400003

WASHER, FLAT .400 x .75 x .02

$

$

Not available

4

Husqvarna 601400083

PIN, COTTER

$

$

Not available

5

Husqvarna 601001810

ROD, CHUTE CNTRL LWR

$

$

Not available

6

Husqvarna 601001811

BLOCK, PIVOT

$

$

Not available

7

Husqvarna 601400030

ROD, CHUTE CNTRL MID

$

$

Not available

8

Husqvarna 601001815

NUT, LOCK 10-32

$

$

Not available

9

Husqvarna 601400048

SCREW, 10-32 x .88

$

$

Not available

10

Husqvarna 601400033

ROD, CHUTE UPPER

$

$

Not available
