521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Discharge Chute Group Parts Diagram

21" Snow Blower

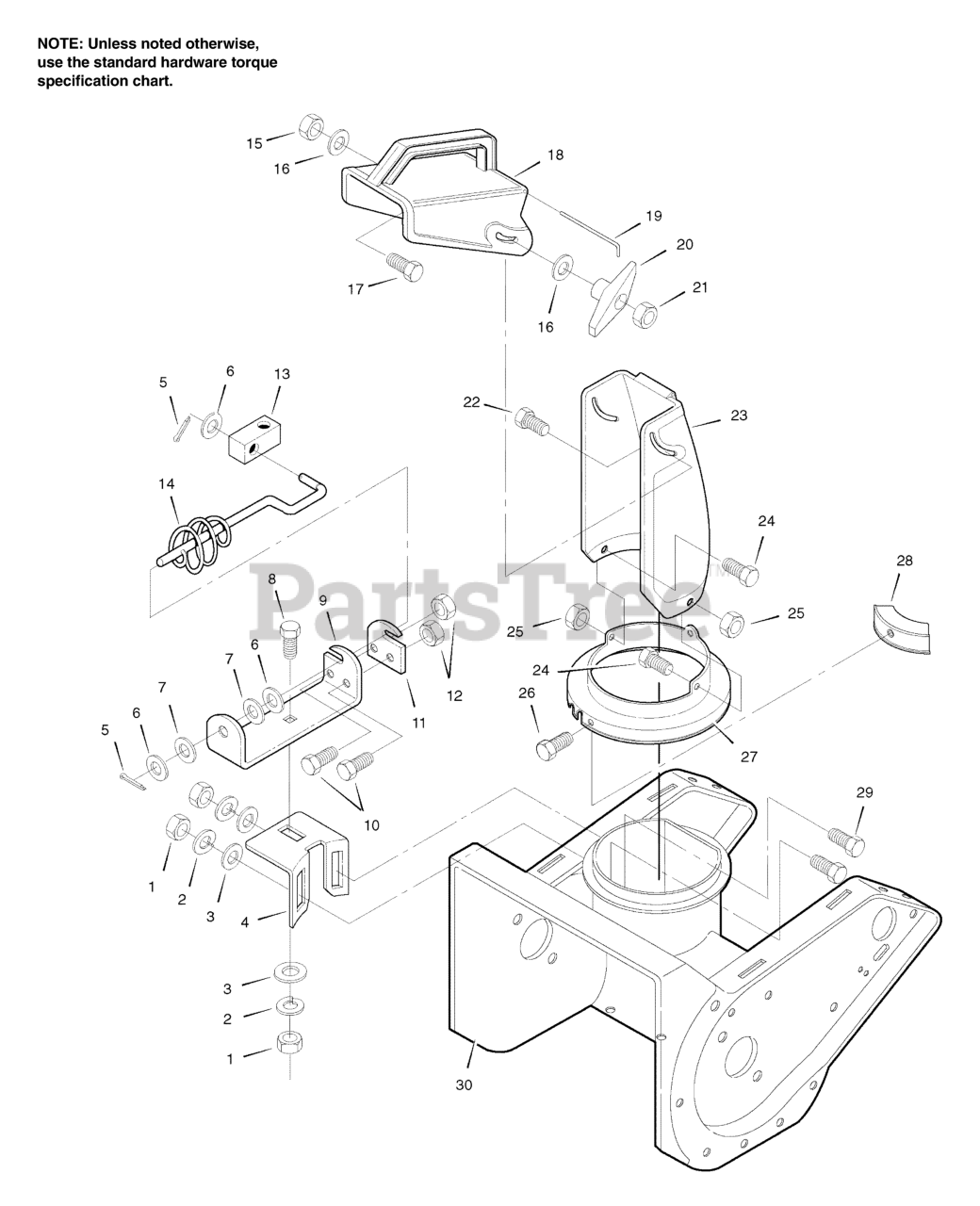

Discharge Chute Group Parts Diagram

  • Title

1

Husqvarna 601400007

NUT .31-18HEX YZ

$

$

Not available

2

Husqvarna 601400079

WASHER, SPTLK .31X.58
(Superseded to 532198552)

$

$

Not available

3

Husqvarna 601400081

WASHER, FLAT .349X.69

$

$

Not available

4

Husqvarna 601400025

BRKT, WORM ADJUST

$

$

Not available

5

Husqvarna 601400083

PIN, COTTER .094 DIA.

$

$

Not available

6

Husqvarna 601400003

WASHER .400-0.75-.02 F

$

$

Not available

7

Husqvarna 601001404

WASHER

$

$

Not available

8

Husqvarna 601001411

BOLT

$

$

Not available

9

Husqvarna 601400019

BRACKET, CHUTE ROD HO

$

$

Not available

10

Husqvarna 601400045

SCREW, 1/4-20X .50 HH

$

$

Not available

11

Husqvarna 601400027

PLATE, CHUTE ROD YL

$

$

Not available

12

Husqvarna 601400086

NUT .25-20 HEX CTRLOCK

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 601001811

BLOCK, PIVOT PLASTIC

$

$

Not available

14

Husqvarna 601001810

ROD, ASSY CHUTE LWR

$

$

Not available

15

Husqvarna 601400085

NUT .31-18 HEX CTRLK

$

$

Not available

16

Husqvarna 601400081

WASHER, FLAT .349X.69

$

$

Not available

17

Husqvarna 601002038

SCREW, 5/16-18X.75

$

$

Not available

18

Husqvarna 601400049

UPPER CHUTE-GRAY 314704MA
(Superseded to 601505194)

$

$

Not available

19

Husqvarna 601001389

HINGE WIRE

$

$

Not available

20

Husqvarna 601400069

KNOB, WING

$

$

Not available

21

Husqvarna 601400007

NUT .31-18HEX YZ

$

$

Not available

22

Husqvarna 601001390

BOLT

$

$

Not available

23

Husqvarna 601400050

LOWER CHUTE-GRAY
(Superseded to 601505191)

$

$

Not available

24

Husqvarna 601400045

SCREW, 1/4-20X .50 HH

$

$

Not available

25

Husqvarna 601400086

NUT .25-20 HEX CTRLOCK

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 601001802

SCREW, 1/4-14X.63 HWATAP

$

$

Not available

27

Husqvarna 601400008

CHUTE RING

$

$

Not available

28

Husqvarna 601001803

CLIP, CHUTE RING PLASTIC

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 601001411

BOLT

$

$

Not available

30

Husqvarna 601400058

AUGER HOUSING,21

$

$

Not available
