521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Frame Group Parts Diagram

21" Snow Blower

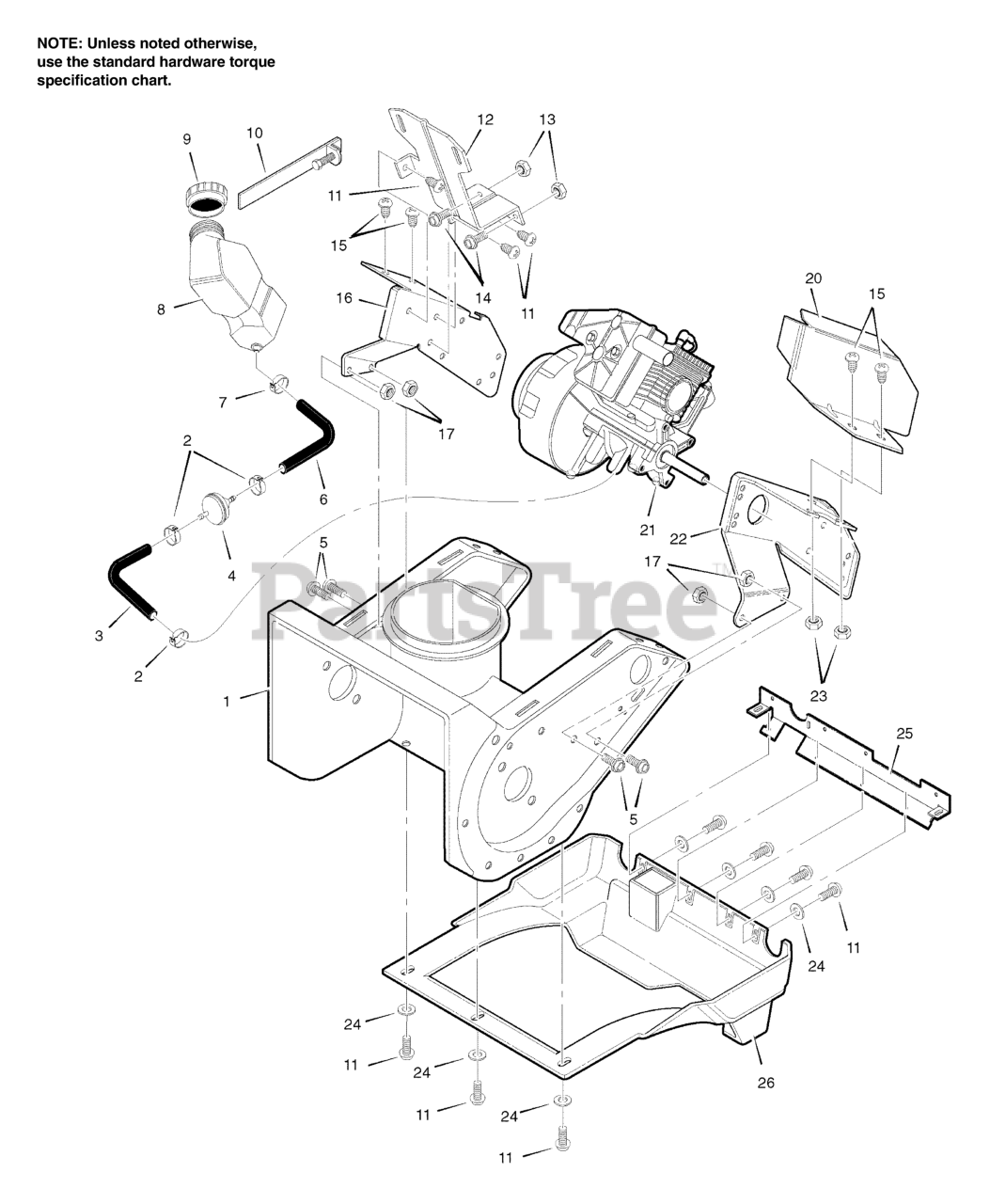

Frame Group Parts Diagram

  • Title

1

Husqvarna 601400058

AUGER HOUSING,21

$

$

Not available

2

Husqvarna 601001779

CLAMP, TUBING

$

$

Not available

3

Husqvarna 601400054

TUBING .25X.47.3.00 G

$

$

Not available

4

Husqvarna 601400063

FILTER-FUEL

$

$

Not available

5

Husqvarna 601400046

SCREW .31-18 X 0.50 HHC

$

$

Not available

6

Husqvarna 601001776

TUBING, FUEL

$

$

Not available

7

Husqvarna 601400065

CLAMP, SCREW TYPE

$

$

Not available

8

Husqvarna 601001774

TANK, FUEL, 1.62 QT.

$

$

Not available

9

Husqvarna 601001775

CAP, FUEL, W/2654 SEAL

$

$

Not available

10

Husqvarna 601400037

CLAMP, WORM DR 2.62-4

$

$

Not available

11

Husqvarna 601400034

SCREW, 10-24X0.62 TRPH

$

$

Not available

12

Husqvarna 601400032

BRKT, FUEL TANK

$

$

Not available

13

Husqvarna 601001367

NUT

$

$

Not available

14

Husqvarna 601400017

SCREW, 10-24 X 0.50 WAHH

$

$

Not available

15

Husqvarna 601400052

SCREW .25-20 X 0.62 PHPN

$

$

Not available

16

Husqvarna 601400022

PLATE, REAR MT RH

$

$

Not available

17

Husqvarna 601400085

NUT .31-18 HEX CTRLK

$

$

Not available

20

Husqvarna 601400038

SHIELD, ENGINE HEAT

$

$

Not available

21

ENGINE

$

$

Not available

22

Husqvarna 601400023

PLATE, REAR

$

$

Not available

23

Husqvarna 601400026

NUT .25-20 HEX FLG CTR

$

$

Not available

24

Husqvarna 601001703

WASHER

$

$

Not available

25

Husqvarna 601400031

BRKT, SHROUD MOUNT

$

$

Not available

26

Husqvarna 601400009

BOTTOM COVER

Note: Used on Model 521SSE (621502x37NA) Only

$

$

Not available

26

Husqvarna 601400013

BOTTOM COVER

Note: Used on Model 521SSR (621503x37NA) Only

$

$

Not available
