521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Frame Group Parts Diagram

21" Snow Blower

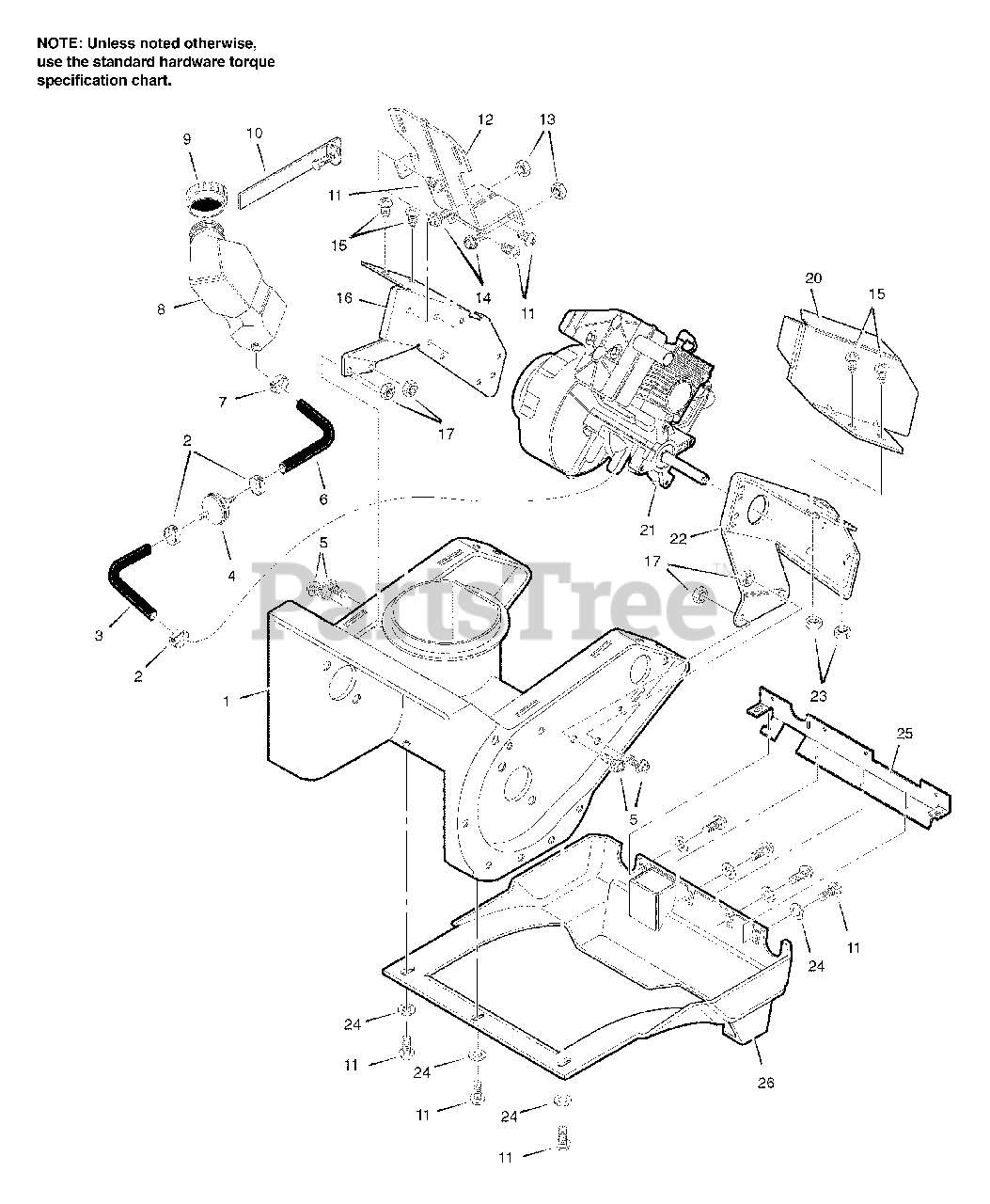

Frame Group Parts Diagram

  • Title

1

Husqvarna 601400058

AUGER HOUSING 21"

$

$

Not available

2

Husqvarna 601001779

CLAMP, TUBING

$

$

Not available

3

Husqvarna 601400054

TUBING, FUEL

$

$

Not available

4

Husqvarna 601400063

FILTER, FUEL

$

$

Not available

5

Husqvarna 601400046

SCREW .31-18 x .50

$

$

Not available

6

Husqvarna 601001776

TUBING, FUEL

$

$

Not available

7

Husqvarna 601400065

CLAMP, TUBING

$

$

Not available

8

Husqvarna 601001774

FUEL TANK

$

$

Not available

9

Husqvarna 601001775

CAP, FUEL

$

$

Not available

10

Husqvarna 601400037

CLAMP, WORM DR

$

$

Not available

11

Husqvarna 601400034

SCREW 10-24 x .62

$

$

Not available

12

Husqvarna 601400032

BRACKET, FUEL TANK

$

$

Not available

13

Husqvarna 601001367

NUT, LOCK 10-24

$

$

Not available

14

Husqvarna 601400017

SCREW 10-24 x .50

$

$

Not available

15

Husqvarna 601400052

SCREW .25-20 x .62

$

$

Not available

16

Husqvarna 601400022

PLATE, REAR MT RH

$

$

Not available

17

Husqvarna 601400085

NUT, LOCK .31-18

$

$

Not available

20

Husqvarna 601400038

HEAT SHIELD

$

$

Not available

21

ENGINE

$

$

Not available

22

Husqvarna 601400023

PLATE, REAR MT LH

$

$

Not available

23

Husqvarna 601400026

NUT, LOCK .25-20

$

$

Not available

24

Husqvarna 601001703

WASHER, FLAT

$

$

Not available

25

Husqvarna 601400031

BRACKET, COVER

$

$

Not available

26

Husqvarna 601400009

BOTTOM COVER

Note: Used on Model 521SSE (621502x37NA) Only

$

$

Not available

26

Husqvarna 601400013

BOTTOM COVER

Note: Used on Model 521SSR (621503x37NA) Only

$

$

Not available
