521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Handle Group Parts Diagram

21" Snow Blower

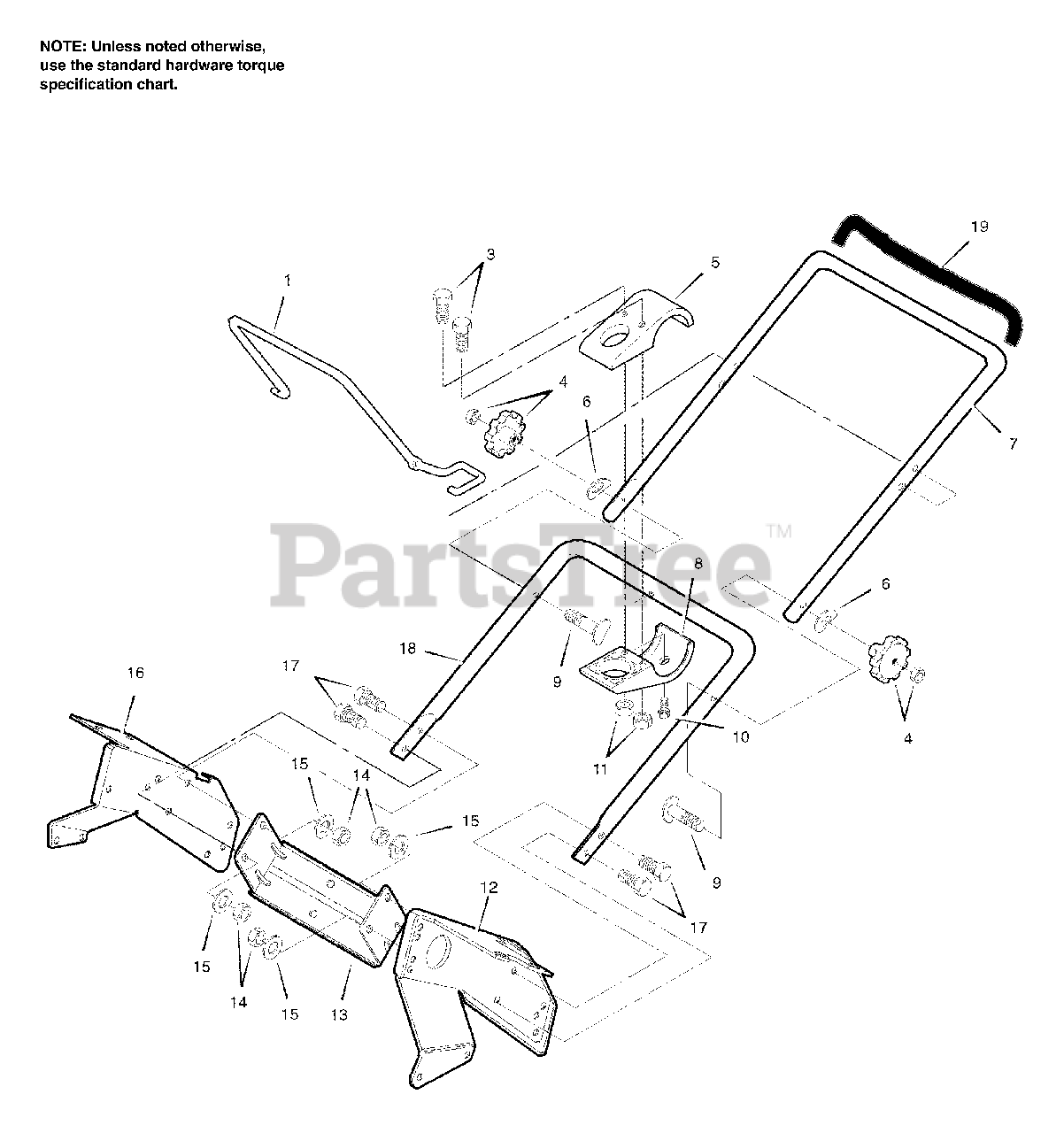

Handle Group Parts Diagram

  • Title

1

Husqvarna 601400028

DRIVEBAR

$

$

Not available

3

Husqvarna 601001826

SCREW 10-24 x 1.00

$

$

Not available

4

Husqvarna 601400055

KNOB

$

$

Not available

5

Husqvarna 601001824

BRACKET, UPPER CRANK

$

$

Not available

6

Husqvarna 601002413

WASHER, FORMED

$

$

Not available

7

Husqvarna 601400047

HANDLE, UPPER w/FOAM

$

$

Not available

8

Husqvarna 601001825

BRACKET, LOWER CRANK

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 601002150

BOLT, FORMED HEAD

$

$

Not available

10

Husqvarna 601001445

SCREW .25-20 x .62

$

$

Not available

11

Husqvarna 601400078

NUT, LOCK 10-24

$

$

Not available

12

Husqvarna 601400023

PLATE, REAR MOUNT LH

$

$

Not available

13

Husqvarna 601400021

FRAME SUPPORT

$

$

Not available

14

Husqvarna 601400085

NUT, LOCK .31-18

$

$

Not available

15

Husqvarna 601400079

WASHER, LOCK
(Superseded to 532198552)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 601400022

PLATE, REAR MOUNT RH

$

$

Not available

17

Husqvarna 601400043

SCREW .31-18 x .75

$

$

Not available

18

Husqvarna 601400035

LOWER HANDLE

$

$

Not available

19

Husqvarna 601400018

TUBING, FOAM

$

$

Not available
