521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Top Cover Group Parts Diagram

21" Snow Blower

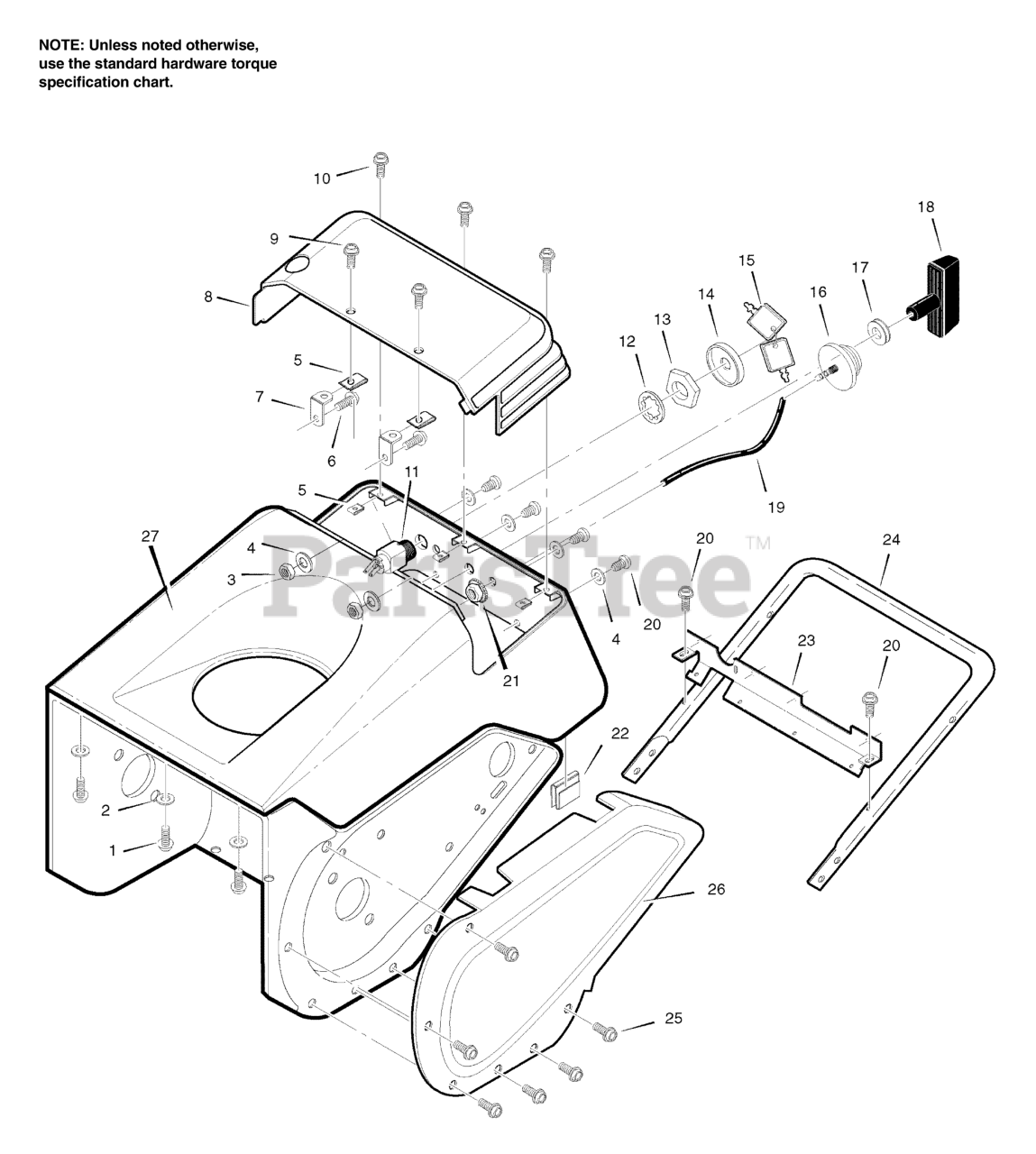

Top Cover Group Parts Diagram

  • Title

1

Husqvarna 601001787

SCREW 10-14 x .63

$

$

Not available

2

Husqvarna 601400084

WASHER

$

$

Not available

3

Husqvarna 601400078

NUT, 10-24 HEX NYLOCK

$

$

Not available

4

Husqvarna 601001703

WASHER

$

$

Not available

5

Husqvarna 601001788

NUT, U TYPE

$

$

Not available

6

Husqvarna 601400002

SCREW, 10-24X.50 WAHH

$

$

Not available

7

Husqvarna 601400040

BRKT, ACCESS COVER

$

$

Not available

8

Husqvarna 601400012

COVER, ENGINE ACCESS

$

$

Not available

9

Husqvarna 601400039

SCREW

$

$

Not available

10

Husqvarna 601400041

SCREW, 10-16X0.75 RDPH

$

$

Not available

11

Husqvarna 601001358

SWITCH

$

$

Not available

12

Husqvarna 601400044

WASHER .640X1.1X.05

$

$

Not available

13

Husqvarna 601000111

NUT, 5/8-32 IGN SWIT PLA

$

$

Not available

14

Husqvarna 601000112

BOOT,SWITCH

$

$

Not available

15

Husqvarna 601400076

KEY SET - 691959

$39.99

$

Usually ships in 3-10 days

0

16

Husqvarna 601001362

PRIMER

$

$

Not available

17

Husqvarna 601400070

GROMMET AND WASHER, ROP

$

$

Not available

18

Husqvarna 601400056

KNOB, STAND TEE

$

$

Not available

19

Husqvarna 601001363

HOSE,PRIMER 5.75 TEC

$

$

Not available

20

Husqvarna 601400034

SCREW, 10-24X0.62 TRPH

$

$

Not available

21

Husqvarna 601001790

NUT .25-20 KEPS

$

$

Not available

22

Husqvarna 601400042

CLIP, S-TINNERMAN BLAC

$

$

Not available

23

Husqvarna 601400031

BRKT, SHROUD MOUNT

$

$

Not available

24

Husqvarna 601400035

HNDL, LWR 0.88D LOOP

$

$

Not available

25

Husqvarna 601400036

SCREW, 10-24X0.38 HEX

$

$

Not available

26

Husqvarna 601400024

COVER, BELT

$

$

Not available

27

Husqvarna 601400010

COVER, TOP

$

$

Not available
