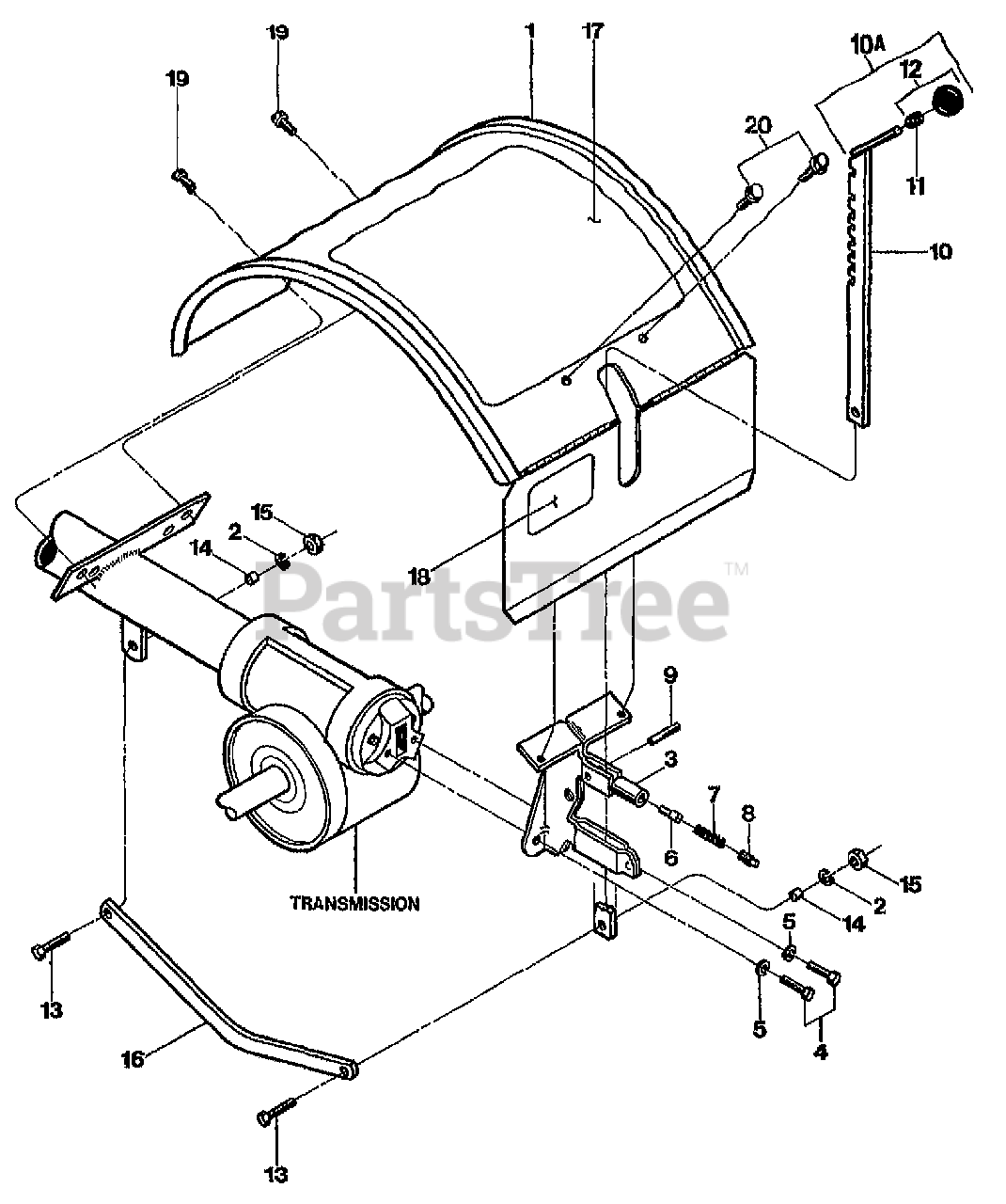

5211 - Troy-Bilt Junior III Rear-Tine Tiller (SN: M0067999 - M0075089) HOOD & DEPTH REGULATOR Parts Diagram

Junior III Rear-Tine Tiller

HOOD & DEPTH REGULATOR Parts Diagram

  • Title

1

Troy-Bilt 50239

HOOD W/DECALS P/J (Tine cover w/ hinged flap; Inc. 17 & 18.)

$

$

Currently unavailable

2

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

3

Troy-Bilt 2255

KIT-REAR HOOD BRKT (Hood & depth reg., Inc 9)

$

$

Currently unavailable

4

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP (Bracket to rear bearing cap.)

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 1119

PLUNGER (Depth reg. locking.)

$

$

Currently unavailable

7

Troy-Bilt 1120

SPRING .406 X 1.25 (Depth reg. plunger.)

$

$

Currently unavailable

8

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$3.99

$

In Stock, Qty 5

0

9

Troy-Bilt 9308

PIN-ROLL .25 X 1 (Spiral)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 20+

0

10

0

BAR ASSEMBLY (Not available separately, see #10A)

$

$

Not available

10A

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (depth adj.; Inc. 10- 12)
(Superseded to 1900864)

$80.99

$

In Stock, Qty 9

0

11

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 9119

KNOB-CONTROL (Depth reg. Inc. #11)
(Superseded to GW-9119)

$10.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

14

Troy-Bilt 1113-1

BUSHING-.5X.375X.3 (Spacer, Drag Bar)
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

16

Troy-Bilt 20775

DRAG BAR-BENT (Depth reg.)
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 50236

DECAL-HOOD INST

$

$

Currently unavailable

18

Troy-Bilt 50098

DECAL-TB JR LOGO

$

$

Currently unavailable

19

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0
