5212.5 G (1691429) - Simplicity Lawn Tractor, 12.5hp Engine Group Parts Diagram

Lawn Tractor, 12.5hp

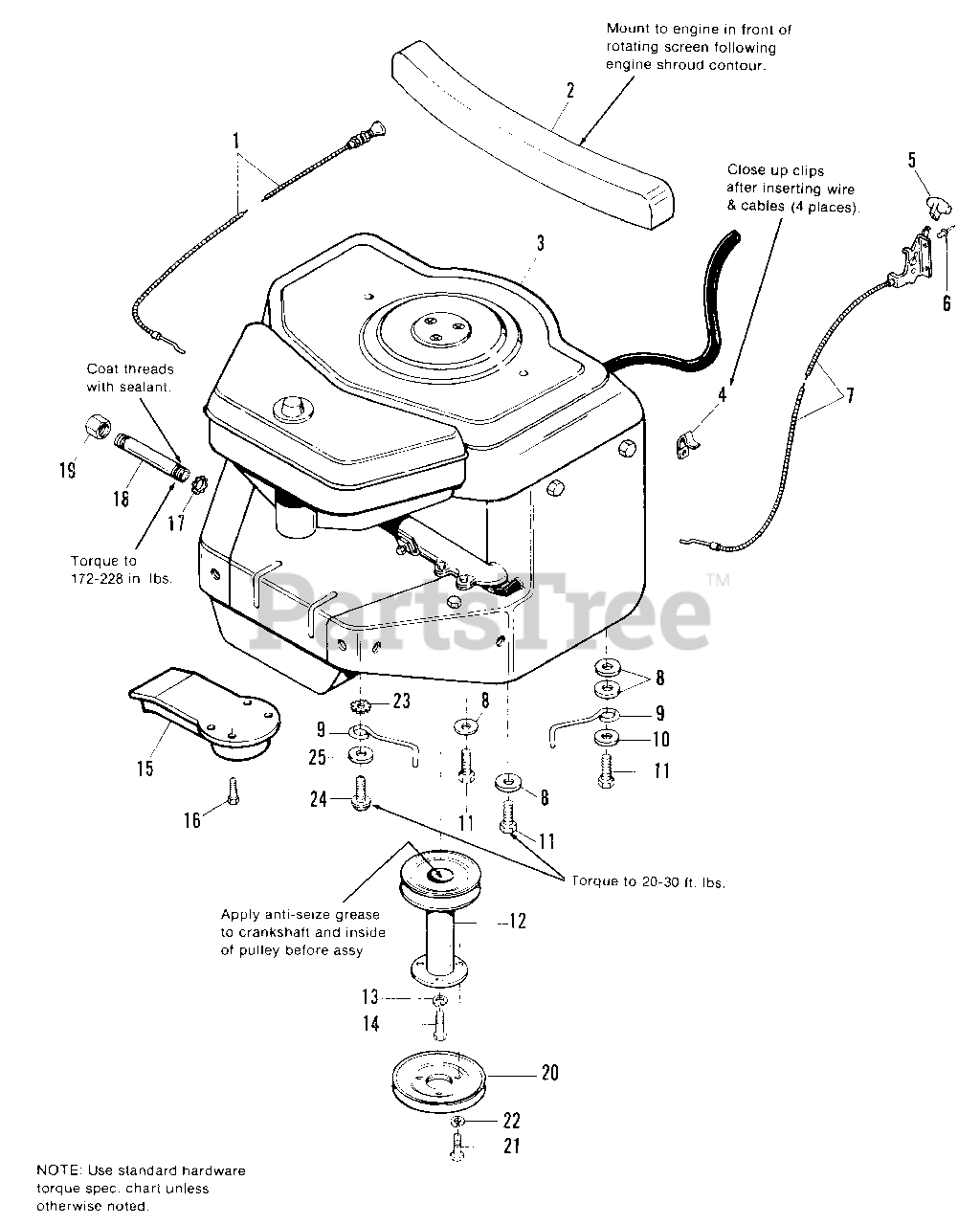

Engine Group Parts Diagram

  • Title

1

Simplicity 1667748SM

CONTROL, Choke

$82.99

$

Usually ships in 2-12 days

0

2

Simplicity 1665752SM

BAFFLE, Engine, Rear

$58.99

$

Usually ships in 2-12 days

0

3

ENGINE, 16 H.P. (1691558) ENGINE. 12.5 H.P. (1691431)

$

$

Not available

4

Simplicity 1666835

CLIP, Wire

$

$

Not available

5

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 2860241

RIVET, Pop, 1/4 x 7/16

$

$

Not available

7

Simplicity 1665516SM

CONTROL ASSY.

$100.99

$

Usually ships in 2-12 days

0

8

Simplicity 1924356SM

WASHER, Plain
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 121073

STOP, Belt

$

$

Not available

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

12

Simplicity 1669749SM

PULLEY ASSY., Engine

$245.99

$

Usually ships in 2-12 days

0

13

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 9

0

14

Simplicity 1928038SM

CAPSCREW, Hex, 7/16-20 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

15

Simplicity 1666787ASM

EXTENSION ASSY., Muffler

$

$

Not available

16

Simplicity 1934940SM

SCREW, Hex Thd., Cutting, #8-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1932849SM

LOCKNUT, Conduit

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1670680

PIPE, Oil Drain

$

$

Not available

19

Simplicity 1667346SM

PIPE, Cap, Hex

$7.99

$

Usually ships in 2-12 days

0

20

Snapper 1669752SM

PULLEY

$

$

Not available

21

Simplicity 1921677SM

CAPSCREW, Hex, 5/16-18 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8, Zinc Pltd.
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2, Zinc Pltd.

$4.99

$

In Stock, only 2 left!

0

25

Simplicity 9243561

WASHER, 3/8, Zinc Pltd.

$

$

Not available
