Lawn-Boy 52140 (YT 16) - Lawn-Boy Yard Tractor (SN: J00000001 - J99999999) (1990) Engine And Electrical Parts Lists Parts Lookup with Diagrams

1

Engine-BS 16 H.P., Model 402707 Type 1401-01

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

2

Lawn-Boy 701542

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

3

Lawn-Boy 701140

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

4

Lawn-Boy 740580

THROTTLE CONTROL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$139.99

$

Usually ships in 3-6 days

5

Lawn-Boy 700966

THROTTLE KNOB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$26.99

$

Usually ships in 3-6 days

6

Lawn-Boy 740390

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

7

Lawn-Boy 147119

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

8

Lawn-Boy 701508

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

9

Lawn-Boy 700882

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

10

Lawn-Boy 700322

CLAMP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

11

Lawn-Boy 147198

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

12

Lawn-Boy 740379

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

13

Lawn-Boy 740207

SOLENOID

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$34.99

$

In Stock, Qty 11

14

Lawn-Boy 700983

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

15

Lawn-Boy 740637

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

16

Lawn-Boy 700779

DISCONTINUED

Note: NOTE: All assemblies that list deacals have only operational, instructional or safety decals. Other kinds of decals must be ordered seperately.

$

Not available 

16

Lawn-Boy 700779

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

16

Lawn-Boy 700779

DISCONTINUED

Note: Parts shown with bullet

$

Not available 

17

Lawn-Boy 740388

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

18

Lawn-Boy 700932

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

18

Lawn-Boy 700932

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

Not available 

19

Lawn-Boy 740165

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

20

Lawn-Boy 740272

See Supercession: 116338

(Superseded to 116338) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$76.99

$

In Stock, Qty 5

21

Lawn-Boy 701173

See Supercession: 9201604

(Superseded to 9201604) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, only 4 left!

22

Lawn-Boy 700919

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

23

Lawn-Boy 700918

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

24

Lawn-Boy 740171

SWITCH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

25

Lawn-Boy 740396

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

26

Lawn-Boy 740209

SWITCH ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

27

Lawn-Boy 740274

SWITCH,SEAT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$118.99

$

Usually ships in 3-6 days

28

Lawn-Boy 740391

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

29

Lawn-Boy 701556

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

30

Lawn-Boy 740275

SWITCH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

31

Lawn-Boy 701517

FOAM STRIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

32

Lawn-Boy 147172

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

33

Lawn-Boy 740400

WIRE HARNESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$352.99

$

Usually ships in 3-6 days

34

Lawn-Boy 740191

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

35

Lawn-Boy 740387

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

36

Lawn-Boy 740373

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

37

Lawn-Boy 701972

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

38

Lawn-Boy 700753

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

39

Lawn-Boy 702030

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

40

Lawn-Boy 700989

See Supercession: 9266964

(Superseded to 9266964) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

41

Lawn-Boy 740211

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

42

Lawn-Boy 700960

BEZEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

43

Lawn-Boy 700679

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

44

Lawn-Boy 700804

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

45

Lawn-Boy 701509

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

46

Lawn-Boy 701293

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

47

Lawn-Boy 147665

See Supercession: 95-3003

(Superseded to 95-3003) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

48

Lawn-Boy 147664

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.18

$

In Stock, only 1 left!

49

Lawn-Boy 700429

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

50

Lawn-Boy 701193

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

51

Lawn-Boy 700970

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

52

Lawn-Boy 146507

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

53

Lawn-Boy 700755

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

54

Lawn-Boy 700822

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 10

55

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

56

Lawn-Boy 146258

See Supercession: 3253-4

(Superseded to 3253-4) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

57

Lawn-Boy 146259

NUT SS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

58

Lawn-Boy 701513

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

59

Lawn-Boy 700149

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

60

Lawn-Boy 146368

See Supercession: 3256-23

(Superseded to 3256-23) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

61

Lawn-Boy 701335

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

62

Lawn-Boy 146260

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

63

Lawn-Boy 146205

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

64

Lawn-Boy 700042

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 1 left!

65

Lawn-Boy 147549

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

66

Lawn-Boy 740392

SWITCH-PTO W/SAFTY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

67

Lawn-Boy 701506

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

68

Lawn-Boy 740374

LIGHT-PTO INDICTOR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

69

Lawn-Boy 701510

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

69

Lawn-Boy 701510

DISCONTINUED

Note: NOTE: All assemblies that list deacals have only operational, instructional or safety decals. Other kinds of decals must be ordered seperately.

$

Not available 

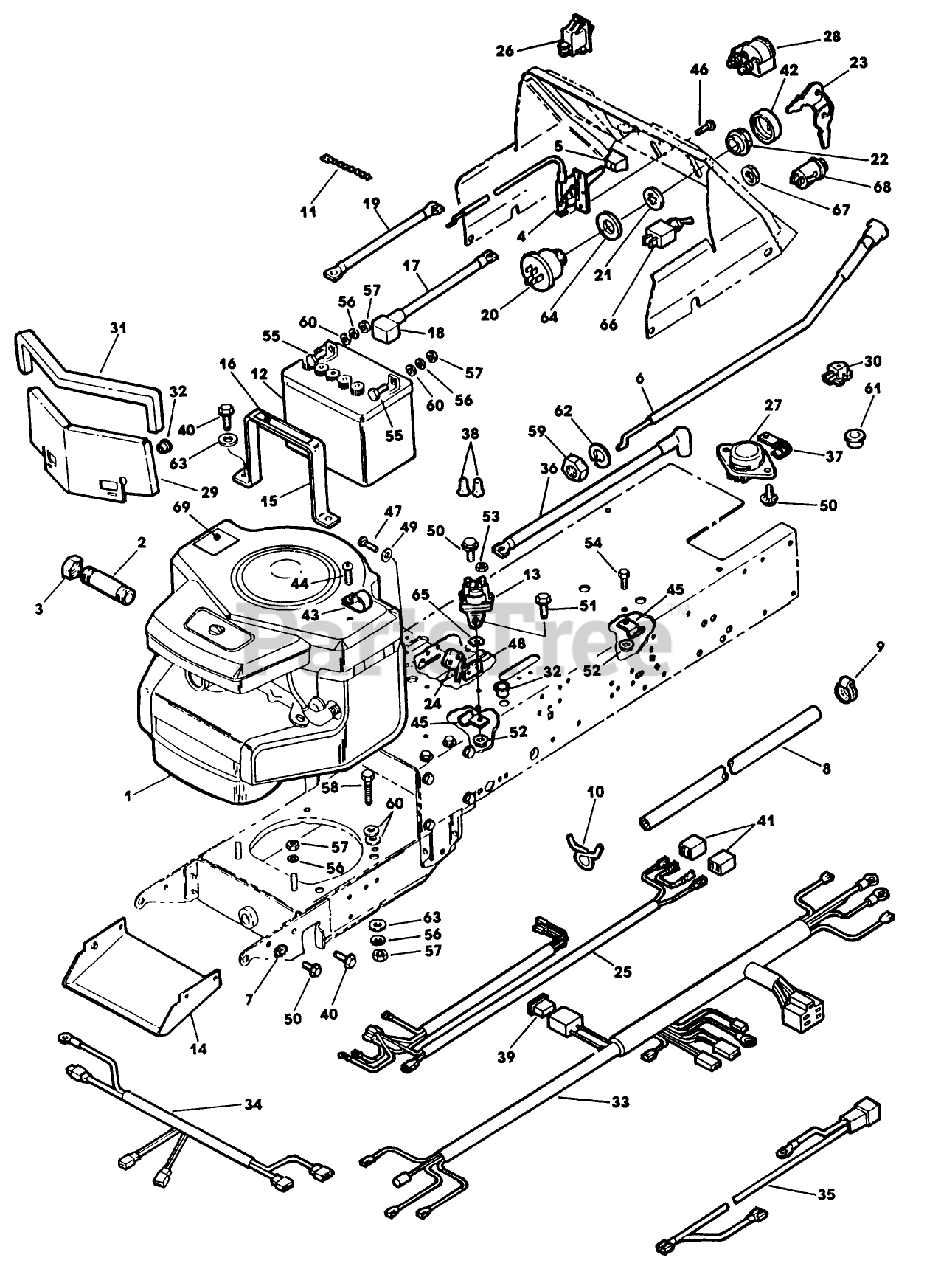

52140 (YT 16) - Lawn-Boy Yard Tractor (SN: J00000001 - J99999999) (1990) Engine And Electrical Parts Lists Parts Diagram

Engine And Electrical Parts Lists Parts Diagram
