52149 (LT 12 H) - Lawn-Boy Lawn Tractor (SN: 900000001 - 999999999) (1989) Engine And Electrical Parts List Parts Diagram

Lawn Tractor

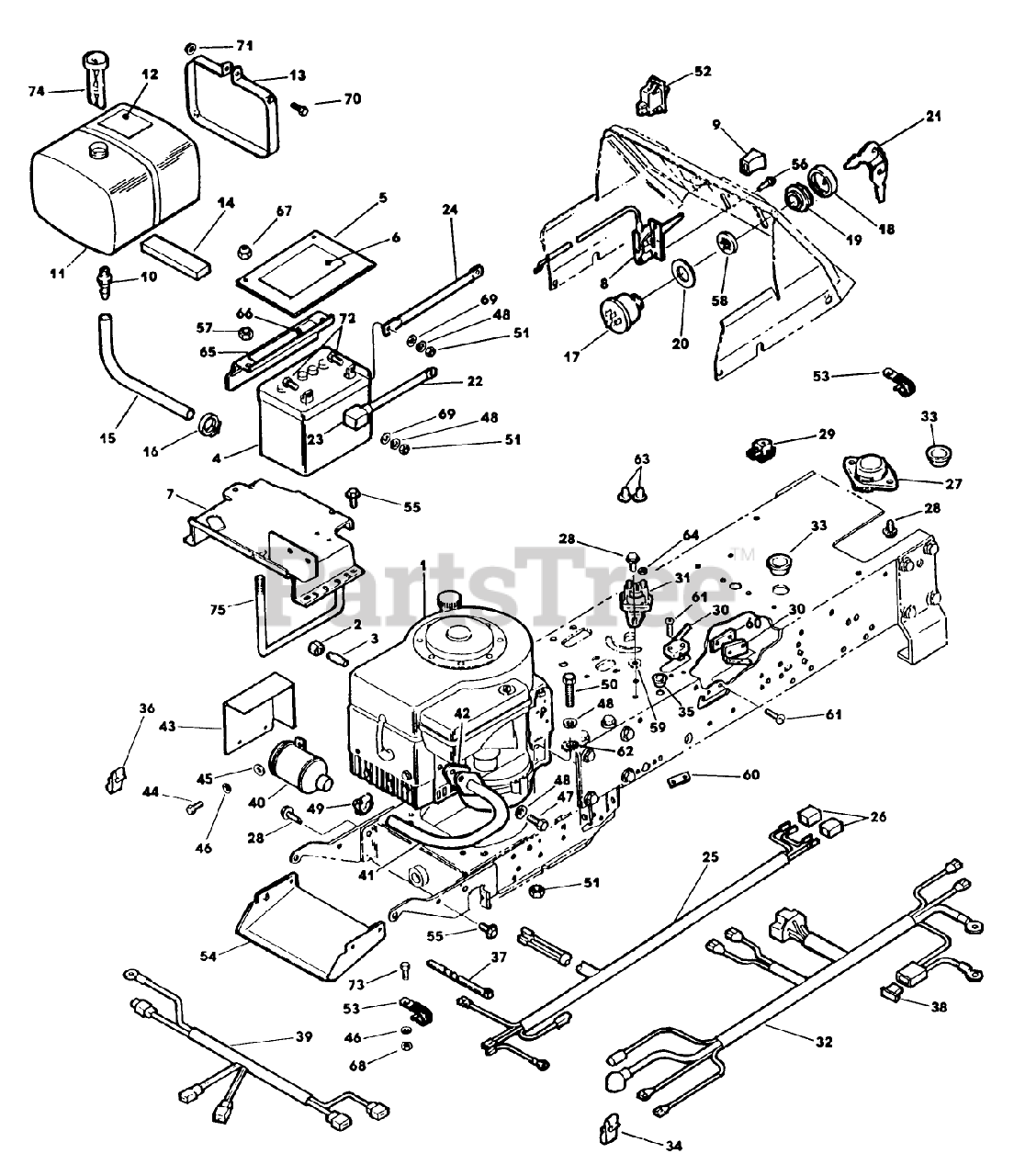

Engine And Electrical Parts List Parts Diagram

  • Title

1

Engine-12 H.P. BS, Model 281707 Type 0130-01

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 701140

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 701143

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 740252

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 740205

BATT. CVR & R/B 744648

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 700937

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 700937

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

6

Lawn-Boy 700937

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional

$

$

Not available

7

Lawn-Boy 740899

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 740759

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 700966

THROTTLE KNOB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$26.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 701135

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 740644

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 700953

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional

$

$

Not available

12

Lawn-Boy 700953

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

12

Lawn-Boy 700953

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 700967

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 701136

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 700765

HOSE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 703897

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 740249

See Supercession: 23-0660
(Superseded to 23-0660)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 700960

BEZEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 700919

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 700042

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 700918

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 740203

CABLE ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$45.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 700932

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 700932

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

24

Lawn-Boy 740165

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 740182

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 740211

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 740275

SWITCH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 701193

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 740274

SWITCH,SEAT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$118.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 740171

SWITCH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 740207

SOLENOID

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$34.99

$

In Stock, Qty 11

0

32

Lawn-Boy 740251

See Supercession: 744415
(Superseded to 744415)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 701335

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 700798

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 147172

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 702366

CLIP-RETAINER, WIRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 147198

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 702030

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 740191

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 740261

MUFFLER AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 740262

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 701144

GASKET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

43

Lawn-Boy 700984

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 700138

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 146251

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

47

Lawn-Boy 146299

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 701115

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 146210

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 146259

NUT SS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 740209

SWITCH ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 701972

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 700983

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 700989

See Supercession: 9266964
(Superseded to 9266964)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 701293

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 146507

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 701173

See Supercession: 9201604
(Superseded to 9201604)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, only 4 left!

0

59

Lawn-Boy 147549

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 147664

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.18

$

In Stock, only 1 left!

0

61

Lawn-Boy 147665

See Supercession: 95-3003
(Superseded to 95-3003)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

62

Lawn-Boy 147119

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 700753

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 700755

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 740638

HOLD DOWN & DECAL (12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$57.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 700779

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

66

Lawn-Boy 700779

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional

$

$

Not available

66

Lawn-Boy 700779

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 146375

NUT-LOCK, CONE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 146254

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 146368

See Supercession: 3256-23
(Superseded to 3256-23)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 146309

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 700791

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 146249

See Supercession: 321-4
(Superseded to 321-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

74

Lawn-Boy 740256

FUEL CAP&GUAGE AY.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 700946

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
