52149 (LT 12 H) - Lawn-Boy Lawn Tractor (SN: J00000001 - J99999999) (1990) 38" Mower Deck Parts List Parts Diagram

Lawn Tractor

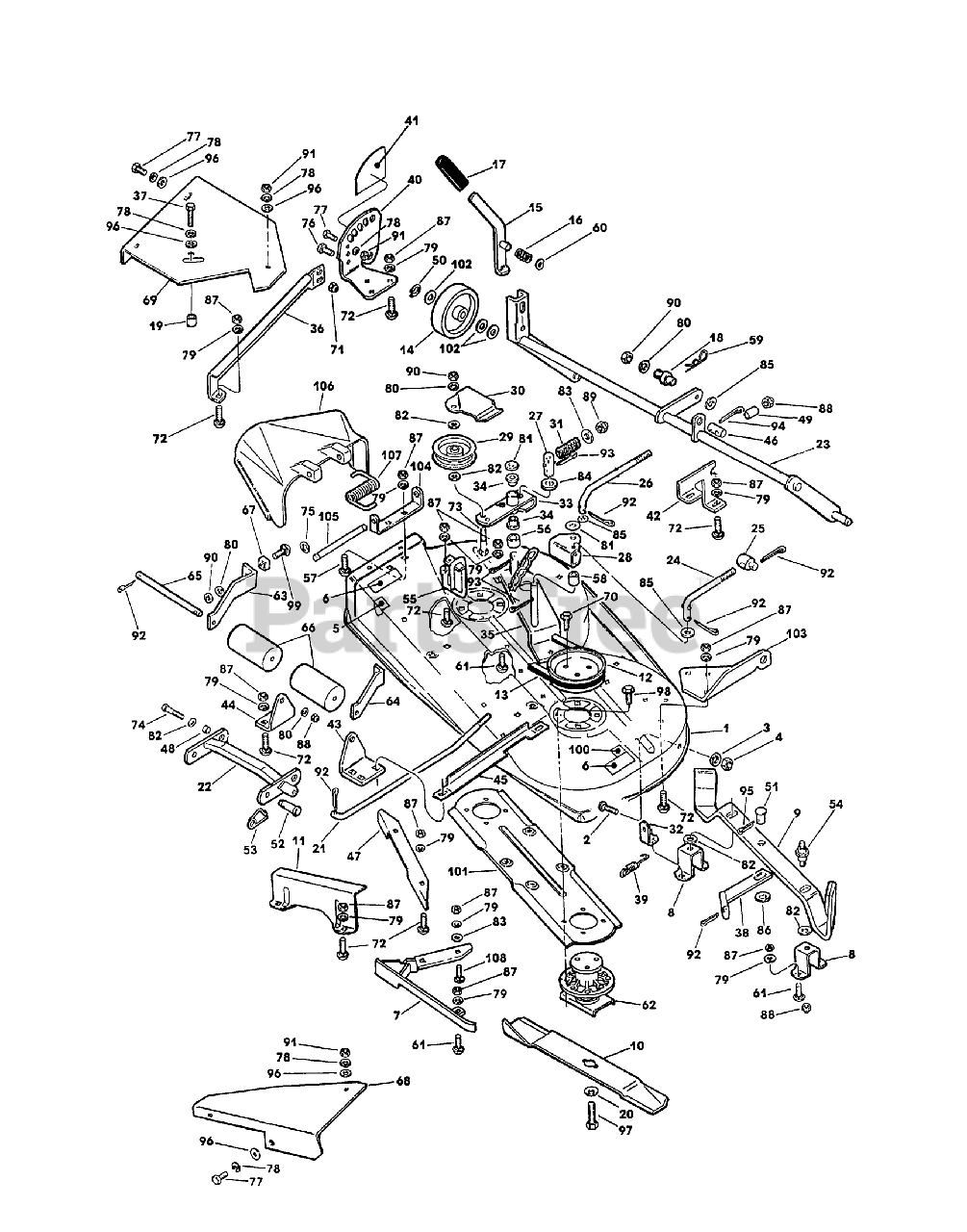

38" Mower Deck Parts List Parts Diagram

  • Title

1

Lawn-Boy 740651

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 701237

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 701237

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

3

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 10

0

3

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: Parts shown with bullet included with assembly above.

$0.99

$

In Stock, Qty 10

0

4

Lawn-Boy 146259

NUT SS

Note: Parts shown with bullet included with assembly above.

$

$

Not available

4

Lawn-Boy 146259

NUT SS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decal

$7.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Parts shown with bullet included with assembly above.

$7.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 701204

DECAL

Note: Parts shown with bullet included with assembly above.

$

$

Not available

6

Lawn-Boy 701204

DECAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 701204

DECAL

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decal

$

$

Not available

7

Lawn-Boy 740883

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 701331

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 740284

See Supercession: 740284-03
(Superseded to 740284-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 701221

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 740319

See Supercession: 743175
(Superseded to 743175)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 740293

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 701213

BELT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$65.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 740280

WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 740323

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 701236

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 701190

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 700780

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 700062

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 700772

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 701225

ROD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 740287

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 741520

See Supercession: 741517
(Superseded to 741517)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$737.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 701202

ROD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$63.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 701192

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 701232

ROD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 701229

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 701315

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 701231

PULLEY - 4"

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 701319

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 146322

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 701330

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 740314

DISCONTINUED
(Superseded to 740289)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 701234

BUSHING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 701234

BUSHING

Note: Parts shown with bullet included with assembly above.

$5.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 740320

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 740321

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 146249

See Supercession: 321-4
(Superseded to 321-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 740316

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 701211

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 740645

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 701191

DISCONTINUED

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decal

$6.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 701191

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 701191

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$6.49

$

Usually ships in 3-6 days

0

42

Lawn-Boy 701327

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 701326

BRACKET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 701325

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 701324

See Supercession: 701252
(Superseded to 701252)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 701224

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 702483

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 701189

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 701188

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 701121

RING - RETAINING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 1 left!

0

51

Lawn-Boy 701214

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 700799

PIN CLEVIS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 703419

PIN - SAFETY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 701910

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 740282

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 701200

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 701238

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 701201

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 701570

PIN-HAIR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 700404

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 146511

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 740296

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 701323

See Supercession: 701246-03
(Superseded to 701246-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 701322

See Supercession: 701245
(Superseded to 701245)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 701212

SHAFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 701203

ROLLER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$72.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 701242

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 701317

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 701316

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 700095

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 146501

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 1 left!

0

72

Lawn-Boy 700030

BOLT - CARRIAGE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 1 left!

0

73

Lawn-Boy 701289

See Supercession: 323-10
(Superseded to 323-10)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 7

0

74

Lawn-Boy 701194

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 701197

E-RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

76

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

77

Lawn-Boy 700822

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

78

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

79

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 10

0

80

Lawn-Boy 146260

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

81

Lawn-Boy 146204

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 146304

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 146205

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 146369

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

85

Lawn-Boy 146368

See Supercession: 3256-23
(Superseded to 3256-23)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 10

0

86

Lawn-Boy 700337

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

87

Lawn-Boy 146259

NUT SS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 700032

NUT-LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

89

Lawn-Boy 146501

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 1 left!

0

90

Lawn-Boy 146211

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

91

Lawn-Boy 146254

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

92

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 14

0

93

Lawn-Boy 146370

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

94

Lawn-Boy 701195

See Supercession: 3272-21
(Superseded to 3272-21)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

95

Lawn-Boy 146379

See Supercession: 3272-6
(Superseded to 3272-6)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

96

Lawn-Boy 700324

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

97

Lawn-Boy 146512

SCREW - HEX CAP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

98

Lawn-Boy 701243

SCREW-THD ROLL, HWH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

99

Lawn-Boy 700031

See Supercession: 3231-1
(Superseded to 3231-1)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 15

0

100

Lawn-Boy 701205

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

101

Lawn-Boy 701222

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

102

Lawn-Boy 146422

WASHER - SHIM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

103

Lawn-Boy 701328

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

104

Lawn-Boy 701320

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

105

Lawn-Boy 701198

SHAFT - CHUTE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

106

Lawn-Boy 700888

EXTENSION -CHUTE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

107

Lawn-Boy 701199

See Supercession: 710273
(Superseded to 710273)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

108

Lawn-Boy 700684

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
