521613x89B - Yard King 52" Garden Tractor (2002)

52" Garden Tractor

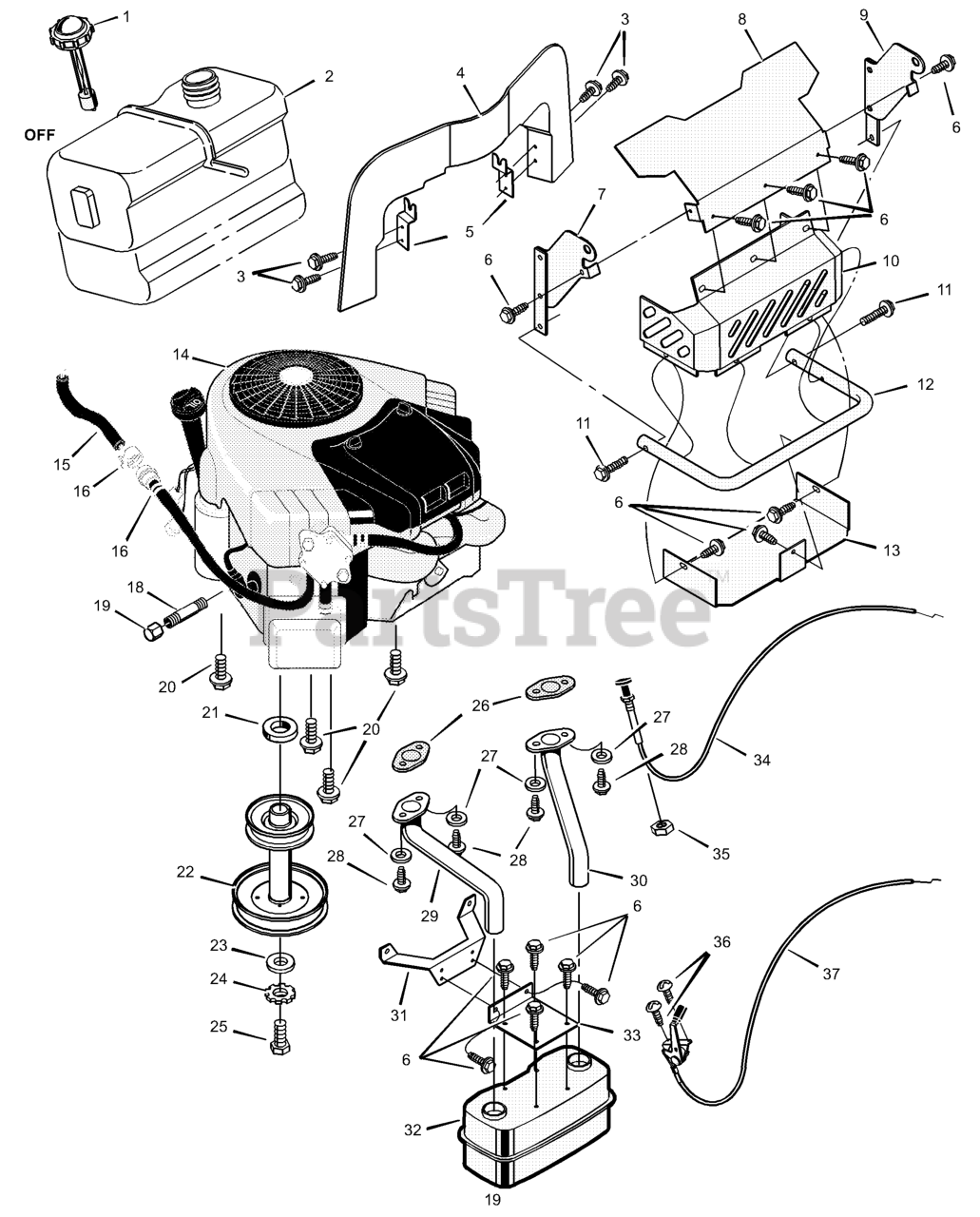

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Engine Mount Assembly

  • Title
1001279MA

1

Cap, Fuel

Part# 1001279MA

OEM Warranty Repair Part for Murray

Not available

093148

2

Tank, Fuel

Part# 093148

OEM Warranty Repair Part for Murray

Currently unavailable

26X270

3

Screw

Part# 26X270 (Superseded to 26X270MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

094357

4

Baffle

Part# 094357

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $66.38

094356  Z

5

Clip, Baffle Mounting

Part# 094356 Z

OEM Warranty Repair Part for Murray

Currently unavailable

26X263MA

6

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

690546E700

7

Assembly, Right Grille Support

Part# 690546E700

OEM Warranty Repair Part for Murray

Currently unavailable

690535

8

Shield, Heat

Part# 690535

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $403.08

690547E700

9

Assembly, Left Grille Support

Part# 690547E700

OEM Warranty Repair Part for Murray

Currently unavailable

095090

10

Shield, Heat

Part# 095090

OEM Warranty Repair Part for Murray

Currently unavailable

26X290

11

Screw

Part# 26X290

OEM Warranty Repair Part for Murray

Not available

690540

12

Guard

Part# 690540

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $403.08

094958

13

Shield, Lower

Part# 094958

OEM Warranty Repair Part for Murray

Currently unavailable

-----

14

Engine *

Part# -----

Not available

7601033MA

15

Fuel Line (Must cut to length)

Part# 7601033MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $16.51

095197MA

16

Clamp

Part# 095197MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

092279

18

Pipe, Oil Drain

Part# 092279

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.59

021651

19

Cap, Oil Drain

Part# 021651

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.78

0025X7MA

20

Bolt

Part# 0025X7MA (Superseded to 2828635SM)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

093077MA

21

Spacer

Part# 093077MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.08

690372

22

Pulley, Stack

Part# 690372 (Superseded to 791680)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

17X170MA

23

Washer

Part# 17X170MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.49

019X35MA

24

Lockwasher

Part# 019X35MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

01X140MA

25

Bolt

Part# 01X140MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.56

711851MA

26

Gasket

Part# 711851MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.38

018X15MA

27

Washer

Part# 018X15MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

001X91MA

28

Bolt

Part# 001X91MA (Superseded to 704287)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

690541MA

29

Tube, Right Exhaust

Part# 690541MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $49.58

690542MA

30

Tube, Left Exhaust

Part# 690542MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $49.58

690537E701MA

31

Bracket, Muffler Mount

Part# 690537E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $70.82

093259MA

32

Muffler

Part# 093259MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $69.36

690538E701MA

33

Bracket, Muffler

Part# 690538E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $10.50

690401

34

Choke

Part# 690401

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

015X68MA

35

Nut

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

26X201MA

36

Screw

Part# 26X201MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

093165MA

37

Control, Throttle

Part# 093165MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $28.29
