521613x89B - Yard King 52" Garden Tractor (2002) Front Axle Parts Diagram

52" Garden Tractor

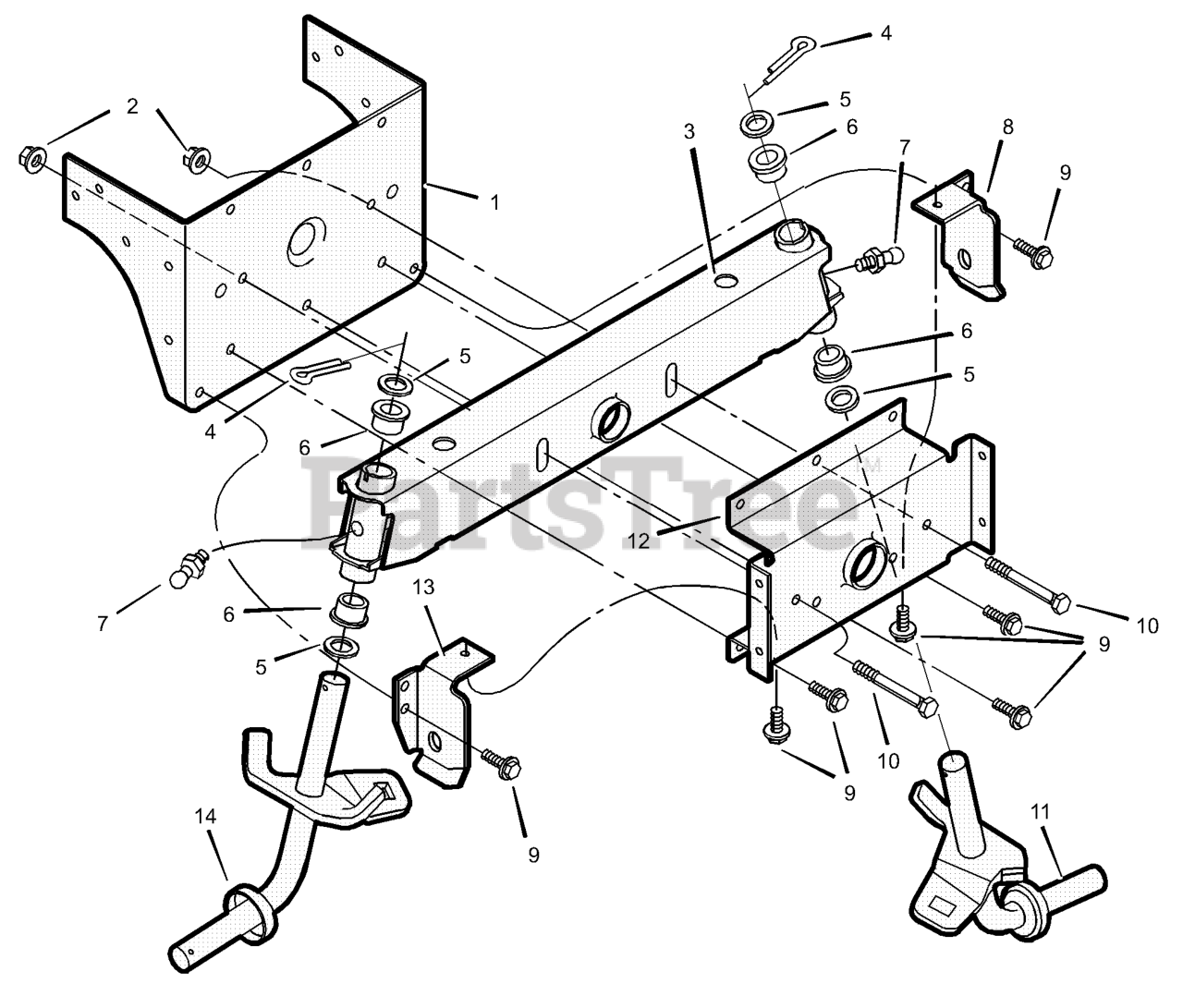

Front Axle Parts Diagram

  • Title

1

Murray 690067E700

Bracket, Rear Hanger

$

$

Not available

2

Murray 15X118MA

Nut, Flange
(Superseded to 704279)

$3.49

$

In Stock, Qty 5

0

3

Murray 1001460E701MA

Axle Assembly

$108.99

$

Usually ships in 2-12 days

0

4

Murray 030X49MA

Pin, Hair

$4.49

$

In Stock, Qty 7

0

5

Murray 017X75MA

Washer

$3.99

$

In Stock, only 1 left!

0

6

Murray 093058MA

Bearing, Spindle

$8.49

$

Usually ships in 2-12 days

0

7

Murray 092530MA

Fitting, Lub

$

$

Not available

8

Murray 690198E700

Hanger, Left Deck

$

$

Currently unavailable

9

Murray 26X249MA

Screw

$

$

Not available

10

Murray 01X146MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

11

Murray 690179E701MA

Spindle Assembly, Left

$

$

Not available

12

Murray 094007E700

Hanger, Axle

$

$

Currently unavailable

13

Murray 690199E701MA

Hanger, Right Deck

$

$

Not available

14

Murray 690178E701MA

Spindle Assembly, Right

$57.99

$

Usually ships in 2-12 days

0
