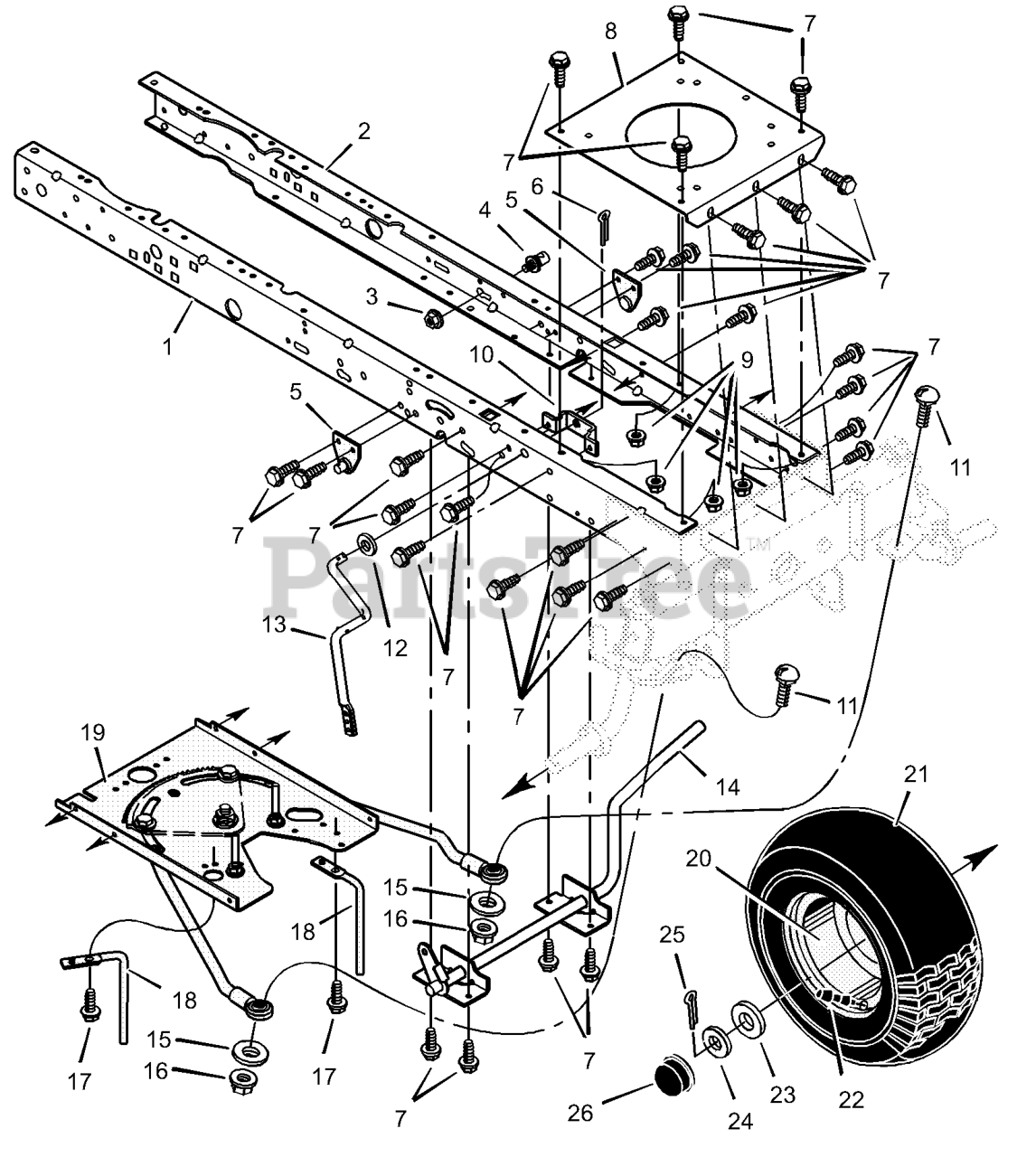

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Front Frame Assembly

  • Title
1001268E701

1

Frame, Right

Part# 1001268E701

OEM Warranty Repair Part for Murray

Not available

1001269E701MA

2

Frame, Left

Part# 1001269E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $85.81

015X84MA

3

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

690182MA

4

Stud, Swivel

Part# 690182MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $10.97

690406E700

5

Bracket Assembly, Suspension

Part# 690406E700

OEM Warranty Repair Part for Murray

Not available

030X20MA

6

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.80

26X249MA

7

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

094006E700

8

Plate, Engine

Part# 094006E700

OEM Warranty Repair Part for Murray

Currently unavailable

015X88MA

9

Nut

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

094005E700

10

Bracket, PTO Crank

Part# 094005E700

OEM Warranty Repair Part for Murray

Not available

002X87

11

Bolt, Carriage

Part# 002X87

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

017X57MA

12

Washer

Part# 017X57MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

690394E700

13

Crank, PTO

Part# 690394E700

OEM Warranty Repair Part for Murray

Currently unavailable

690415E700

14

Lever, Brake/Clutch

Part# 690415E700

OEM Warranty Repair Part for Murray

Currently unavailable

17X152

15

Washer

Part# 17X152

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.49

015X41MA

16

Nut

Part# 015X41MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

025X15MA

17

Screw

Part# 025X15MA (Superseded to 703950)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.75

690192E700

18

Guide, Belt

Part# 690192E700

OEM Warranty Repair Part for Murray

Currently unavailable

-----

19

Assembly, Steering *

Part# -----

Not available

092644601

20

Wheel & Tire Assembly

Part# 092644601

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $214.38

093064MA

--

Bearing, Wheel

Part# 093064MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

024393MA

21

Tire *

Part# 024393MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $94.44

407049MA

--

Tube

Part# 407049MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $52.85

024373MA

22

Stem, Valve

Part# 024373MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.94

17X194MA

23

Washer

Part# 17X194MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.53

17X114MA

24

Washer

Part# 17X114MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

030X49MA

25

Pin, Cotter

Part# 030X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

094618MA

26

Cap, Hub

Part# 094618MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03
