521613x89B - Yard King 52" Garden Tractor (2002)

52" Garden Tractor

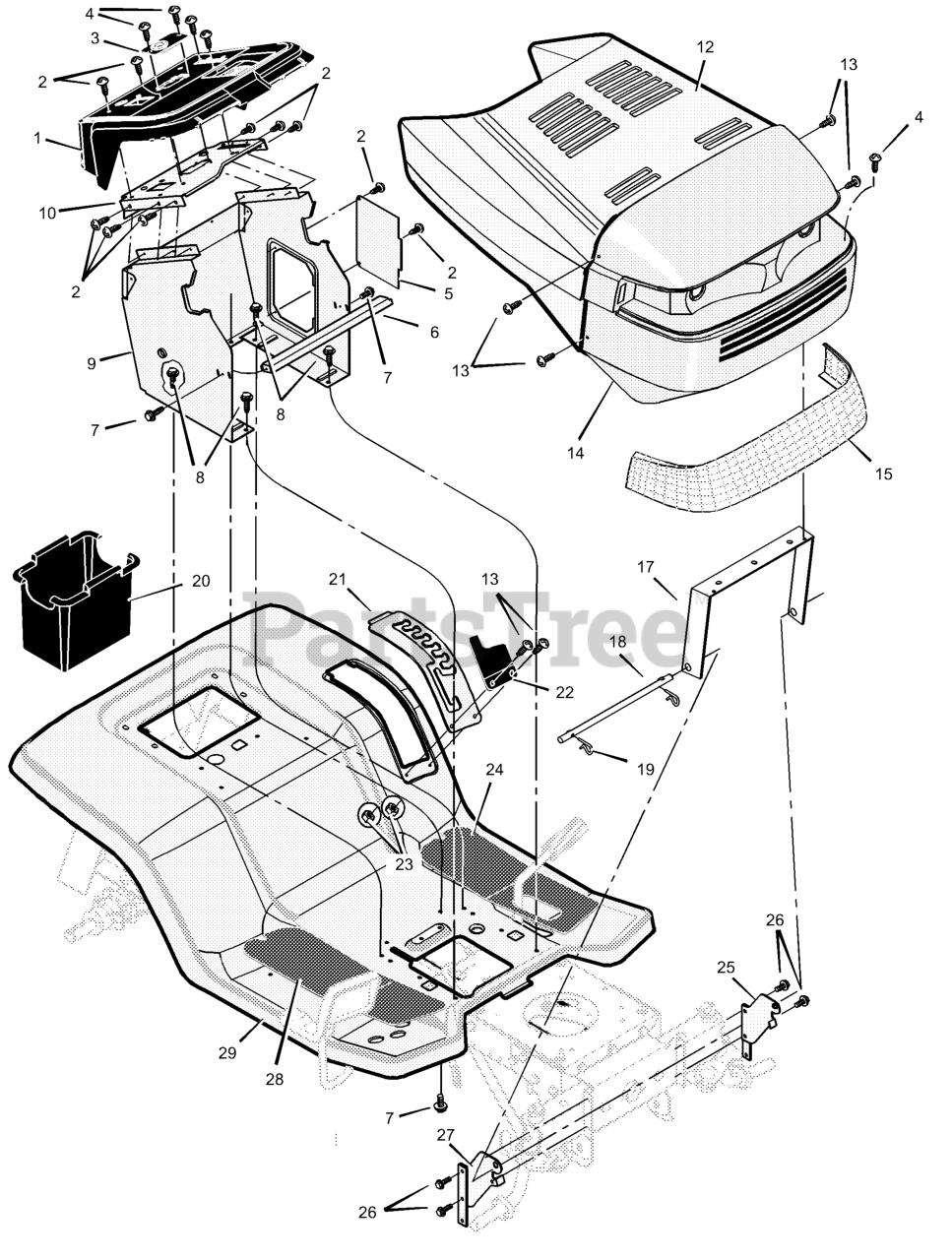

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Hood And Dash

  • Title
095034

1

Dash

Part# 095034

OEM Warranty Repair Part for Murray

Currently unavailable

26X270

2

Screw

Part# 26X270 (Superseded to 26X270MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

094219MA

3

Bearing, Upper Steering

Part# 094219MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.85

26X277MA

4

Screw

Part# 26X277MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.38

093007E700

5

Panel, Side Access

Part# 093007E700

OEM Warranty Repair Part for Murray

Currently unavailable

095081

6

Channel, Support

Part# 095081

OEM Warranty Repair Part for Murray

Currently unavailable

26X263MA

7

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

26X249MA

8

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

095082E701

9

Support, Dash

Part# 095082E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $117.89

094221E701MA

10

Plate, Dash

Part# 094221E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $32.43

093215E020

12

Hood

Part# 093215E020

OEM Warranty Repair Part for Murray

Currently unavailable

009X47MA

13

Bolt, Shoulder

Part# 009X47MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

093243

14

Grille

Part# 093243

Note: (Includes Lens)

OEM Warranty Repair Part for Murray

Currently unavailable

093139MA

15

Lens

Part# 093139MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $84.29

093190MA

17

Brace, Grille

Part# 093190MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $44.74

093137  Z

18

Rod, Pivot

Part# 093137 Z

OEM Warranty Repair Part for Murray

Currently unavailable

0031X4MA

19

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690424MA

20

Container, Battery

Part# 690424MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $34.24

094194E700

21

Plate, Lift Detent

Part# 094194E700

OEM Warranty Repair Part for Murray

Currently unavailable

094680MA

22

Cover

Part# 094680MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.78

015X81MA

23

Nut

Part# 015X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

094109

24

Mat, Left

Part# 094109

OEM Warranty Repair Part for Murray

Currently unavailable

690547E700

25

Support, Left Grille

Part# 690547E700

OEM Warranty Repair Part for Murray

Currently unavailable

26X249MA

26

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

690546E700

27

Support, Right Grille

Part# 690546E700

OEM Warranty Repair Part for Murray

Currently unavailable

094108

28

Mat, Right

Part# 094108

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.28

094150E020

29

Deck, Seat

Part# 094150E020

OEM Warranty Repair Part for Murray

Currently unavailable
