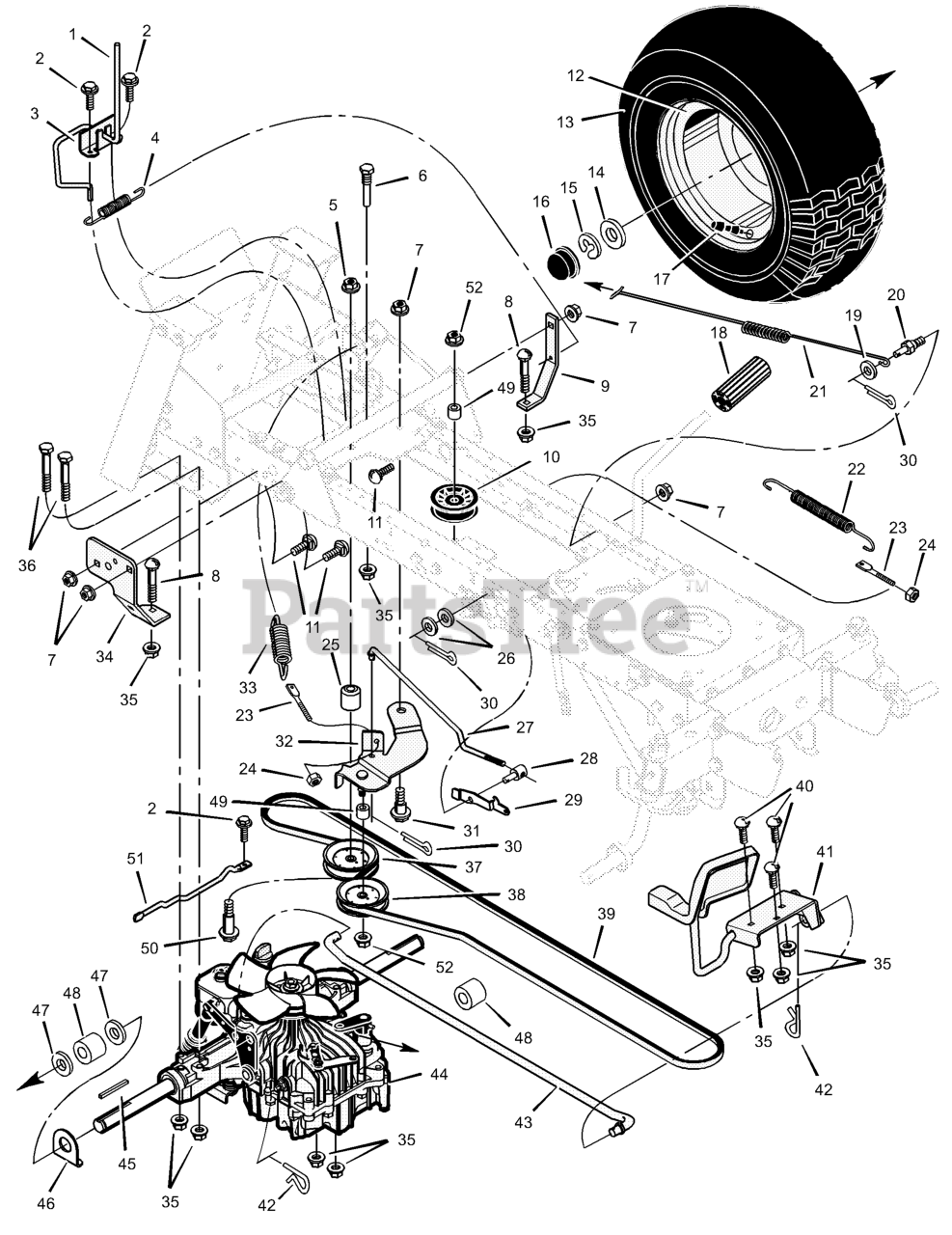

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Motion Drive

  • Title
690238

1

Rod, Cable

Part# 690238

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.39

26X249MA

2

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

1001214  Z

3

Bracket, Cable

Part# 1001214 Z

OEM Warranty Repair Part for Murray

Currently unavailable

165X136

4

Spring, Extension

Part# 165X136

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.49

015X41MA

5

Locknut

Part# 015X41MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

020619MA

6

Guide, Belt

Part# 020619MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.44

015X84MA

7

Locknut

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

002X84

8

Bolt, Carriage

Part# 002X84

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

690231E701

9

Bracket, Torque

Part# 690231E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $24.73

690393

10

Pulley, Idler

Part# 690393

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $27.53

002X78

11

Bolt, Carriage

Part# 002X78 (Superseded to 002X78MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

093263601

12

Assembly, Wheel and Tire

Part# 093263601

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $350.58

407920

13

Tire Only *

Part# 407920

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $350.58

17X193MA

14

Washer

Part# 17X193MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

011X23MA

15

E-Ring

Part# 011X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

094618MA

16

Cap, Hub

Part# 094618MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

024373MA

17

Stem, Valve

Part# 024373MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.94

021544MA

18

Pedal

Part# 021544MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.93

17X169MA

19

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.96

690243

20

Stud, Threaded

Part# 690243

OEM Warranty Repair Part for Murray

Not available

165X135

21

Spring, Extension

Part# 165X135

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.87

165X133MA

22

Spring - Extension

Part# 165X133MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.27

094042  Z

23

Stud, Spring Mount

Part# 094042 Z

Not available

015X79MA

24

Locknut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

690235

25

Spacer

Part# 690235 (Superseded to 690968)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.69

017X48MA

26

Washer

Part# 017X48MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.71

690234

27

Rod, Clutch

Part# 690234

OEM Warranty Repair Part for Murray

Currently unavailable

094815

28

Nut, Adjusting

Part# 094815

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.97

094045  Z

29

Latch, Parking Brake

Part# 094045 Z

OEM Warranty Repair Part for Murray

Currently unavailable

030X20MA

30

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.80

009X39MA

31

Bolt, Shoulder

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.43

690416  Z

32

Assembly, Idler Arm

Part# 690416 Z

OEM Warranty Repair Part for Murray

Currently unavailable

165X116MA

33

Spring, Extension

Part# 165X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.72

690240E701

34

Bracket, Torque

Part# 690240E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $45.09

015X88MA

35

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

01X155MA

36

Bolt

Part# 01X155MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.24

023339MA

37

Pulley, Backside Idler

Part# 023339MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $22.05

690410MA

38

Pulley, "V" Idler

Part# 690410MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.35

037X97MA

39

Belt, Drive

Part# 037X97MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $47.78

002X53MA

40

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690216E700

41

Assembly, Pedal

Part# 690216E700

OEM Warranty Repair Part for Murray

Currently unavailable

0031X4MA

42

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690241

43

Rod, Hydro Control

Part# 690241

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.31

-----

44

Transaxle, Hydro **

Part# -----

Not available

024039MA

45

Key, Square

Part# 024039MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.79

690242E701

46

Washer, Thrust

Part# 690242E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.69

17X118  Z

47

Washer

Part# 17X118 Z (Superseded to 17X118ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

690419  Z

48

Spacer

Part# 690419 Z

OEM Warranty Repair Part for Murray

Currently unavailable

690369MA

49

Spacer

Part# 690369MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

01X165

50

Bolt

Part# 01X165

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

690392

51

Guide, Belt

Part# 690392

OEM Warranty Repair Part for Murray

Not available

015X98MA

52

Locknut

Part# 015X98MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70
