521613x89B - Yard King 52" Garden Tractor (2002)

52" Garden Tractor

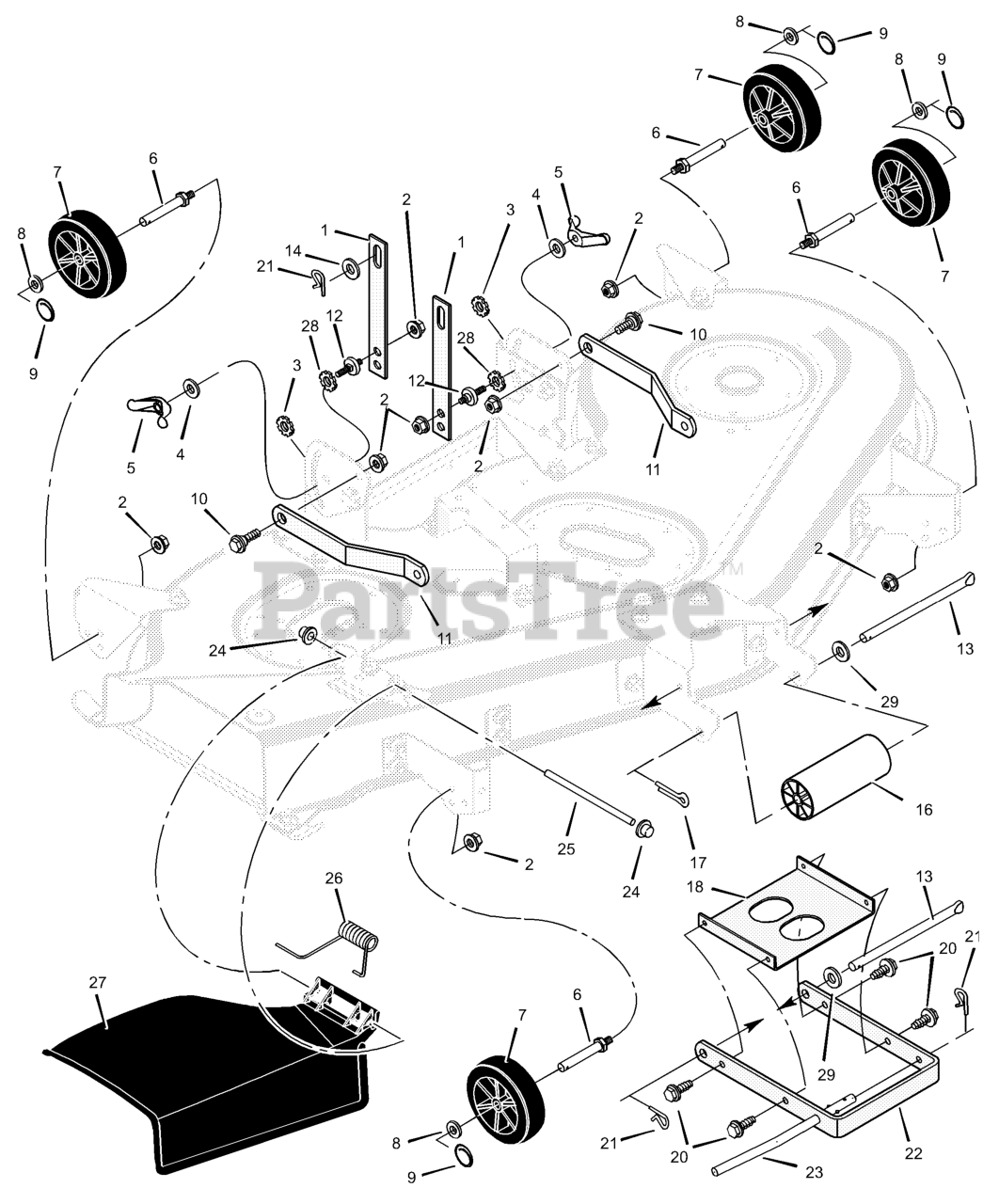

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Mower Housing Suspension

  • Title
690550E700

1

Link, Lift

Part# 690550E700

OEM Warranty Repair Part for Murray

Currently unavailable

015X84MA

2

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

019X44MA

3

Washer

Part# 019X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

017X45MA

4

Washer

Part# 017X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

095004MA

5

Wingnut

Part# 095004MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.26

094025MA

6

Bolt, Gage Wheel

Part# 094025MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.98

092683MA

7

Wheel, Gage

Part# 092683MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.43

17X103MA

8

Washer

Part# 17X103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

031X11MA

9

Pin, Hair

Part# 031X11MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

009X52MA

10

Bolt, Shoulder

Part# 009X52MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.78

094055E700

11

Bracket, Rear Suspension

Part# 094055E700

OEM Warranty Repair Part for Murray

Currently unavailable

095194

12

Pin, Hanger

Part# 095194 (Superseded to 095194MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.38

094996MA

13

Rod, Deck Suspension

Part# 094996MA

OEM Warranty Repair Part for Murray

Not available

017X91  Z

14

Washer

Part# 017X91 Z

OEM Warranty Repair Part for Murray

Currently unavailable

1001252MA

16

Roller

Part# 1001252MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.76

030X49MA

17

Pin, Cotter

Part# 030X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

094604E700

18

Stiffener

Part# 094604E700

OEM Warranty Repair Part for Murray

Currently unavailable

26X249MA

20

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

0031X4MA

21

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690539E700

22

Hanger, Front

Part# 690539E700

OEM Warranty Repair Part for Murray

Currently unavailable

094158  Z

23

Rod, Front Hanger

Part# 094158 Z

Not available

028X23MA

24

Cap, Push

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

092159  Z

25

Rod, Deflector

Part# 092159 Z

Not available

166X34MA

26

Spring

Part# 166X34MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.59

092100MA

27

Deflector, Chute

Part# 092100MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $62.71

019X44MA

28

Lockwasher

Part# 019X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

17X103MA

29

Washer

Part# 17X103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33
