521613x89B - Yard King 52" Garden Tractor (2002)

52" Garden Tractor

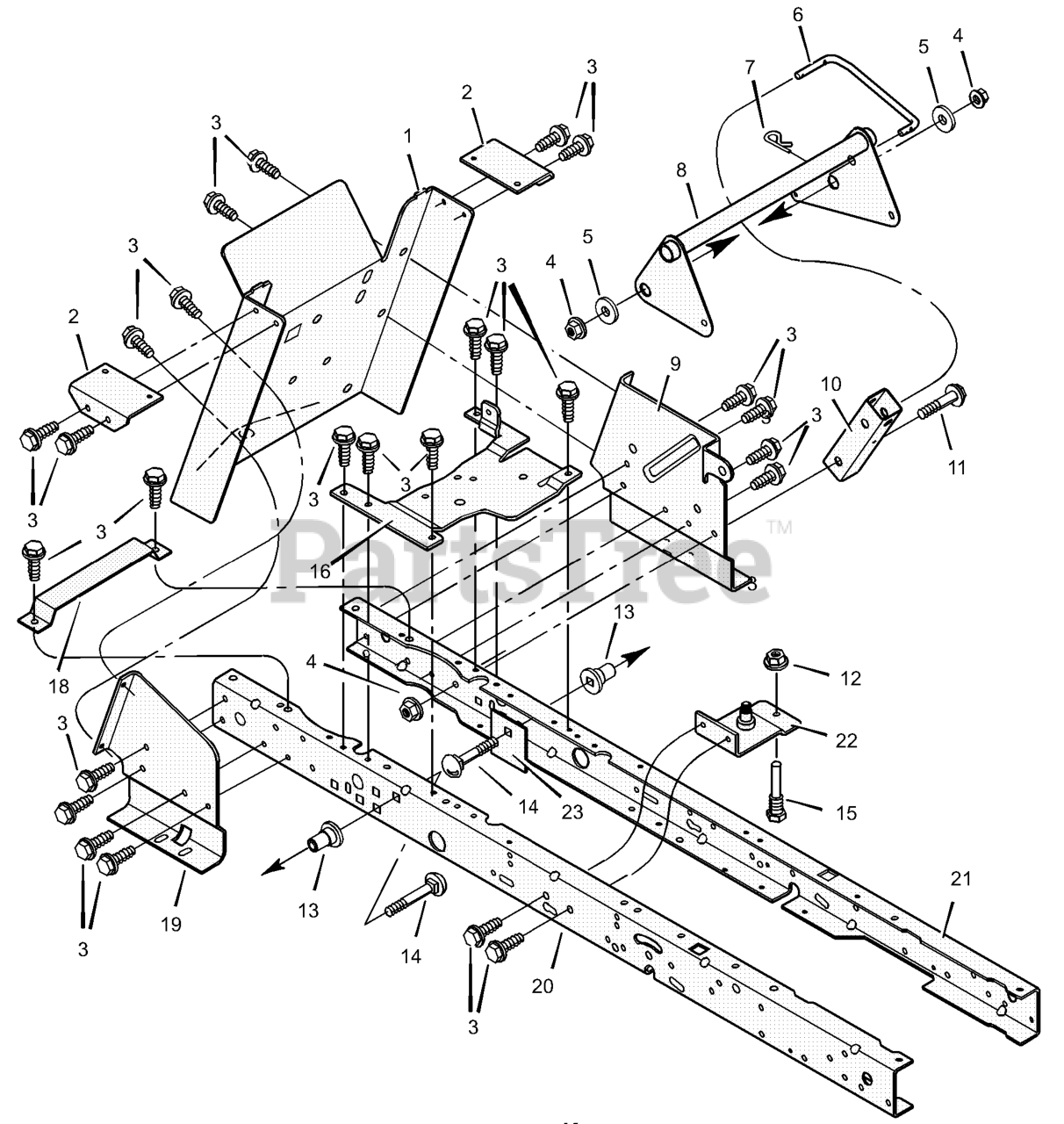

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Rear Frame Assembly

  • Title
690094E701

1

Frame, Rear Hitch

Part# 690094E701

OEM Warranty Repair Part for Murray

Not available

690077E700

2

Bracket, Seat Deck

Part# 690077E700

OEM Warranty Repair Part for Murray

Not available

26X249MA

3

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

015X84MA

4

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X168ZMA

5

Washer

Part# 17X168ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.73

690122E700

6

Link, Lift Handle

Part# 690122E700

OEM Warranty Repair Part for Murray

Currently unavailable

0031X4MA

7

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690363E700

8

Assembly, Lifter

Part# 690363E700

OEM Warranty Repair Part for Murray

Not available

690065E700

9

Bracket, Left Transaxle

Part# 690065E700

OEM Warranty Repair Part for Murray

Currently unavailable

094015E701MA

10

Bracket, Lift Pivot

Part# 094015E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $64.69

009X53MA

11

Bolt, Shoulder

Part# 009X53MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.72

015X79MA

12

Nut

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

690151MA

13

Spacer, Lifter

Part# 690151MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.54

002X85MA

14

Bolt, Carriage

Part# 002X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

094384MA

15

Guide, Belt

Part# 094384MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

690233E701

16

Bracket, Stationary Idler

Part# 690233E701

OEM Warranty Repair Part for Murray

Currently unavailable

690482E701

18

Plate

Part# 690482E701

OEM Warranty Repair Part for Murray

Not available

690064E700

19

Bracket, Right Transaxle

Part# 690064E700

OEM Warranty Repair Part for Murray

Not available

1001268E701

20

Frame, Right

Part# 1001268E701

OEM Warranty Repair Part for Murray

Not available

1001269E701MA

21

Frame, Left

Part# 1001269E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $85.81

690417E701

22

Bracket, Idler

Part# 690417E701

OEM Warranty Repair Part for Murray

Currently unavailable

690389E700

23

Plate, Stiffening

Part# 690389E700

OEM Warranty Repair Part for Murray

Not available
