521613x89B - Yard King 52" Garden Tractor (2002)

52" Garden Tractor

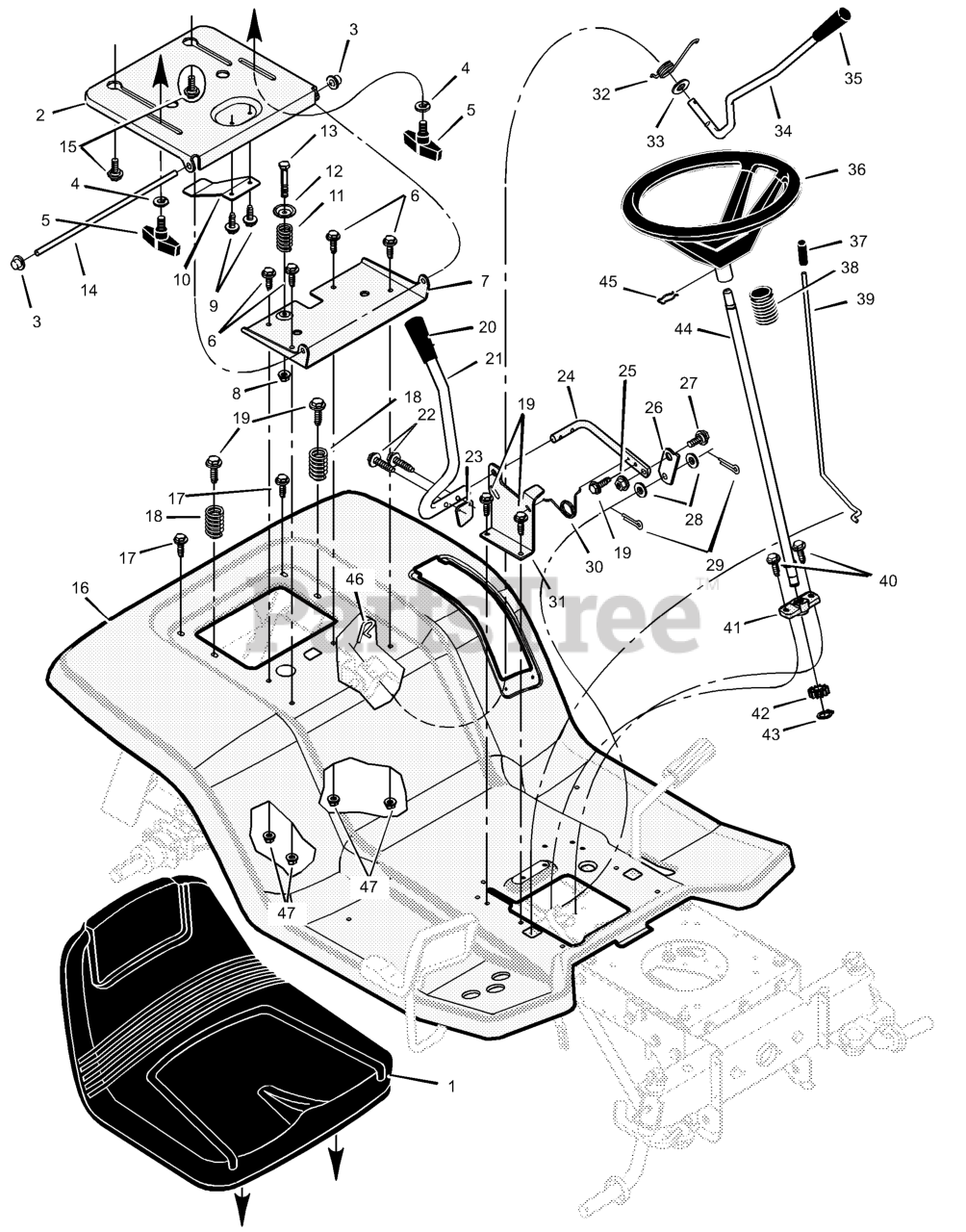

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Seat Deck

  • Title
95236

1

Seat

Part# 95236

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $266.82

094154E700

2

Support, Seat

Part# 094154E700

OEM Warranty Repair Part for Murray

Currently unavailable

028X23MA

3

Push-On Cap

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

017X47MA

4

Washer

Part# 017X47MA

OEM Warranty Repair Part for Murray

Not available

1001054MA

5

Bolt, Wing

Part# 1001054MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.67

001X45MA

6

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.02

094153E700MA

7

Bracket, Pivot

Part# 094153E700MA (Superseded to 1001648E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $38.38

015X89MA

8

Nut

Part# 015X89MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

26X229MA

9

Screw

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.03

094057MA

10

Spring, Leaf

Part# 094057MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.49

164X31

11

Spring

Part# 164X31 (Superseded to 164X31MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.83

094155  Z

12

Washer, Cup

Part# 094155 Z

OEM Warranty Repair Part for Murray

Currently unavailable

009X55MA

13

Bolt

Part# 009X55MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

094156  Z

14

Rod, Pivot

Part# 094156 Z

Not available

009X56MA

15

Bolt, Shoulder

Part# 009X56MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

094150E020

16

Deck, Seat

Part# 094150E020

OEM Warranty Repair Part for Murray

Currently unavailable

26X263MA

17

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

164X30MA

18

Spring

Part# 164X30MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $12.83

26X249MA

19

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

092698MA

20

Grip

Part# 092698MA (Superseded to 1753233YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.58

690050MA

21

Handle, PTO

Part# 690050MA

OEM Warranty Repair Part for Murray

Not available

0025X3MA

22

Screw, Hex

Part# 0025X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

094022  Z

23

Paddle, Switch

Part# 094022 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094017  Z

24

Lever, PTO

Part# 094017 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X84MA

25

Nut

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

094004  Z

26

Link, PTO

Part# 094004 Z

OEM Warranty Repair Part for Murray

Currently unavailable

009X39MA

27

Shoulder, Bolt

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.43

017X57MA

28

Washer

Part# 017X57MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

030X20MA

29

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.80

166X39MA

30

Spring

Part# 166X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.56

094018E700

31

Bracket, PTO

Part# 094018E700

OEM Warranty Repair Part for Murray

Currently unavailable

166X40MA

32

Spring

Part# 166X40MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.61

17X103MA

33

Washer

Part# 17X103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

690533MA

34

Handle, Lift

Part# 690533MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $29.87

092697MA

35

Grip

Part# 092697MA (Superseded to 1753233YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.58

094806

36

Wheel, Steering

Part# 094806

OEM Warranty Repair Part for Murray

Currently unavailable

091079MA

37

Grip

Part# 091079MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

092059MA

38

Bellows

Part# 092059MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.65

095005  Z

39

Rod, Parking Brake

Part# 095005 Z

OEM Warranty Repair Part for Murray

Currently unavailable

26X267MA

40

Screw

Part# 26X267MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.79

094124MA

41

Bearing, Lower

Part# 094124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.97

690183MA

42

Gear, Pinion

Part# 690183MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.29

011X25MA

43

E-Ring

Part# 011X25MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

690626

44

Shaft, Steering

Part# 690626

OEM Warranty Repair Part for Murray

Not available

094131MA

45

Clip, Retainer

Part# 094131MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

0031X4MA

46

Pin, Cotter

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

15X123MA

47

Nut

Part# 15X123MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

F-020748L

--

Manual and Parts List

Part# F-020748L

OEM Warranty Repair Part for Murray

Currently unavailable
