521613x89B - Yard King 52" Garden Tractor (2002)

52" Garden Tractor

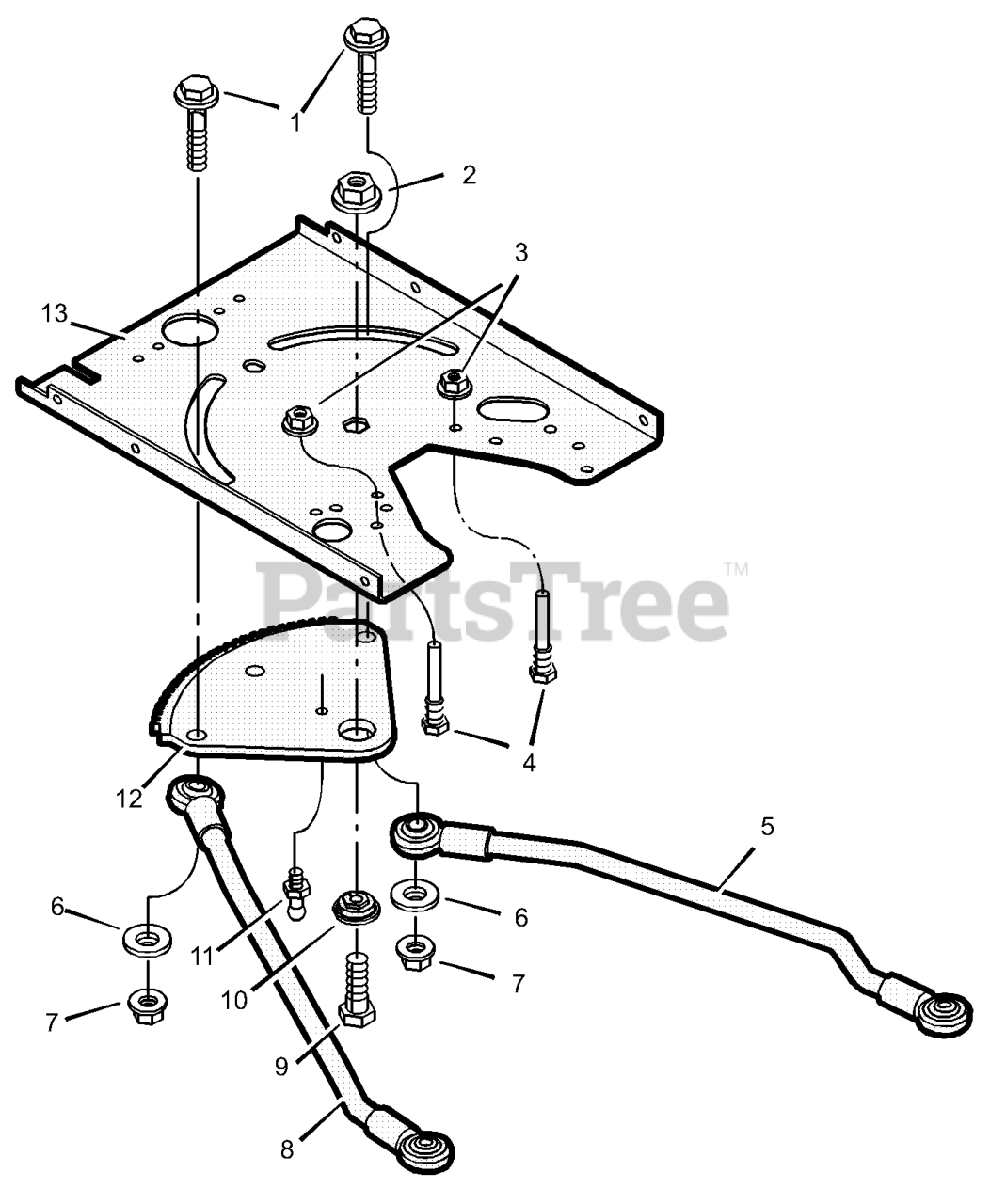

521613x89B - Yard King 52" Garden Tractor (2002) > Parts Diagrams (12) > Sector Gear

  • Title
009X62MA

1

Bolt, Shoulder

Part# 009X62MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.56

15X111MA

2

Nut, Lock

Part# 15X111MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

015X79MA

3

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

094384MA

4

Guide, Screw

Part# 094384MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

690146E700

5

Link, Left Drag

Part# 690146E700

OEM Warranty Repair Part for Murray

Currently unavailable

17X168ZMA

6

Washer

Part# 17X168ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.73

015X84MA

7

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

690145E700

8

Link, Right Drag

Part# 690145E700

OEM Warranty Repair Part for Murray

Currently unavailable

001X84MA

9

Bolt

Part# 001X84MA (Superseded to 703585)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.08

690180MA

10

Bearing, Sector Gear

Part# 690180MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.85

092530MA

11

Fitting, Lub

Part# 092530MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.49

690147MA

12

Gear, Sector

Part# 690147MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $58.63

1001121E701MA

13

Plate, Steering

Part# 1001121E701MA (Superseded to 7300867ZMA)

OEM Warranty Repair Part for Murray

Not available
