521E (1695702) - Snapper 21" Snow Thrower, 5hp Auger and Control Group Parts Diagram

21" Snow Thrower, 5hp

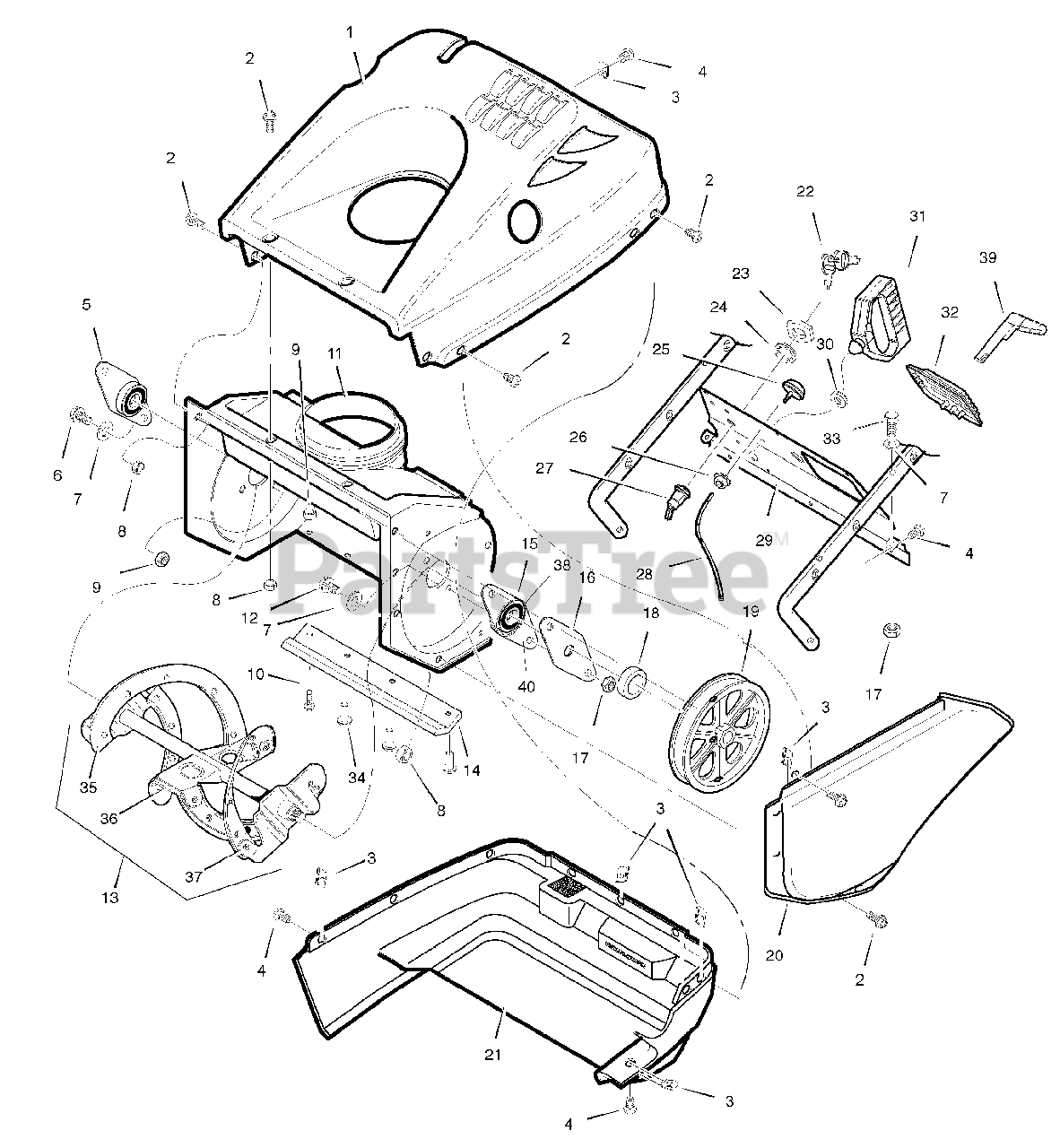

Auger and Control Group Parts Diagram

  • Title

1

Snapper 1737674

COVER, Top, Red
(Superseded to 1740057MA)

$317.99

$

Usually ships in 2-12 days

0

2

Snapper 721923

SCREW, #10-24 x 1/2
(Superseded to 12342MA)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 724571

NUT, Speed, 1/4-10
(Superseded to 578109MA)

$6.49

$

In Stock, Qty 8

0

4

Snapper 723283

SCREW, 1/4-14 x 3/4
(Superseded to 313685MA)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 724547

FLANGE BEARING
(Superseded to 577023MA)

$5.99

$

In Stock, only 3 left!

0

6

Snapper 725304

SCREW, 1/4-20 x 1
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 725330

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 723243

NUT, Hex, Control Lock, #10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 722398

NUT, Hex, Control Lock, 1/4-20
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 723010

SCREW, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

11

Snapper 723841

AUGER HOUSING ASSEMBLY
(Superseded to 340091MA)

$137.99

$

In Stock, only 1 left!

0

12

Snapper 728095

SCREW, 1/4-20 x 5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

13

Snapper 723527

AUGER ASSEMBLY, Complete
(Superseded to 327072MA)

Note: (Includes Ref. Nos. 35, 36 & 37)

$185.99

$

In Stock, only 1 left!

0

14

Snapper 724453

BLADE, Scraper
(Superseded to 55323MA)

$35.99

$

In Stock, only 1 left!

0

15

Snapper 724753

ASSEMBLY, Bearing & Plate
(Superseded to 583459MA)

$27.99

$

Usually ships in 2-12 days

0

16

Snapper 723659

PLATE & RETAINER BEARING ASSEMBLY
(Superseded to 334287MA)

$7.49

$

In Stock, only 1 left!

0

17

Snapper 725429

NUT, Hex, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

18

Snapper 724570

SPACER, Sleeve
(Superseded to 578101MA)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 723622

PULLEY, 6" OD
(Superseded to 333446MA)

$22.99

$

Usually ships in 2-12 days

0

20

Snapper 723840

COVER, Belt
(Superseded to 340089MA)

$58.99

$

Usually ships in 2-12 days

0

21

Snapper 722253

COVER, Bottom
(Superseded to 1501705MA)

$131.99

$

Usually ships in 2-12 days

0

22

Snapper 691959

SET, Key

$7.99

$

In Stock, Qty 9

0

23

Snapper 722906

NUT, 5/8-32
(Superseded to 300193MA)

$5.49

$

Usually ships in 2-12 days

0

24

Snapper 727970

WASHER
(Superseded to 313683MA)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 394281S

PRIMER, Carburetor

$16.99

$

Usually ships in 2-12 days

0

26

Snapper 727479

NUT, Hex, 1/-20
(Superseded to 271172MA)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 724504

SWITCH, Ignition
(Superseded to 56992MA)

$14.99

$

Usually ships in 2-12 days

0

28

Snapper 723672

HOSE, Primer 9.5"
(Superseded to 335507MA)

$7.99

$

Usually ships in 2-12 days

0

29

Snapper 729751

CONTROL PANEL
(Superseded to 1501706MA)

$83.99

$

Usually ships in 2-12 days

0

30

Snapper 724543

GROMMET & WASHER, Rope
(Superseded to 57587MA)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 699334

GRIP, Starter Rope

$13.99

$

In Stock, only 1 left!

0

32

Snapper 722327

PANEL, Spark Plug Access
(Superseded to 1501878MA)

$14.99

$

Usually ships in 2-12 days

0

33

Snapper 723280

SCREW, 1/4-20 x 1-1/4
(Superseded to 313674MA)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 728090

RIVET, Offset
(Superseded to 577707MA)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper 723006

BLADE, Auger
(Superseded to 302565MA)

$28.99

$

In Stock, only 2 left!

0

36

Snapper 723675

BLADE, Center
(Superseded to 335992MA)

$8.99

$

In Stock, Qty 8

0

37

Snapper 724313

RIVET, Offset
(Superseded to 49838MA)

$4.49

$

In Stock, Qty 20+

0

38

Snapper 724001

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

39

Snapper 791534

KNOB, Choke Shaft
(Superseded to 790553)

$19.99

$

In Stock, only 4 left!

0

40

Snapper 724638

RETAINER, Bearing
(Superseded to 580251MA)

$16.99

$

Usually ships in 2-12 days

0
