521E (1695702) - Snapper 21" Snow Thrower, 5hp Engine and Frame Group Parts Diagram

21" Snow Thrower, 5hp

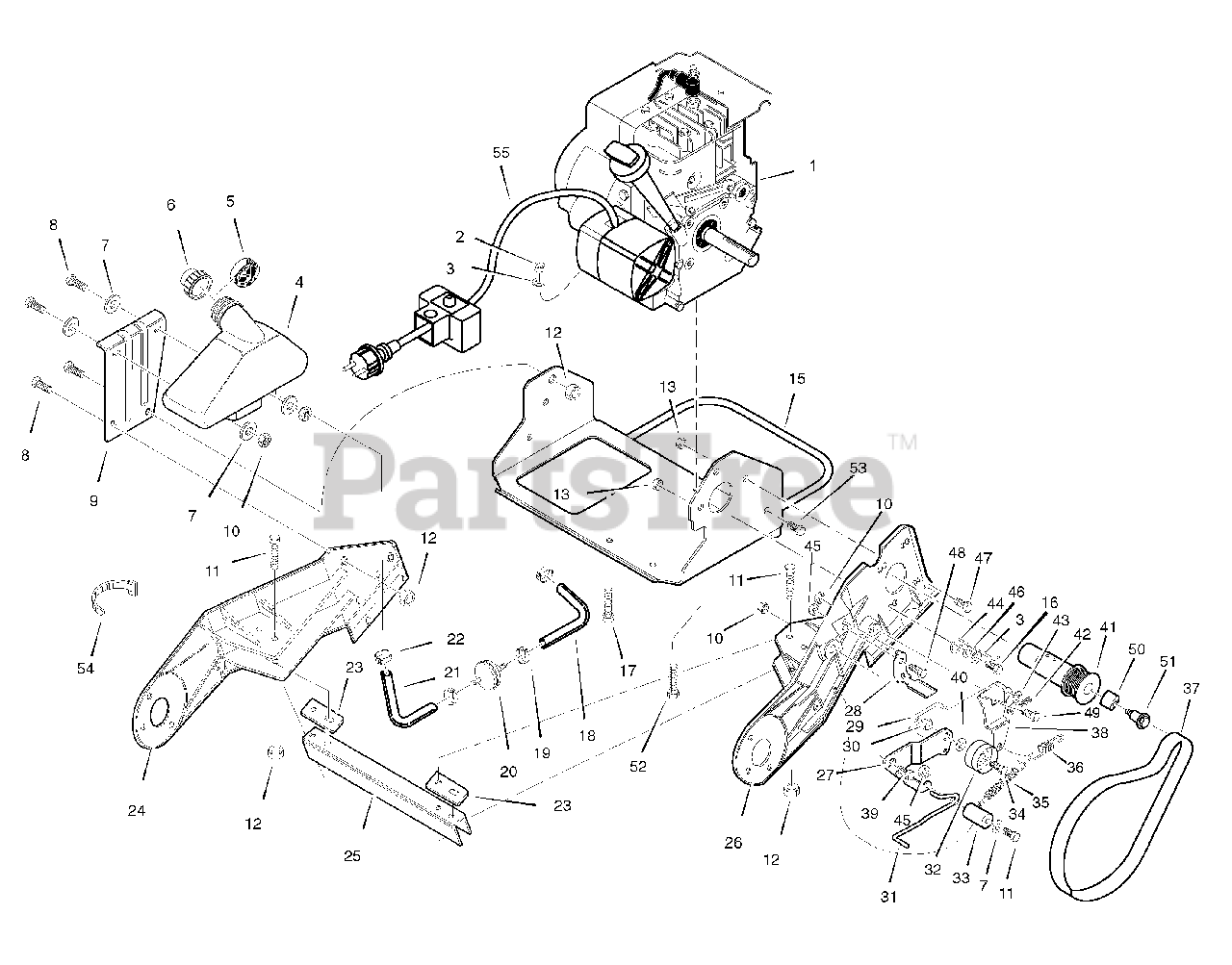

Engine and Frame Group Parts Diagram

  • Title

1

Snapper 09A413-0202-E1

* ENGINE

$

$

Not available

2

Snapper 725320

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 725326

WASHER, Split Lock, 5/16 x 37/64
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 723628

TANK, Fuel 1.5QT
(Superseded to 333739MA)

$120.99

$

Usually ships in 2-12 days

0

5

Snapper 728175

RING, Foam, Fuel Tank
(Superseded to 762224MA)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 722262

CAP, Fuel
(Superseded to 692046)

$5.49

$

In Stock, Qty 8

0

7

Snapper 725330

WASHER, Flat
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 723010

SCREW, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

9

Snapper 728587

BRACKET, Fuel Tank
(Superseded to 333749E701MA)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 722892

NUT, Hex, 8-32
(Superseded to 271163MA)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 727940

SCREW, 1/4-20 x 2
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 728134

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

13

Snapper 725408

NUT, Hex, Control Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

15

Snapper 729752

ASSEMBLY, Cradle
(Superseded to 1501744E701MA)

$165.99

$

Usually ships in 2-12 days

0

16

Snapper 722633

BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

17

Snapper 720025

BOLT, Engine Mount
(Superseded to 001X81MA)

$3.49

$

In Stock, only 2 left!

0

18

Snapper 791893

HOSE, FUEL, 12"

Note: (CUT TO 6" LENGTH)

$21.99

$

Usually ships in 2-12 days

0

19

Snapper 723462

CLAMP, Fuel Line
(Superseded to 323387MA)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 298090

FILTER, Fuel
(Superseded to 298090S)

$

$

Not available

21

Snapper 791893

HOSE, Fuel, 12"

Note: (CUT TO 8" LENGTH)

$21.99

$

Usually ships in 2-12 days

0

22

Snapper 724068

CLAMP, Hose Screw
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

23

Snapper 727517

PLATE, Bolting Support
(Superseded to 335351MA)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 722320

FRAME, R.H.
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

25

Snapper 726302

CHANNEL, Frame Support
(Superseded to 333987MA)

$23.99

$

Usually ships in 2-12 days

0

26

Snapper 722321

FRAME, L.H.
(Superseded to 1501872E701MA)

$

$

Not available

27

Snapper 1741727

BRACKET, Idler Arm
(Superseded to 1741727YP)

$10.99

$

Usually ships in 2-12 days

0

28

Snapper 723648

BRAKE PAD
(Superseded to 333970MA)

$5.49

$

Usually ships in 2-12 days

0

29

Snapper 723256

ROD, Clutch Linkage
(Superseded to 313436MA)

$5.49

$

Usually ships in 2-12 days

0

30

Snapper 724840

NUT, Control Lock, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

31

Snapper 722046

WIRE, Brake
(Superseded to 1501009MA)

$9.99

$

In Stock, only 1 left!

0

32

Snapper 724085

PULLEY, Idler
(Superseded to 48924MA)

$31.99

$

Usually ships in 2-12 days

0

33

Snapper 729335

ROLLER, Pinch
(Superseded to 1501010MA)

$6.49

$

Usually ships in 2-12 days

0

34

Snapper 723012

SCREW, 3/8-16 x 1-1/2
(Superseded to 302637MA)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper 723264

SPRING, Extension, 3/8 OD x 2-1/2
(Superseded to 313473MA)

$6.49

$

In Stock, only 1 left!

0

36

Snapper 723263

SPRING, Extension, 3/4 OD x 2
(Superseded to 313471MA)

$4.99

$

In Stock, only 1 left!

0

37

Snapper 727984

BELT, 35-9/64"
(Superseded to 333721MA)

$

$

Not available

38

Snapper 727078

ARM, Idler Pivot
(Superseded to 313444MA)

$

$

Not available

39

Snapper 723625

BOLT, Shoulder, 5/16-18 x 1/2
(Superseded to 333594MA)

$20.99

$

In Stock, only 2 left!

0

40

Snapper 722944

WASHER, Flat
(Superseded to 301188MA)

$2.99

$

Usually ships in 2-12 days

0

41

Snapper 722331

PULLEY, Engine
(Superseded to 1501908MA)

$28.99

$

Usually ships in 2-12 days

0

42

Snapper 727500

PIN, Cotter
(Superseded to 121223MA)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 723979

WASHER, Flat, #8
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 723651

GUIDE, Belt
(Superseded to 334079MA)

$7.99

$

Usually ships in 2-12 days

0

45

Snapper 725429

NUT, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

46

Snapper 725331

WASHER, 11/32 x 11/16 OD
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

47

Snapper 727291

SCREW, 5/16-18 x 5/8
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 728095

SCREW, 1/4-20 x 5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

49

Snapper 723237

SCREW, 8-32 X 3
(Superseded to 311633MA)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper 1740037

SPACER, Drive Pulley
(Superseded to 1740037MA)

$7.99

$

Usually ships in 2-12 days

0

51

Snapper 722330

BOLT, Engine Pulley
(Superseded to 1501907MA)

$9.99

$

Usually ships in 2-12 days

0

52

Snapper 727947

BOLT, 5/16-18 x 7/8
(Superseded to 1X216MA)

$3.99

$

Usually ships in 2-12 days

0

53

Snapper 723210

SCREW, 1/4-20 x 5/8
(Superseded to 310169MA)

$4.49

$

In Stock, only 1 left!

0

54

Snapper 727633

TIE, Cable
(Superseded to 57444MA)

$3.49

$

Usually ships in 2-12 days

0

55

Snapper 724865

CORD, Electric, 10FT, 220V
(Superseded to 6219MA)

$40.99

$

In Stock, only 3 left!

0
