522 (590-522-150) - Cub Cadet Cloth Collector for 32", 36", 48", 52" Fab Decks att2 Cloth Collector 2007 & Before Parts Diagram

Cloth Collector for 32", 36", 48", 52" Fab Decks

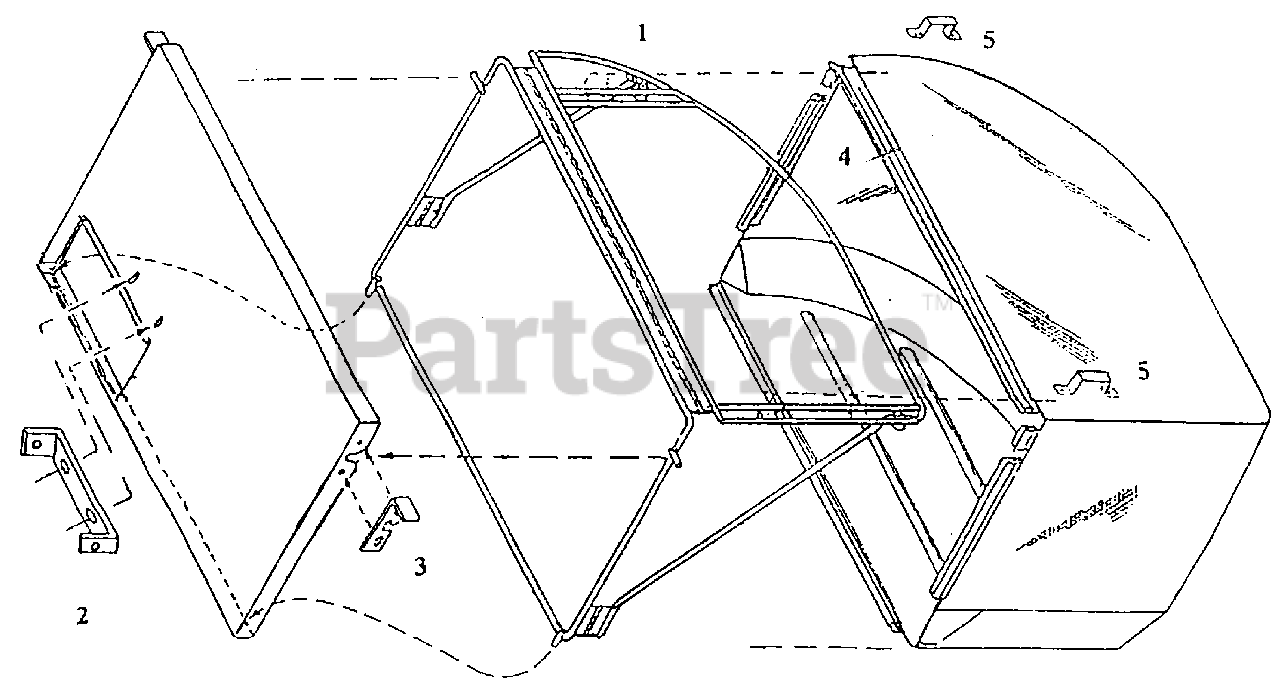

Cloth Collector 2007 & Before Parts Diagram

  • Title

1

Cub Cadet 01003986

Frame Assembly

$

$

Not available

2

Cub Cadet 01003089

Bolt on Bracket

$

$

Not available

3

Cub Cadet 01003985

Bag Release Latch

$

$

Not available

4

Cub Cadet 01003221

Cloth Bag

$

$

Not available

5

Cub Cadet 01004014

Handle
(Superseded to 01004013-0637)

$

$

Not available

1/4-20 x 1/2" Capscrews

1/4-20 x 1/2" Capscrews

$

$

Not available

1/4-20 x 1" Capscrews

1/4-20 x 1" Capscrews

$

$

Not available

1/4-20 Hex Nuts

1/4-20 Hex Nuts

$

$

Not available

1/4" Flat Washers

1/4" Flat Washers

$

$

Not available

#10-32 x 5/8" Capscrews

#10-32 x 5/8" Capscrews

$

$

Not available

#10-32 Hex Nuts

#10-32 Hex Nuts

$

$

Not available

#10-32 x 5/8" Panhead

#10-32 x 5/8" Panhead

$

$

Not available

1/4" Spring Washers

1/4" Spring Washers

$

$

Not available
