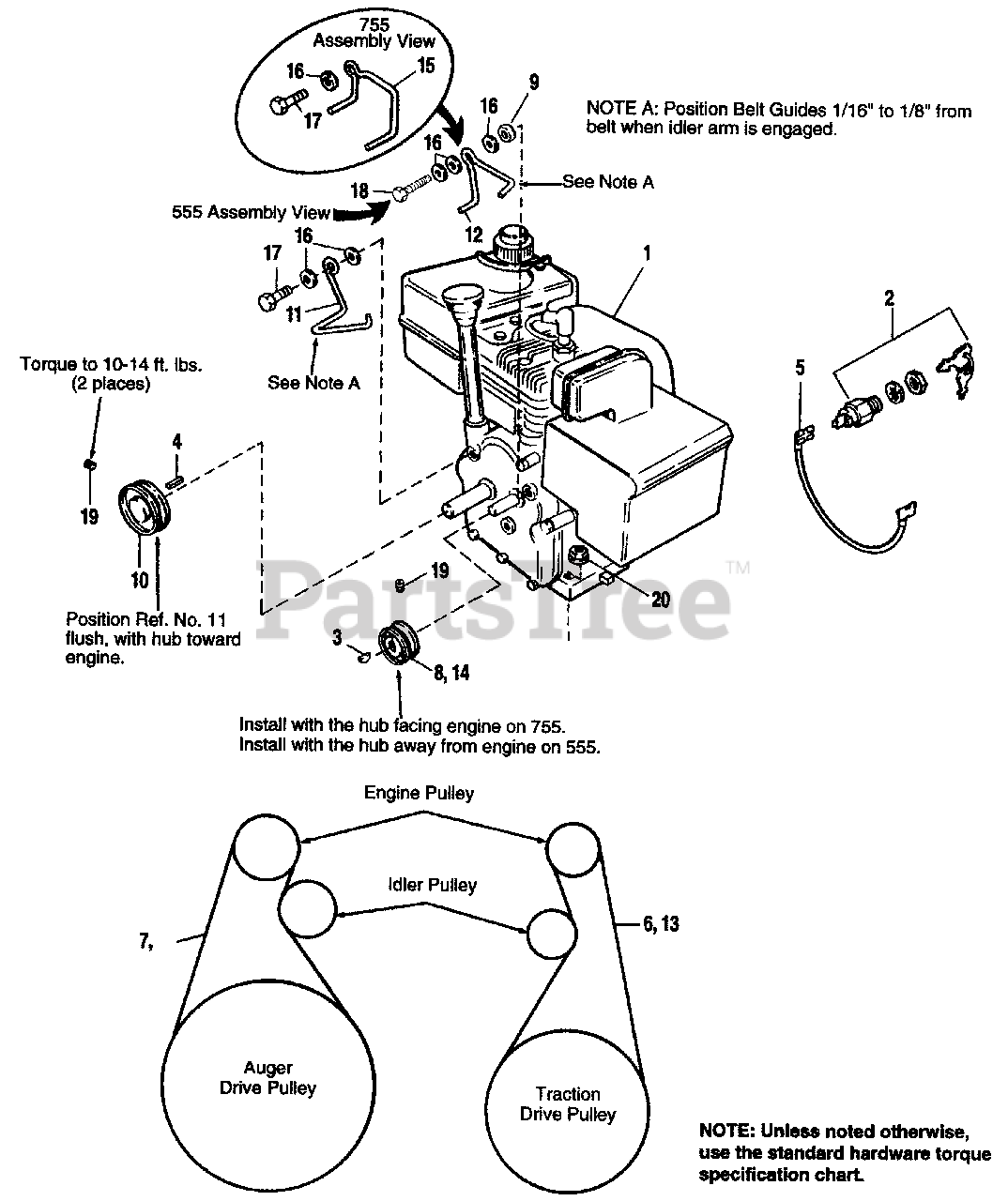

522 (71691412) - Allis-Chalmers 22" Snow Thrower, 5hp Engine Group Parts Diagram

22" Snow Thrower, 5hp

Engine Group Parts Diagram

  • Title

1

ENGINE, Tecumseh

$

$

Not available

2

SWITCH ASSY., Ignition w/keys

$

$

Not available

3

Simplicity 2805121SM

KEY, Woodruff, 1/8 x 5/8

$2.99

$

In Stock, only 1 left!

0

4

Simplicity 2805850SM

KEY, Sq., 3/16 x 3/16 x 1

$2.49

$

Usually ships in 2-12 days

0

5

Simplicity 1667700

GROUND WIRE

$

$

Not available

6

Simplicity 1674308SM

BELT, Traction Drive (5 HP only)

$23.99

$

In Stock, only 3 left!

0

7

Simplicity 1674312SM

BELT, Auger Drive

$28.99

$

In Stock, only 3 left!

0

8

Simplicity 1674325SM

PULLEY, Idler (5 HP only)

$29.99

$

Usually ships in 2-12 days

0

9

Simplicity 1675339SM

SPACER (5 HP only)

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 1674328

PULLEY, Engine

$

$

Not available

11

Simplicity 1677924SM

GUIDE, Belt

$19.99

$

Usually ships in 2-12 days

0

12

Simplicity 1677925SM

GUIDE, Belt (5 HP only)

$

$

Not available

13

Simplicity 1678600SM

BELT, Traction Drive (7 HP only)

$24.99

$

In Stock, only 2 left!

0

14

Simplicity 1678692SM

PULLEY, Traction Drive (7 HP only)

$56.99

$

Usually ships in 2-12 days

0

15

Simplicity 1678925SM

GUIDE, Belt (7 HP Only)

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 1919326SM

WASHER, 5/16 (Qty. 3 used on 5 HP)

$4.49

$

In Stock, Qty 18

0

17

Simplicity 1921515SM

CAPSCREW, Hex, 5/16-24 x 3/4 (Qty. 1 used on 5 HP)

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921962SM

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960619SM

SETSCREW, Socket Hd., 5/16-18 x 5/16 (Qty. 1 used on Mfg. No. 1691414)

$3.49

$

In Stock, only 2 left!

0

20

Simplicity 1931277SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+
