522 E (1695445) - John Deere 22" Snow Thrower (2008-11) Body Covering Parts Diagram

22" Snow Thrower

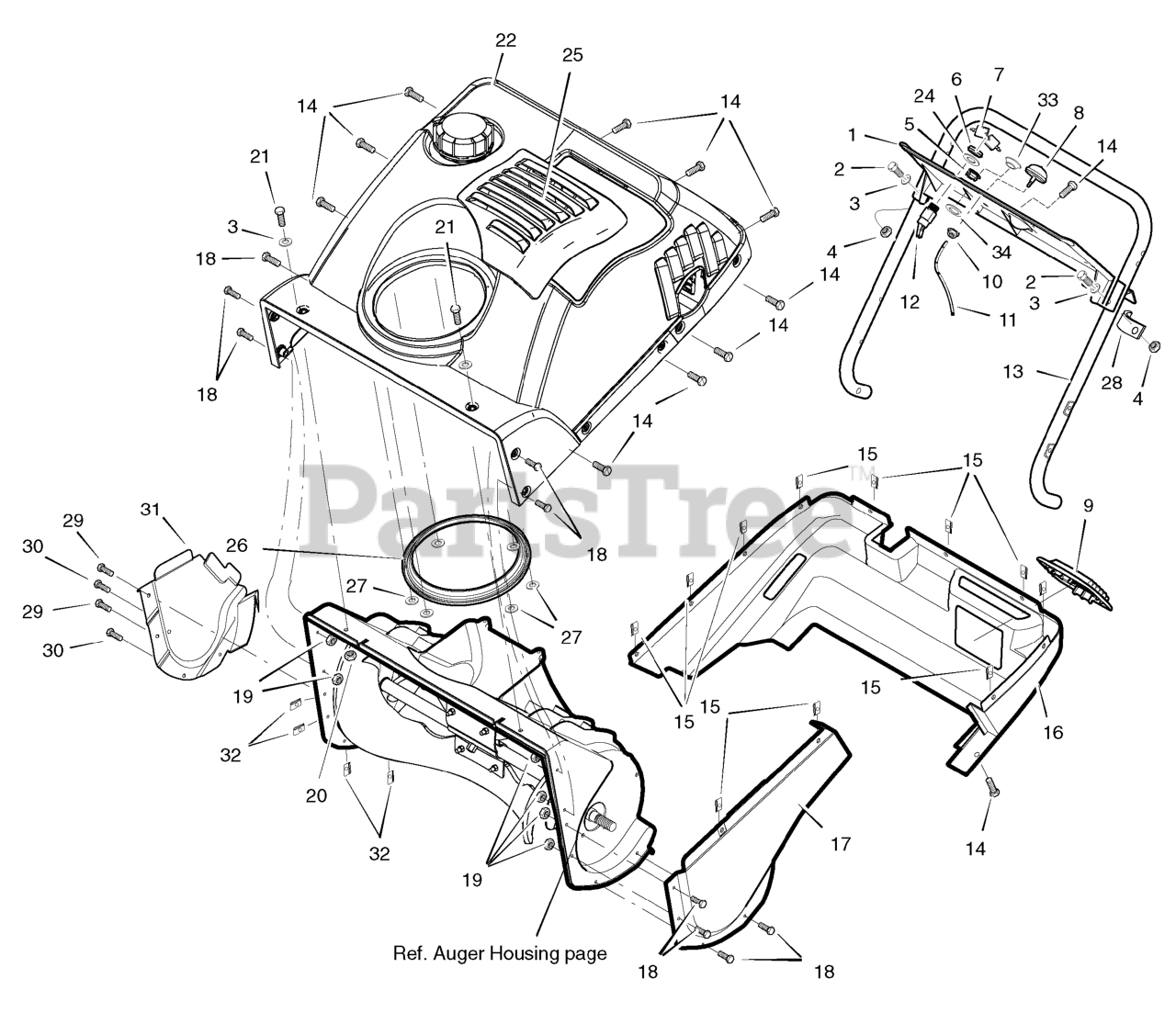

Body Covering Parts Diagram

  • Title

1

Murray 1740006MA

PANEL, Control

$73.99

$

Usually ships in 2-12 days

0

2

Murray 313674MA

SCREW, 1/4 - 20 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

3

Murray 71067MA

WASHER

$4.49

$

In Stock, only 1 left!

0

4

Murray 15X143MA

NUT, 1/4 - 20

$4.99

$

In Stock, only 4 left!

0

5

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

6

Murray 300193MA

NUT, 5/8 - 32

$5.49

$

Usually ships in 2-12 days

0

7

Murray 1736368YP

KEYS & RING, Starter

$7.49

$

Usually ships in 2-12 days

0

8

Murray 394281S

BULB, Fuel Primer

$16.99

$

Usually ships in 2-12 days

0

9

Murray 1501878MA

COVER, Access

$14.99

$

Usually ships in 2-12 days

0

10

Murray 271172MA

NUT, Keps 1/4 - 20

$4.49

$

Usually ships in 2-12 days

0

11

Murray 335507MA

HOSE, Primer, 9.5"

$7.99

$

Usually ships in 2-12 days

0

12

Murray 56992MA

SWITCH, Ignition

$14.99

$

Usually ships in 2-12 days

0

13

Murray 1741982HYP

HANDLE, Lower

$87.99

$

Usually ships in 2-12 days

0

14

Murray 1740053MA

SCREW, 1/4 - 14 x 3/4

$3.99

$

Usually ships in 2-12 days

0

15

Murray 578109MA

NUT, 1/4 - 10

$6.49

$

In Stock, Qty 8

0

16

Murray 1740004MA

COVER, Bottom

$165.99

$

Usually ships in 2-12 days

0

17

Murray 1740005MA

COVER, Belt

$

$

Not available

18

Murray 1740051MA

SCREW, 10 - 24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1740052MA

NUT, Hex Center Lock, 10 - 24

$3.99

$

Usually ships in 2-12 days

0

20

Murray 1740056MA

LOCKNUT, Hex 1/4 - 20

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1740425MA

SCREW, 1/4 - 20 x 9/10

$4.49

$

Usually ships in 2-12 days

0

22

Murray 1740433MA

COVER, Top Assembly

$182.99

$

Usually ships in 2-12 days

0

24

Murray 313683MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

25

Murray 1740371MA

COVER, Oil Access

$36.99

$

Usually ships in 2-12 days

0

26

Murray 1501995MA

Gasket, Chute Ring

$21.99

$

Usually ships in 2-12 days

0

27

Murray 028X85MA

NUT, Push Pal

$4.99

$

Usually ships in 2-12 days

0

28

Murray 583435MA

CLIP, Cable

$5.49

$

Usually ships in 2-12 days

0

29

Murray 1740426MA

SCREW, 10-24 x .72

$3.49

$

Usually ships in 2-12 days

0

30

Murray 1740427MA

SCREW, 10-24 x .95

$3.99

$

Usually ships in 2-12 days

0

31

Murray 1740071SM

COVER, R.H. Auger Housing

$16.99

$

Usually ships in 2-12 days

0

32

Murray 1740407MA

J-NUT, 1/4-10

$4.49

$

Usually ships in 2-12 days

0

33

Murray 1502074MA

GROMMET, Rope

$3.99

$

Usually ships in 2-12 days

0

34

Murray 57587MA

WASHER, Rope Grommet

$3.99

$

Usually ships in 2-12 days

0
