522 E (1695445) - John Deere 22" Snow Thrower (2008-11) Chute System Parts Diagram

22" Snow Thrower

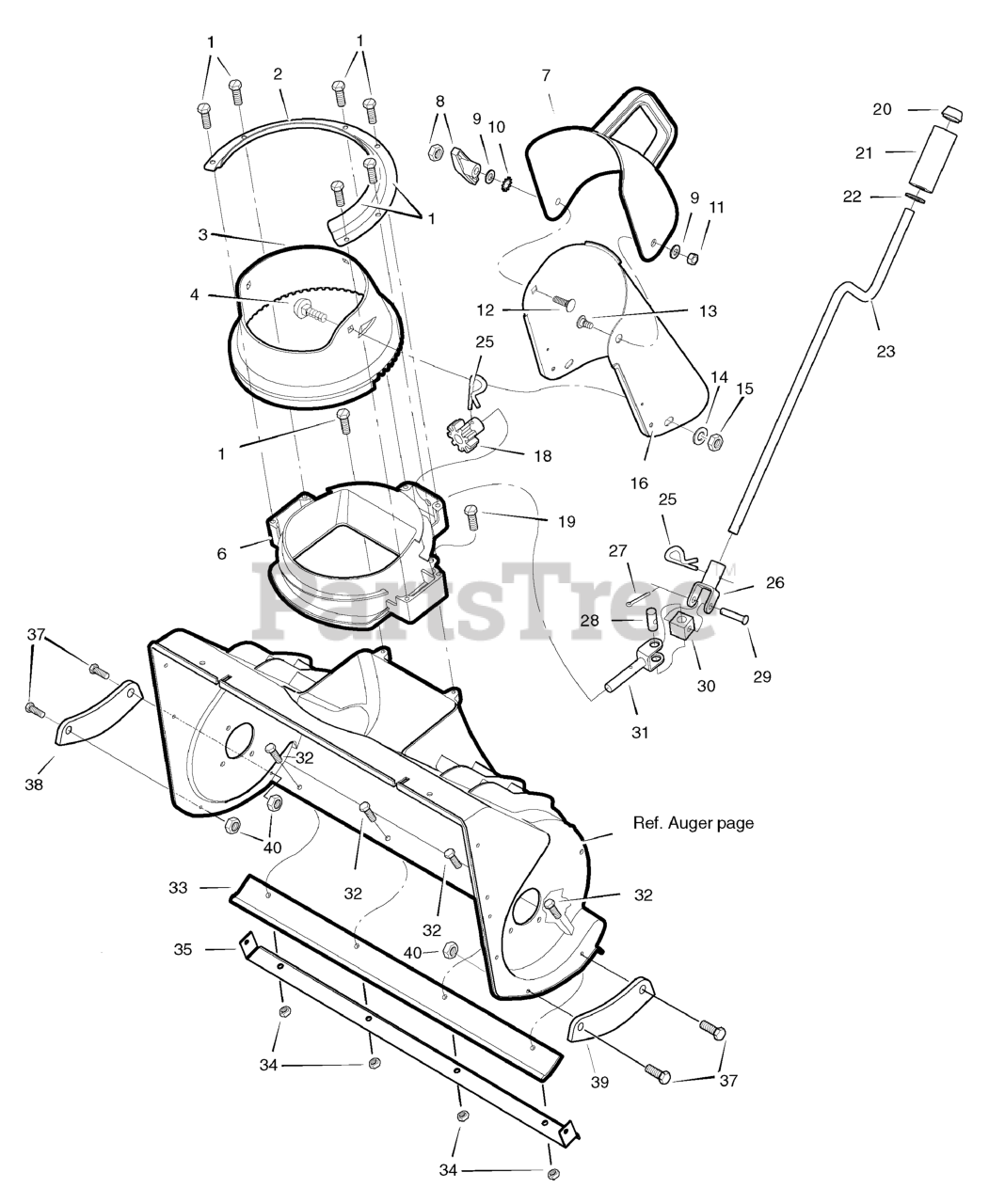

Chute System Parts Diagram

  • Title

1

Murray 313685MA

SCREW, 1/4 - 14

$5.49

$

Usually ships in 2-12 days

0

2

Murray 1502131MA

RETAINER, Chute Ring

$

$

Not available

3

Murray 1502132MA

RING, Chute

$40.99

$

Usually ships in 2-12 days

0

4

Murray 340720MA

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

6

Murray 1736069YP

NECK, Chute

$37.99

$

Usually ships in 2-12 days

0

7

Murray 1501918MA

CHUTE, 22" Upper

$30.99

$

Usually ships in 2-12 days

0

8

Murray 1501260MA

KNOB

$7.99

$

In Stock, only 2 left!

0

9

Murray 71071MA

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

10

Murray 019X35MA

LOCKWASHER, Shakeproof

$4.99

$

In Stock, only 2 left!

0

11

Murray 71391MA

LOCKNUT, Hex, 5/16 - 18

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X97MA

BOLT, Carriage, 5/16 - 18
(Superseded to 704210)

$4.99

$

Usually ships in 2-12 days

0

13

Murray 1501910MA

BOLT, Upper Chute

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0

15

Murray 71038MA

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

16

Murray 1736382YP

CHUTE, Lower

$62.99

$

Usually ships in 2-12 days

0

18

Murray 1501067MA

GEAR, 9-Tooth

$17.99

$

In Stock, only 3 left!

0

19

Murray 313685MA

SCREW, 1/4 - 14 x 3/4

$5.49

$

Usually ships in 2-12 days

0

20

Murray 331532MA

NUT, Push

$4.99

$

Usually ships in 2-12 days

0

21

Murray 57082MA

KNOB, Sleeve

$7.99

$

Usually ships in 2-12 days

0

22

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0

23

Murray 1501870MA

CRANK, Chute Rotation

$15.99

$

Usually ships in 2-12 days

0

25

Murray 1501293MA

PIN, Hair

$4.99

$

In Stock, only 2 left!

0

26

Murray 1741997YP

YOKE ASSEMBLY, Adapter

$6.99

$

Usually ships in 2-12 days

0

27

Murray 579493MA

PIN, Cotter, .5

$4.49

$

In Stock, only 4 left!

0

28

Murray 578060MA

PIN, Universal Joint

$7.49

$

In Stock, Qty 5

0

29

Murray 578309MA

PIN, Clevis

$5.49

$

Usually ships in 2-12 days

0

30

Murray 578063MA

HOUSING, Universal

$5.49

$

In Stock, Qty 10

0

31

Murray 1501873MA

ROD, Lower Crank

$6.99

$

Usually ships in 2-12 days

0

32

Murray 302628MA

SCREW, 1/4 - 20 x 3/4

$4.49

$

In Stock, Qty 6

0

33

Murray 1501863MA

BLADE, Scraper

$24.99

$

In Stock, Qty 7

0

34

Murray 15X143MA

LOCKNUT, Hex, 1/4 - 20

$4.99

$

In Stock, only 4 left!

0

35

Murray 1734321SM

PLATE, Reinforcement

$

$

Not available

37

Murray 1741504YP

SCREW, 10-32 x 1

$4.49

$

Usually ships in 2-12 days

0

38

Murray 1740398MA

SKID SHOE, RH

$8.49

$

In Stock, Qty 5

0

39

Murray 1740397MA

SKID SHOE, LH

$8.49

$

In Stock, Qty 6

0

40

Murray 1740382SM

NUT, Nylock, 10-32

$4.49

$

Usually ships in 2-12 days

0
