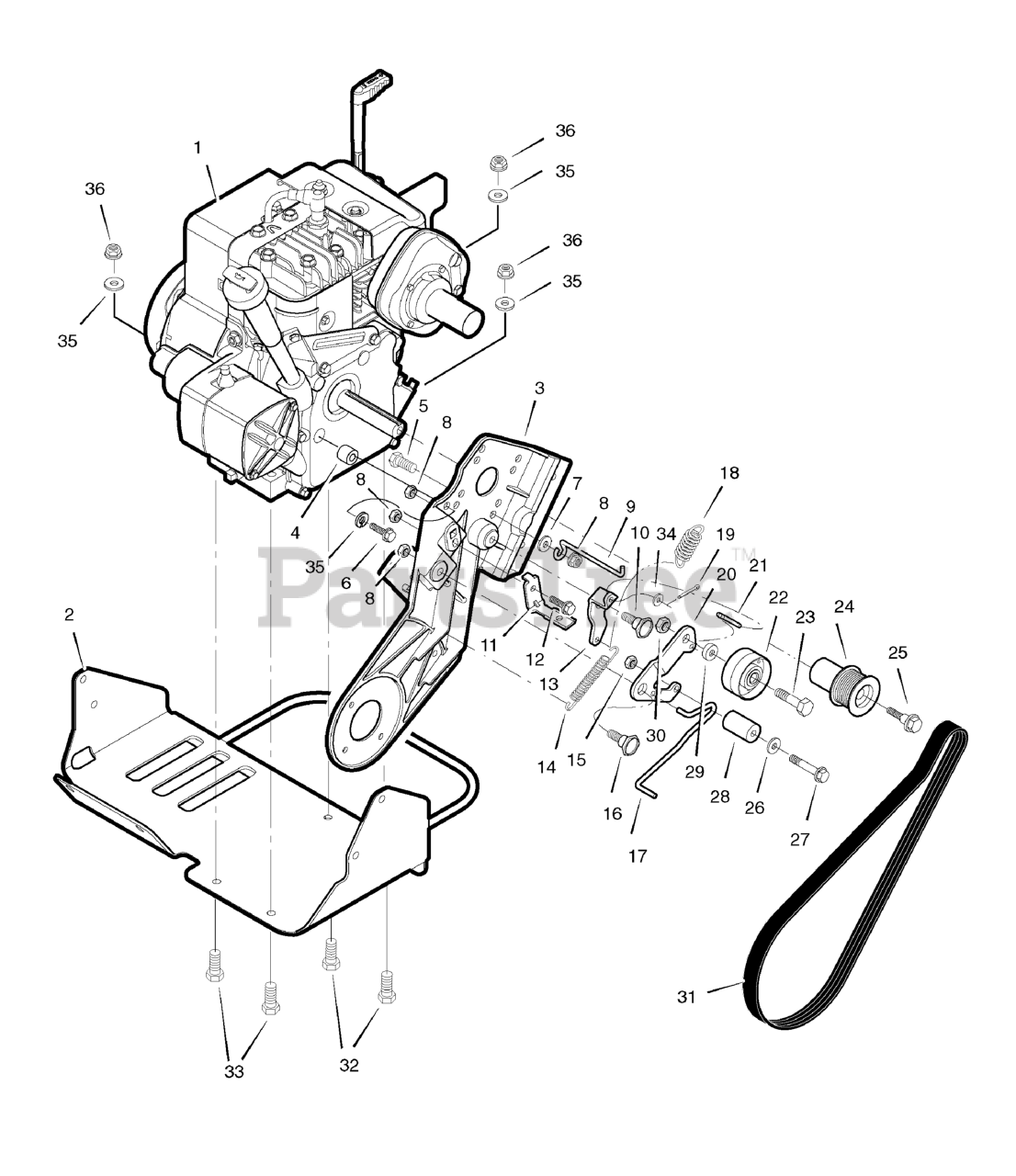

522 E (1695445) - John Deere 22" Snow Thrower (2008-11) Engine Drive System Parts Diagram

22" Snow Thrower

Engine Drive System Parts Diagram

  • Title

1

ENGINE, 5.25GT 4CY B&S Electric Start *

Note: (Model # 09A4130202E1)

$

$

Not available

2

Murray 1741989HYP

CRADLE ASSEMBLY, Engine

$176.99

$

Usually ships in 2-12 days

0

3

Murray 1501872E701MA

FRAME, L.H.

$

$

Not available

4

Murray 1502027MA

ANTI-VIBRATION MOUNT, Engine

$4.49

$

Usually ships in 2-12 days

0

5

Murray 1X216MA

BOLT, Hex, 5/16 - 18

$3.99

$

Usually ships in 2-12 days

0

6

Murray 6X118MA

BOLT, Hex, 5/16 - 24

$3.99

$

Usually ships in 2-12 days

0

7

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

8

Murray 71391MA

NUT, Hex Center Lock, 5/16 - 18

$4.49

$

In Stock, only 1 left!

0

9

Murray 334079MA

GUIDE, Belt

$7.99

$

Usually ships in 2-12 days

0

10

Murray 333594MA

BOLT

$20.99

$

In Stock, only 2 left!

0

11

Murray 333970MA

PAD, Brake

$5.49

$

Usually ships in 2-12 days

0

12

Murray 579052MA

SCREW, 1/4 - 20 x 5/8

$9.99

$

In Stock, only 1 left!

0

13

Murray 313444MA

IDLER, Arm Pivot

$

$

Not available

14

Murray 313473MA

SPRING

$6.49

$

In Stock, only 1 left!

0

15

Murray 73826MA

NUT, Hex 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

16

Murray 333594MA

BOLT

$20.99

$

In Stock, only 2 left!

0

17

Murray 1501009MA

WIRE, Brake

$9.99

$

In Stock, only 1 left!

0

18

Murray 313471MA

SPRING

$4.99

$

In Stock, only 1 left!

0

19

Murray 121223MA

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

20

Murray 1741727YP

ARM, Idler

$10.99

$

Usually ships in 2-12 days

0

21

Murray 313436MA

ROD, Clutch Linkage

$5.49

$

Usually ships in 2-12 days

0

22

Murray 48924MA

PULLEY, Idler

$31.99

$

Usually ships in 2-12 days

0

23

Murray 1741500MA

SCREW, 3/8 - 16 x 1-5/8

$3.49

$

Usually ships in 2-12 days

0

24

Murray 1501908MA

PULLEY, Engine

$28.99

$

Usually ships in 2-12 days

0

25

Murray 1501907MA

BOLT, Engine Pulley

$9.99

$

Usually ships in 2-12 days

0

26

Murray 71067MA

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

27

Murray 180044MA

SCREW, 1/4 - 20 x 2

$3.99

$

Usually ships in 2-12 days

0

28

Murray 1501010MA

PINCH ROLLER

$6.49

$

Usually ships in 2-12 days

0

29

Murray 1741499MA

SPACER, Idler

$4.49

$

Usually ships in 2-12 days

0

30

Murray 590MA

NUT, Hex
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

31

Murray 333721MA

BELT, Drive

$

$

Not available

32

Murray 001X81MA

BOLT, Hex, 5/16 - 18

$3.49

$

In Stock, only 2 left!

0

33

Murray 47792MA

SCREW, 3/8 - 16 x 1

$3.99

$

Usually ships in 2-12 days

0

34

Murray 414106MA

WASHER, Flat

$3.49

$

Usually ships in 2-12 days

0

35

Murray 71060MA

LOCKWASHER, Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Murray 71037MA

NUT, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
