522 E (1695445) - John Deere 22" Snow Thrower (2008-11) Wheel Assembly Parts Diagram

22" Snow Thrower

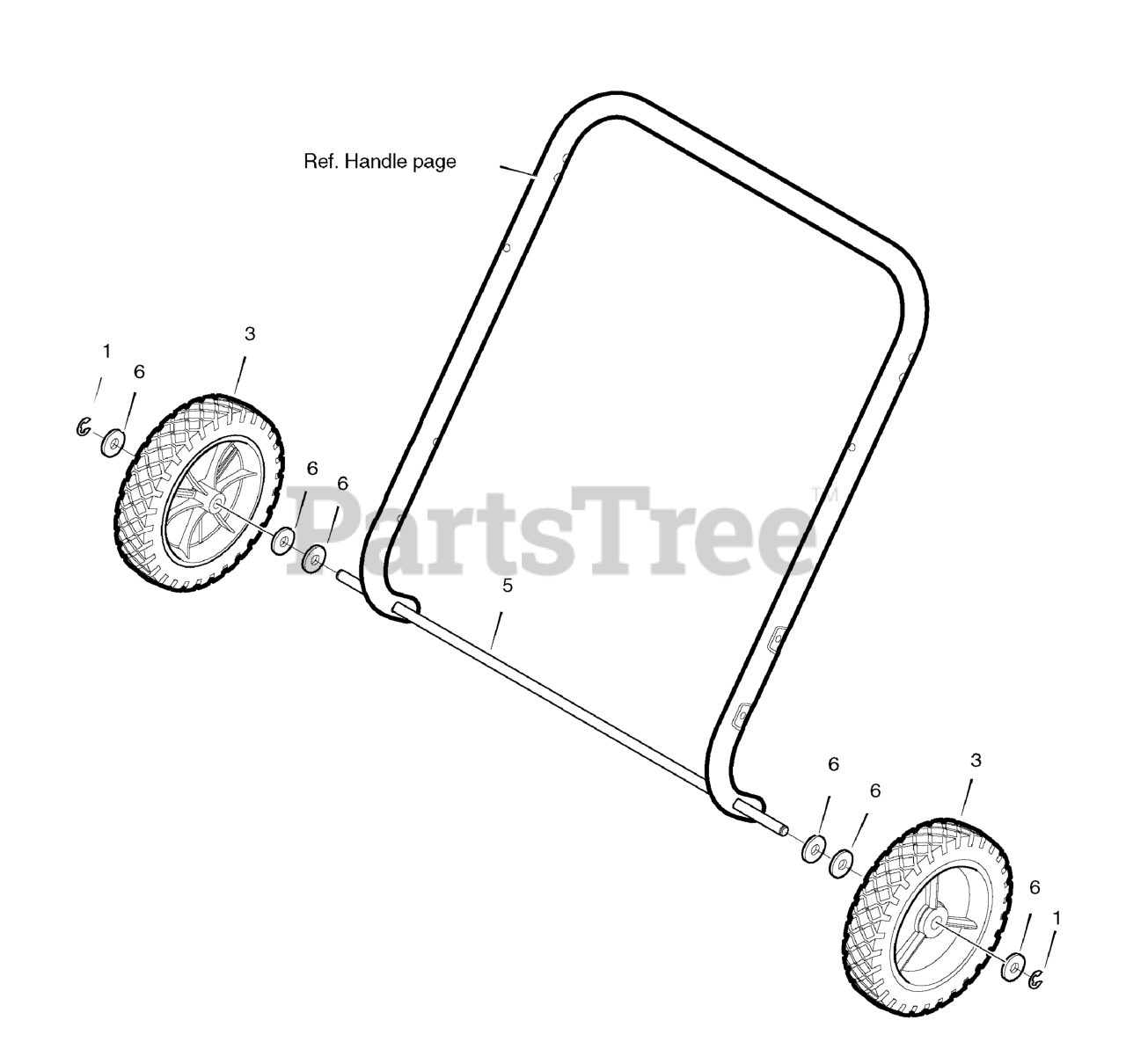

Wheel Assembly Parts Diagram

  • Title

1

Murray 1741498MA

RETAINER, E-Ring
(Superseded to 577598MA)

$4.49

$

In Stock, only 1 left!

0

3

Murray 1741722YP

WHEEL & TIRE, 7" x 1-1/2"
(Superseded to 760714MA)

$

$

Not available

5

Murray 1501879MA

ROD, Axle

$24.99

$

Usually ships in 2-12 days

0

6

Murray 583409MA

WASHER

$4.49

$

Usually ships in 2-12 days

0
