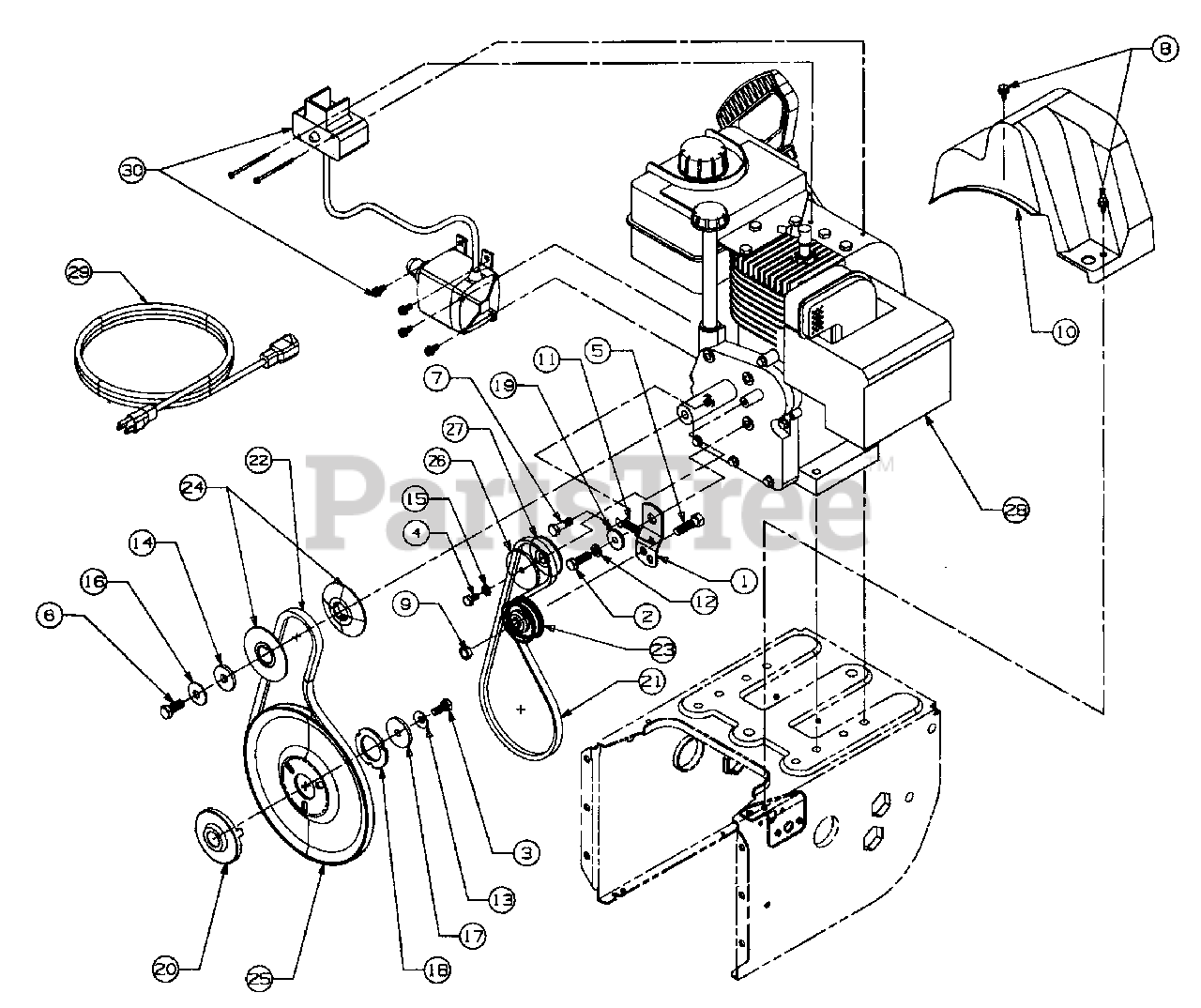

522 E (317E623D100) - Cub Cadet 22" Snow Thrower (1997) Drive Parts Diagram

22" Snow Thrower

Drive Parts Diagram

  • Title

1

Cub Cadet 05896A

Bracket, Idler

Variations

Cub Cadet 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0627

Screw, Hex Lock, 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0157

Screw, Hex Cap, 5/16-24 x .75 GR5

$3.99

$

In Stock, Qty 16

0

4

Cub Cadet 710-0230

Screw, Hex Cap, 1/4-28 x .5

$

$

Not available

5

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 x 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0696

Screw, Hex Cap, 3/8-24 x .875 GR8

$6.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0888

Screw, Hex Cap, 5/16-24 x 1.0 GR5

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-0896

Screw, Hex Wash Hd Tapp 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0181

Nut, Hex Jam Lock, 3/8-16

$3.99

$

In Stock, Qty 5

0

10

Cub Cadet 731-1324

Belt Cover

$20.99

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0339

Spring, Extension
(Superseded to 932-0339)

$

$

Not available

12

Cub Cadet 736-0159

Washer, Flat, .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .06

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0247

Washer, .406 x 1.25 x .157 Hdn

$8.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0329

Washer, Lock 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

16

Cub Cadet 736-0331

Washer, Bell, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0505

Washer, Flat, .34 x 1.5 x .15 Hdn

$5.99

$

In Stock, Qty 6

0

18

Cub Cadet 736-0507

Washer, Special 1.28 x 2.0 x .119
(Superseded to 936-0507)

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-1053

Spacer

$

$

Not available

20

Cub Cadet 748-0360

Pulley, Adapter
(Superseded to 948-0360)

$21.99

$

In Stock, only 3 left!

0

21

Cub Cadet 754-0456

V-Belt, 3/8 x 29
(Superseded to 954-0456)

$29.99

$

In Stock, Qty 5

0

22

Cub Cadet 754-0430

V-Belt, 3v x 34.9
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

Cub Cadet 756-0313

Idler, Flat

$24.99

$

In Stock, Qty 7

0

24

Cub Cadet 756-0569

Pulley, Half

$10.99

$

In Stock, Qty 5

0

25

Cub Cadet 756-0967

Pulley, Auger

$52.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 756-0984

Pulley Half

$

$

Not available

27

Cub Cadet 756-0985

Pulley, Half

$

$

Not available

28

Engine

$

$

Not available

29

Cub Cadet 629-0071

Cord Extension
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

30

Cub Cadet OEM-390-986

Starter Kit
(Superseded to TC-33290H)

$351.99

$

Usually ships in 3-6 days

0
