522 E (31AE623D101) - Cub Cadet 22" Snow Thrower Engine (1999) Starter Assembly Parts Diagram

22" Snow Thrower Engine

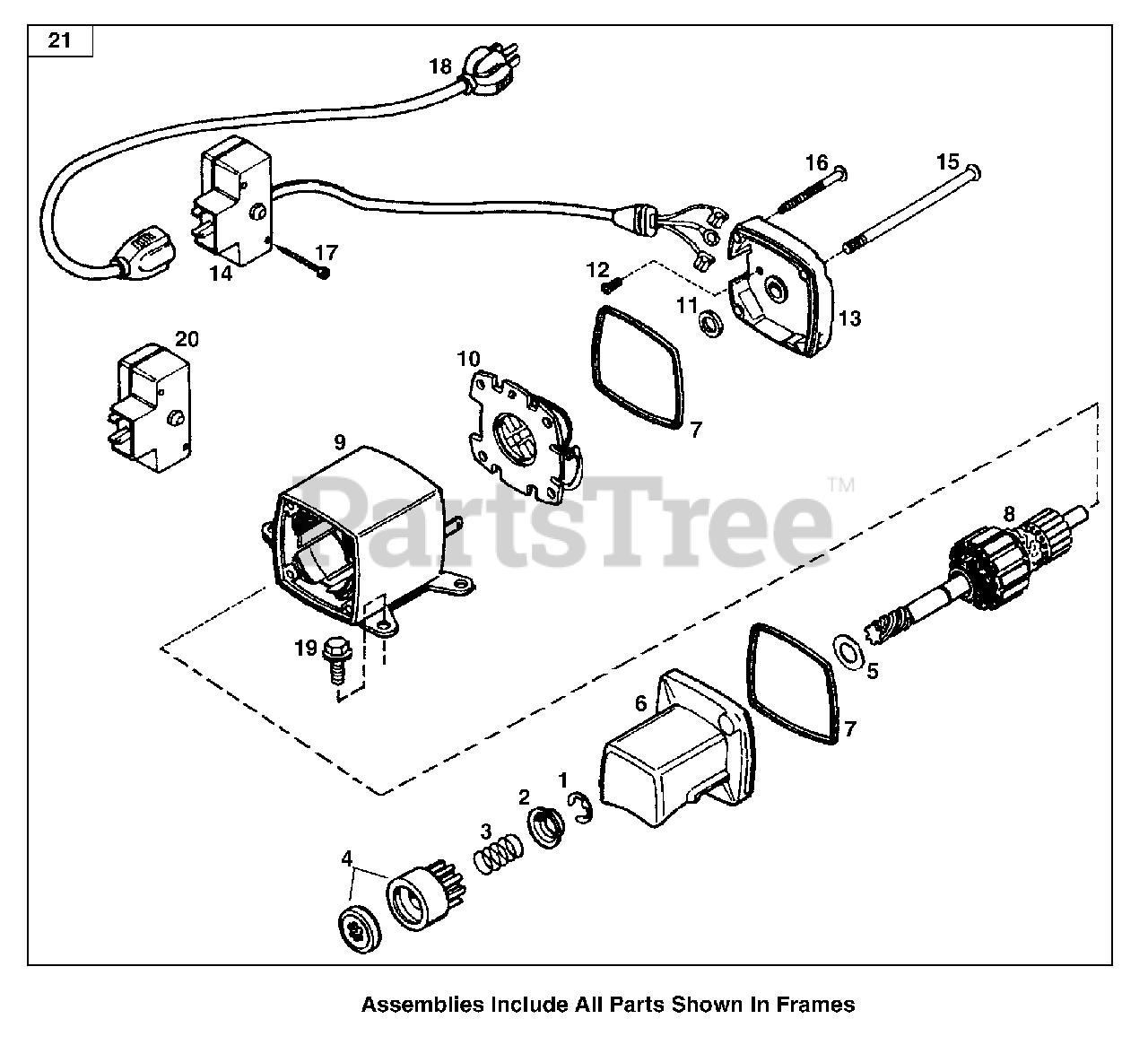

Starter Assembly Parts Diagram

  • Title
1

Cub Cadet TC-31749

Retainer Ring

$1.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-33522

Spring Retainer

$5.99

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-33769

Anti-Drift Spring

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet TC-33524

Nut & Gear
(Superseded to TC-37332)

$56.99

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-35911

Thrust Washer

$5.99

$

In Stock, only 1 left!

0

6

Cub Cadet TC-35461

Drive End Cap Ass’y

Note: (Incl. Ref #7)

$59.99

$

Usually ships in 3-12 days

0

7

$3.99

$

Usually ships in 3-12 days

0

8

$

$

Not available

9

Housing Ass’y

Note: (N/A - Avail. as Complete Assy Only)

$

$

Not available

10

Cub Cadet TC-35452A

Brush & Spring Card Ass’y

$58.99

$

In Stock, only 1 left!

0

11

Cub Cadet TC-590500

Thrust Washer

$1.99

$

In Stock, only 2 left!

0

12

Cub Cadet TC-33441

Ground Screw

$

$

Not available

13

Cub Cadet TC-35453

Commutator End Cap Ass’y

$41.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-35454

Switch Box Ass’y

Note: (Incl. Ref #17)

$

$

Not available

15

Cub Cadet TC-35462

Case Bolt

$3.99

$

In Stock, only 2 left!

0

16

Cub Cadet TC-35456

Grounding Screw

$1.99

$

In Stock, only 3 left!

0

17

Cub Cadet TC-650819

Screw, 6-32 x 2-1/2".

$1.99

$

In Stock, only 3 left!

0

18

Cub Cadet TC-32450B

Extension Cord
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

19

Cub Cadet TC-650759

Screw, Torx T-30, 1/4-20 x 23/32".

$1.99

$

Usually ships in 3-12 days

0

20

Cub Cadet TC-730623

Switch Repair Kit

$

$

Currently unavailable

21

Cub Cadet TC-33290E

Electric Starter (110 Volt)
(Superseded to TC-33290H)

$351.99

$

Usually ships in 3-6 days

0
