522 HSR 75 X - Husqvarna Hedge Trimmer CARBURETOR & AIR FILTER Parts Diagram

Hedge Trimmer

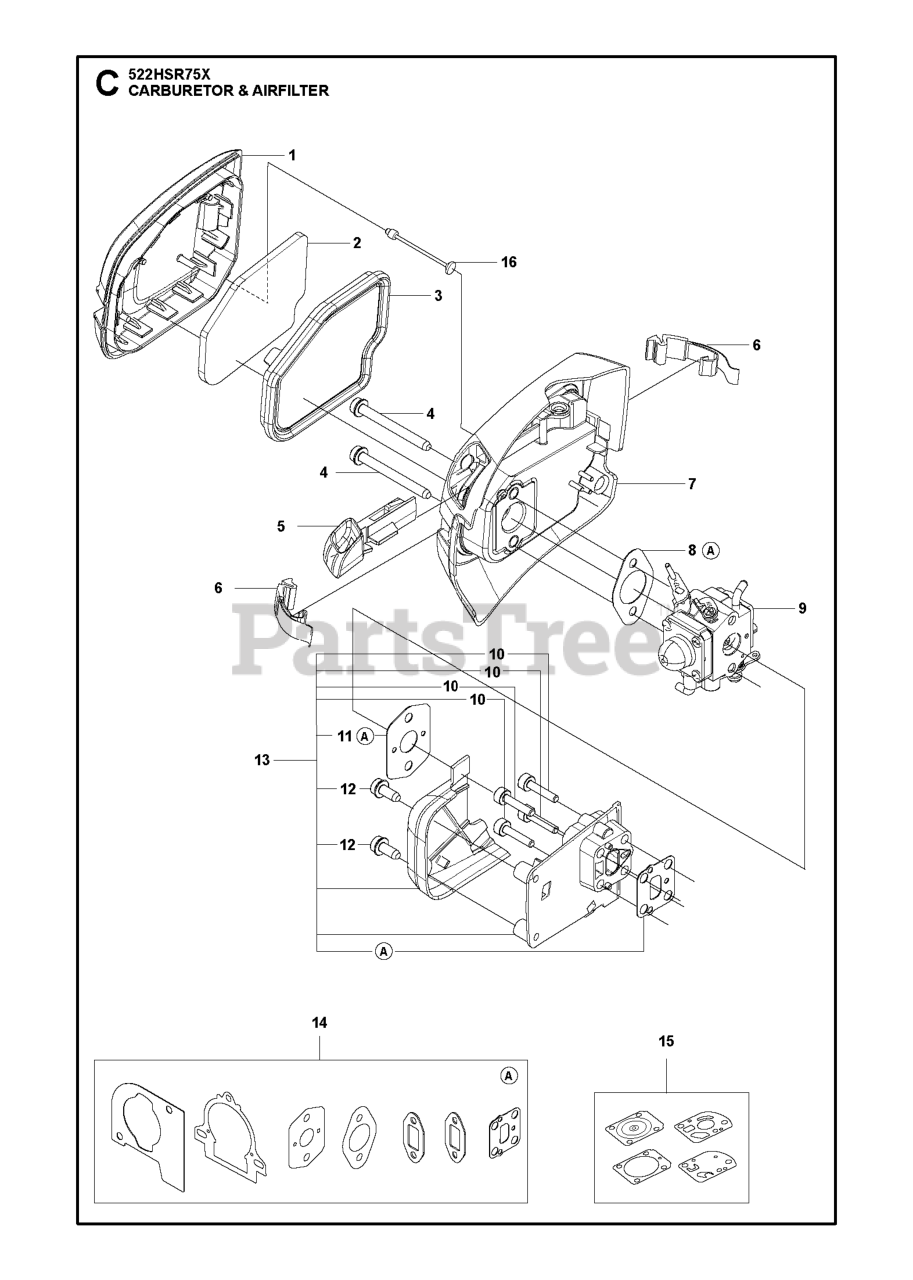

CARBURETOR & AIR FILTER Parts Diagram

  • Title

15

Husqvarna 588986001

KIT CARBURETTOR A053

Note: CARBURETTOR

$13.99

$

In Stock, Qty 20+

0

8

Husqvarna 577882402

GASKET

$4.99

$

In Stock, Qty 11

0

6

Husqvarna 503740102

HOLDER

$13.99

$

In Stock, Qty 5

0

3

Husqvarna 590040501

FILTER FELT AGILE

$

$

Not available

16

Husqvarna 590740101

Snaps

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 573925805

SCREW ITXSCFT MT5X12 T27 10.9

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590047801

FILTER COVER AGILE

$

$

Not available

14

Husqvarna 597021001

GASKET KIT 522

$11.99

$

In Stock, only 3 left!

0

4

Husqvarna 573925802

SCREW

$2.49

$

In Stock, Qty 12

0

9

Husqvarna 596658301

CARBURETTOR CARBURETTOR ASSY

$77.99

$

In Stock, Qty 20+

0

5

Husqvarna 590041601

CHOKE

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 590047601

FILTER HOLDER ASSY AGILE
(Superseded to 531130701)

$

$

Not available

10

Husqvarna 525760904

SCREW

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 590048001

AIR FILTER FOAM AGILE

$

$

Not available

11

Husqvarna 525548501

GASKET

$3.99

$

In Stock, only 4 left!

0

13

Husqvarna 597029001

MANIFOLD 522X

$29.99

$

Usually ships in 3-10 days

0
