522 L - Husqvarna Brush Cutter (SN: 20154000001 - 20154000000) CRANKCASE Parts Diagram

Brush Cutter

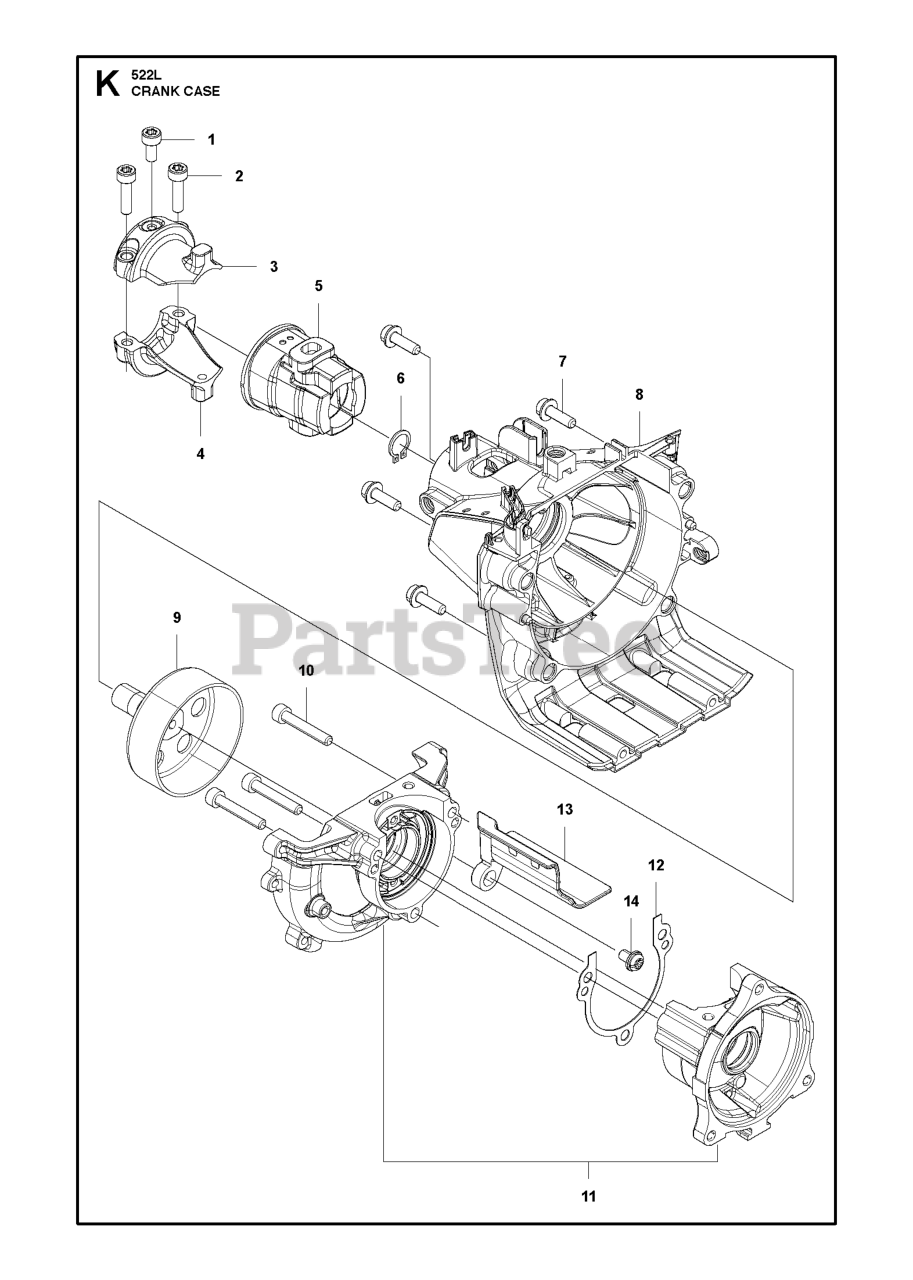

CRANKCASE Parts Diagram

  • Title

4

Husqvarna 576420802

BRACKET LOWER

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576410202

PLATE

$

$

Not available

6

Husqvarna 516124101

RING

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 577942001

BOLT M5X20 T27

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 576420702

BRACKET UPPER M5X0.8

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 581142001

CLUTCH DRUM

$42.99

$

In Stock, Qty 16

0

7

Husqvarna 577942301

BOLT M5 X 16

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576410603

HOUSING CLUTCH

$66.99

$

Usually ships in 3-10 days

0

1

Husqvarna 529268101

BOLT

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 544256801

SCREW

$6.49

$

In Stock, Qty 10

0

11

Husqvarna 578010004

CRANKCASE ASSY

$48.99

$

Usually ships in 3-10 days

0

12

Husqvarna 576407501

GASKET CASE

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 576420501

CUSHION UPPER

$26.99

$

In Stock, only 4 left!

0

10

Husqvarna 512845901

BOLT

$

$

Not available
