522 LS (246-631-100) - Cub Cadet Log Splitter Engine (1996) Gasket Set And Carburetor Overhaul Kit Parts Diagram

Log Splitter Engine

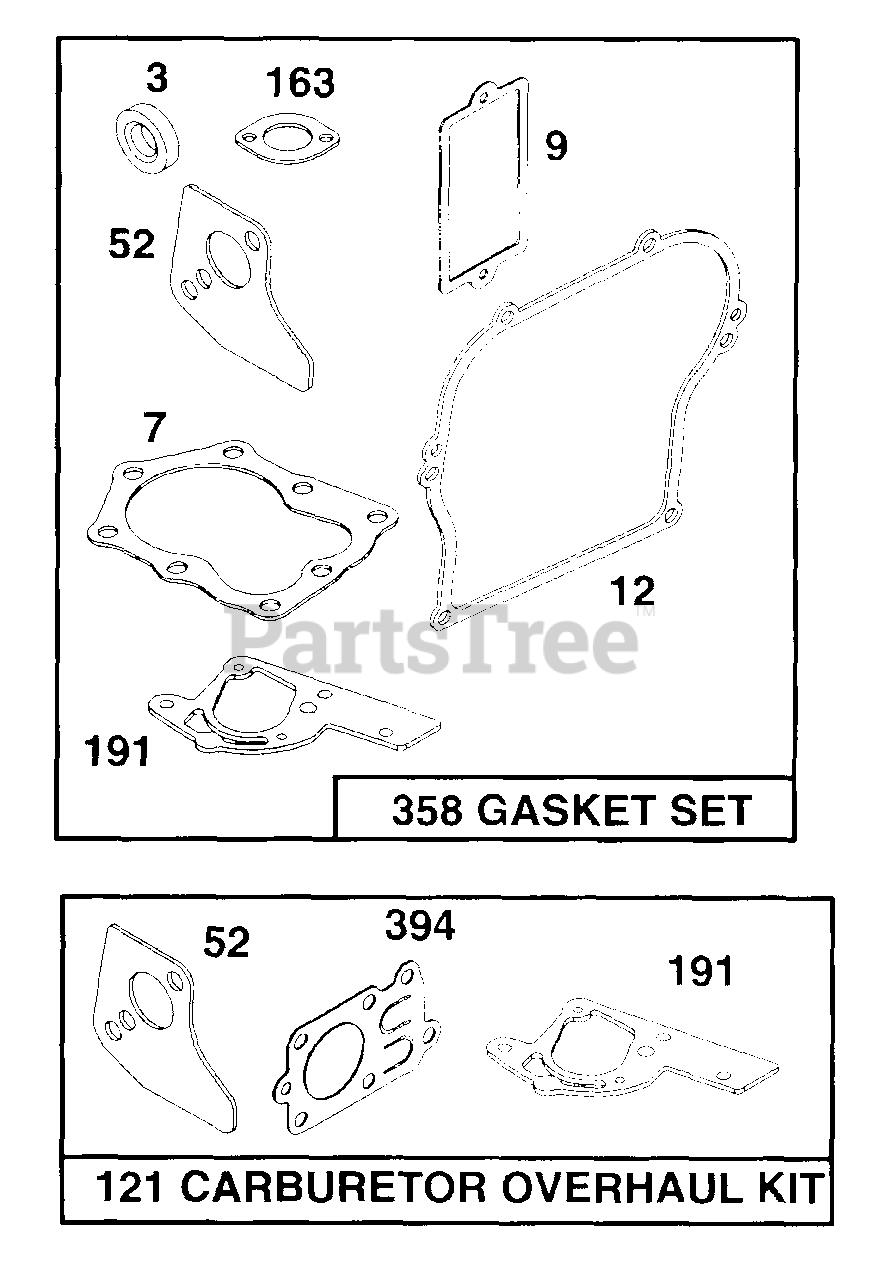

Gasket Set And Carburetor Overhaul Kit Parts Diagram

  • Title

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included in Gasket Set - Part No. BS-495603.

$5.99

$

In Stock, Qty 14

0

7

Cub Cadet BS-272157

Gasket-Cylinder Head
(Superseded to BS-272157S)

Note: Included in Gasket Set - Part No. BS-495603.

$6.99

$

In Stock, Qty 10

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

Note: Included in Gasket Set - Part No. BS-495603.

$

$

Not available

12

Cub Cadet BS-270080

Gasket-Crankcase (.015" Thick, Std.)

Note: Included in Gasket Set - Part No. BS-495603.

$

$

Not available

Cub Cadet BS-270125

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set - Part No. BS-495603.

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Gasket-Crankcase (.009" Thick)

Note: Included in Gasket Set - Part No. BS-495603.

$8.99

$

In Stock, only 2 left!

0

52

Cub Cadet BS-273113

Gasket-Carburetor Mounting
(Superseded to BS-273113S)

Note: Included in Gasket Set - Part No. BS-495603. Included in Carburetor Overhaul Kit - Part No. BS-495606.

$4.99

$

In Stock, Qty 16

0

121

Cub Cadet BS-495606

Carburetor Overhaul Kit

Note: Includes items 52, 191 & 394

$40.99

$

Usually ships in 2-12 days

0

163

Cub Cadet BS-271935

Gasket-Air Cleaner Mounting
(Superseded to BS-271935S)

Note: Included in Gasket Set - Part No. BS-495603.

$6.99

$

In Stock, only 4 left!

0

191

Cub Cadet BS-272489

Gasket-Fuel Tank to Carb. Mtg.
(Superseded to BS-692241)

Note: Included in Gasket Set - Part No. BS-495603. Included in Carburetor Overhaul Kit - Part No. BS-495606.

$4.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-495603

Gasket Set

Note: Includes items 3, 7, 9, 12, 52, 163 & 191

$34.99

$

In Stock, only 2 left!

0

394

Cub Cadet BS-272538

Diaphragm
(Superseded to BS-272538S)

Note: Included in Carburetor Overhaul Kit - Part No. BS-495606.

$4.49

$

In Stock, Qty 20+

0
