5225 S - Troy-Bilt Tuffy Rear-Tine Tiller (SN: X0001000 - X0012159) HOOD, DEPTH REGULATOR & DRAG BAR Parts Diagram

Tuffy Rear-Tine Tiller

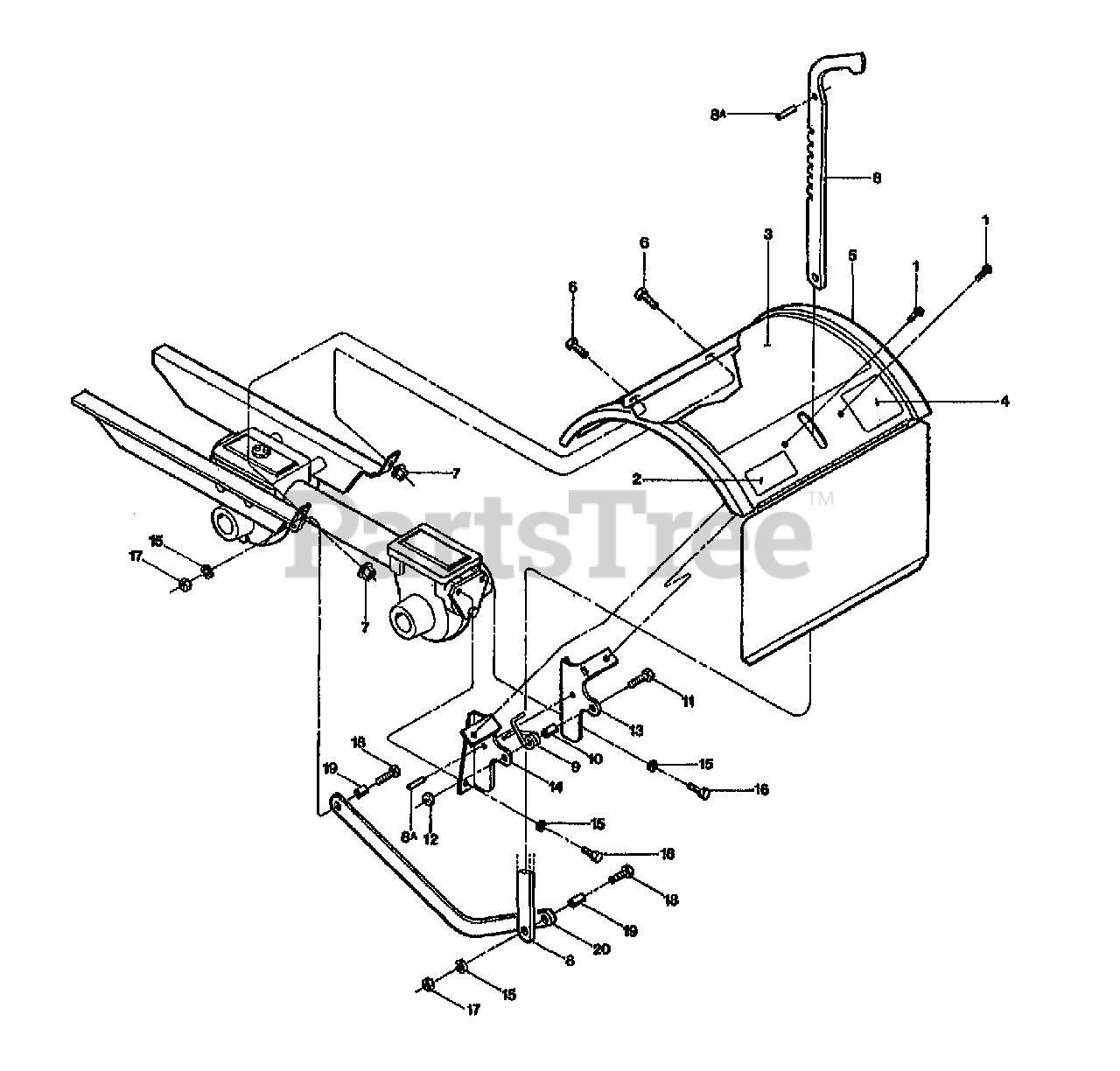

HOOD, DEPTH REGULATOR & DRAG BAR Parts Diagram

  • Title

1

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 55054

DECAL-LOGO TUFFY HOOD

$

$

Currently unavailable

3

Troy-Bilt 55051

DECAL-HOOD TUFFY (OPERATING & SAFETY INSTRUCTIONS)

$

$

Currently unavailable

4

Troy-Bilt 20814

DECAL-TINE WARN SM FRAME

$

$

Currently unavailable

5

Troy-Bilt 55076

HOOD W/DECALS PNT (INCL. TINE FLAP, 55054, 55051, & 20814)
(Superseded to 686-04076A-0638)

$94.99

$

In Stock, Qty 7

0

6

MTD 1100088

SCR-HH 5/16-18X.5 GD5 YEL

$

$

Not available

7

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 19

0

8

Troy-Bilt 55074

DEPTH REG-W/PIN PNT
(Superseded to 786-04292A-0638)

$70.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

PIN-ROLL .25 X 1
(Superseded to 715-0108)

$5.49

$

In Stock, Qty 7

0

9

Troy-Bilt 9384

SPRING-TORSION
(Superseded to 732-04320)

$4.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 9534

SPACER-.250X.343X.375
(Superseded to GW-9534)

$4.49

$

In Stock, only 4 left!

0

11

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, only 2 left!

0

13

MTD 55072-2

BRKT-HOOD RIGHT PNT

$

$

Not available

14

MTD 55072-1

BRKT-HOOD LEFT PNT

$

$

Not available

15

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

18

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

19

Troy-Bilt 55088

BUSHING-.438X.323X.4
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 55073

DRAG BAR-TUFFY PNT
(Superseded to 786-04104-0638)

$38.99

$

In Stock, Qty 7

0
