5225 S - Troy-Bilt Tuffy Rear-Tine Tiller (SN: X0001000 - X0012159) TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

Tuffy Rear-Tine Tiller

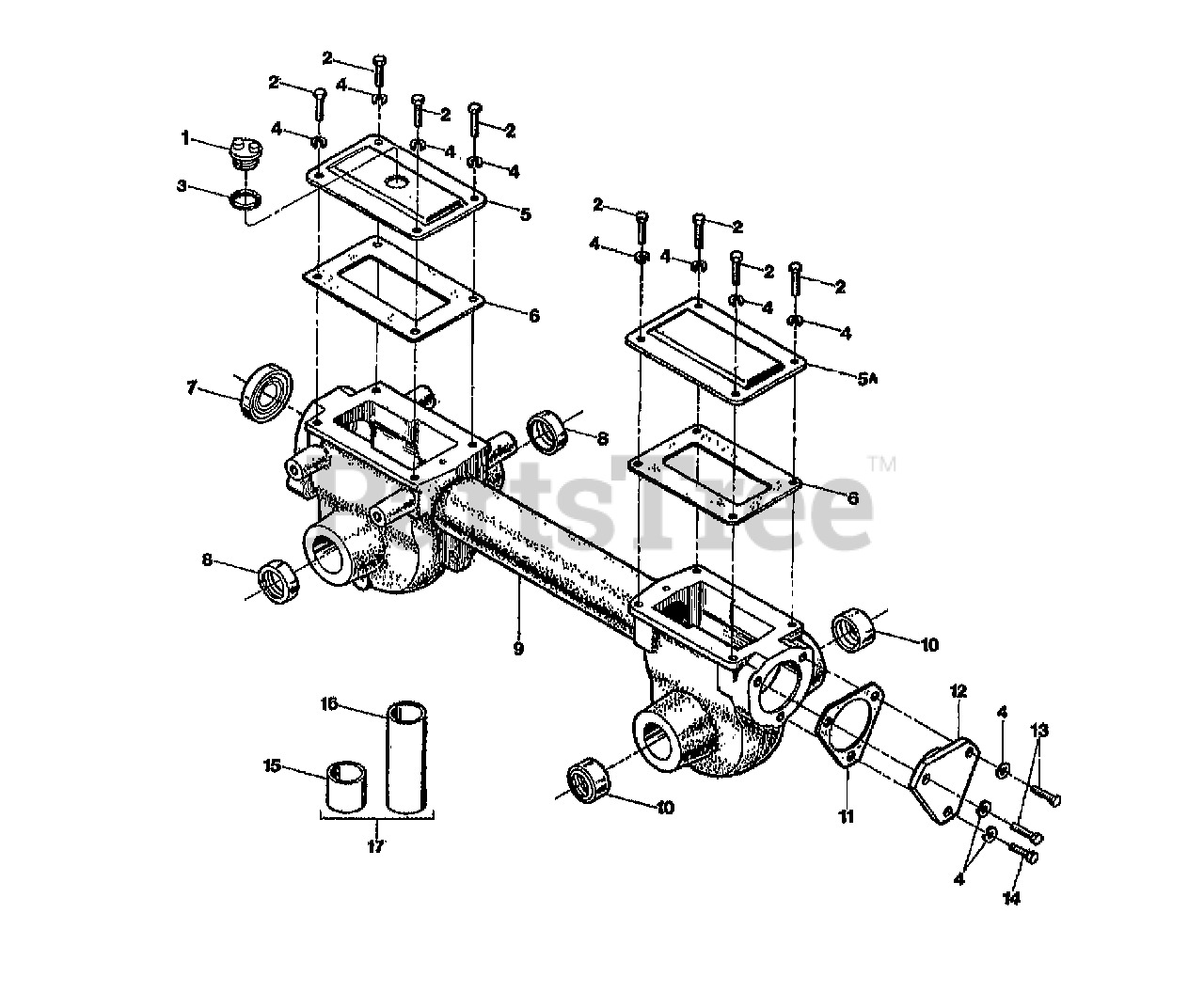

TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

  • Title

1

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10
(Superseded to GW-9467)

$4.99

$

In Stock, only 1 left!

0

2

MTD 1100088

SCR-HH 5/16-18X.5 GD5 YEL

$

$

Not available

3

Troy-Bilt 97037

GASKET-O RING .674 I.D.
(Superseded to GW-97037)

$

$

Not available

4

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 55090

COVER-TRANS FRNT PNT

$

$

Currently unavailable

5A

Troy-Bilt 55091

CVR-TRANS REAR PNT
(Superseded to 1916109001)

$

$

Not available

6

Troy-Bilt 50032

GASKET-GEAR HSG
(Superseded to 921-04229)

$6.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 9617

SEAL-OIL DRIVESHAFT
(Superseded to 921-04030)

$11.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

9

MTD 55000

TRANSMISSION-MACH

$

$

Not available

10

Troy-Bilt 1915308

KIT-OIL SEAL TUFFY

$34.99

$

In Stock, Qty 10

0

11

MTD 55011-1

GASKET-BEARING CAP .010

$

$

Not available

11

MTD 55011-2

GASKET-BEARING CAP .030

$

$

Not available

12

Troy-Bilt 55010

CAP-REAR BEARING-PM
(Superseded to 918-04435)

$21.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

14

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 4921-2

SEAL-DRIVER PILOT

$

$

Currently unavailable

16

Troy-Bilt 4921-1

DRIVER-PLASTIC

$

$

Currently unavailable

17

Troy-Bilt 4921

KIT-DRIVER

$2.49

$

In Stock, only 2 left!

0

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
