523 (UT-35023) - Homelite Snow Thrower Auger & Housing Parts Diagram

Snow Thrower

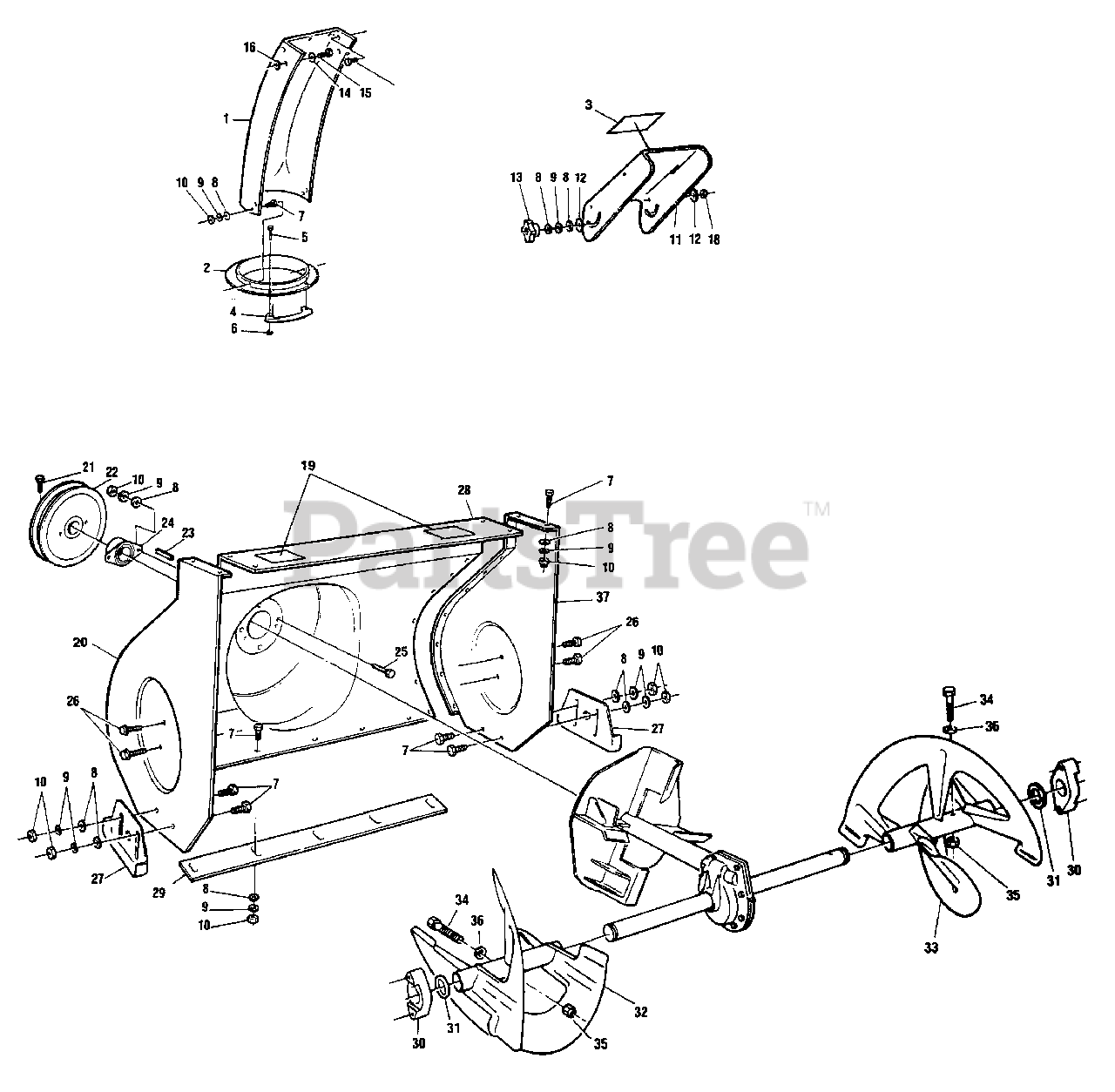

Auger & Housing Parts Diagram

  • Title

1

Homelite 0110991

EXTENSION - Chute

$

$

Currently unavailable

2

Homelite 0110989

FLANGE

$

$

Currently unavailable

3

Homelite JA991342

DECAL

$

$

Currently unavailable

4

Homelite 0110990

RETAINER

$

$

Currently unavailable

5

Homelite 0111033

BOLT - 8-32 x 1/2

$

$

Currently unavailable

6

Homelite 0111042

NUT - Lock 8-32

$

$

Currently unavailable

7

Homelite JA440078

BOLT - Carriage 5/16-18 x 3/4

$2.99

$

Usually ships in 3-7 days

0

8

Homelite JA453009

WASHER - Flat 5/16
(Superseded to UP07173)

$

$

Not available

9

Homelite JA446136

WASHER - Lock 5/16
(Superseded to UP03791)

$

$

Not available

10

Homelite JA443106

NUT - Hex 5/16
(Superseded to 81018)

$

$

Not available

11

Homelite 0110998

DEFLECTOR - Chute

$

$

Currently unavailable

12

Homelite 0110999

WASHER - Plastic

$

$

Currently unavailable

13

Homelite 0111001

KNOB - Wing

$

$

Currently unavailable

14

Homelite 0111048

WASHER - Flat 7/16

$

$

Currently unavailable

15

Homelite JA440082

BOLT - Carriage 5/16-18 x 1

$

$

Currently unavailable

16

Homelite JA453011

WASHER - Flat 3/8
(Superseded to PS84010)

$

$

Not available

?17

Homelite 0111037

BOLT - Pan Head Slotted 5/16-18 x 3/4

$

$

Currently unavailable

18

Homelite 0111046

NUT - Lock 5/16-18

$

$

Currently unavailable

19

Homelite JA991339

DECAL

$4.49

$

Usually ships in 3-7 days

0

20

Homelite 0110953

PLATE - Side (R.H.)

$

$

Currently unavailable

21

Homelite JA400184

BOLT - 5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

22

Homelite 0110966

PULLEY - Auger 6.5"

$

$

Currently unavailable

23

Homelite 0110965

KEY - 3/16

$

$

Currently unavailable

24

Homelite 0110913

BEARING 7/8

$

$

Currently unavailable

25

Homelite JA400182

BOLT - 5/16-18 x 5/8

$

$

Not available

26

Homelite 0111036

SCREW - Self Tapping 5/16-18 x 3/4

$

$

Currently unavailable

27

Homelite 0110959

HEIGHT ADJUSTOR

$

$

Not available

28

Homelite 0110907

HOUSING - 23" Auger (Red)

$

$

Currently unavailable

29

Homelite 0110908

BAR - 23" Scraper

$

$

Currently unavailable

30

Homelite 0110944

SHAFT - Auger Bushing

$

$

Not available

31

Homelite 0110945

WASHER

$

$

Currently unavailable

32

Homelite 0110941

AUGER - 23" R.H.

$

$

Currently unavailable

33

Homelite 0110940

AUGER - 23" L.H.

$

$

Currently unavailable

34

Homelite JA400116

BOLT - 1/4-20 x 1-1/2

$

$

Not available

35

Homelite JA444708

NUT - Lock 1/4-20

$

$

Currently unavailable

36

Homelite 0110943

SPACER

$

$

Not available

37

Homelite 0110952

PLATE - Side (L.H.)

$

$

Currently unavailable
