523 (UT-35023) - Homelite Snow Thrower Drive Parts Diagram

Snow Thrower

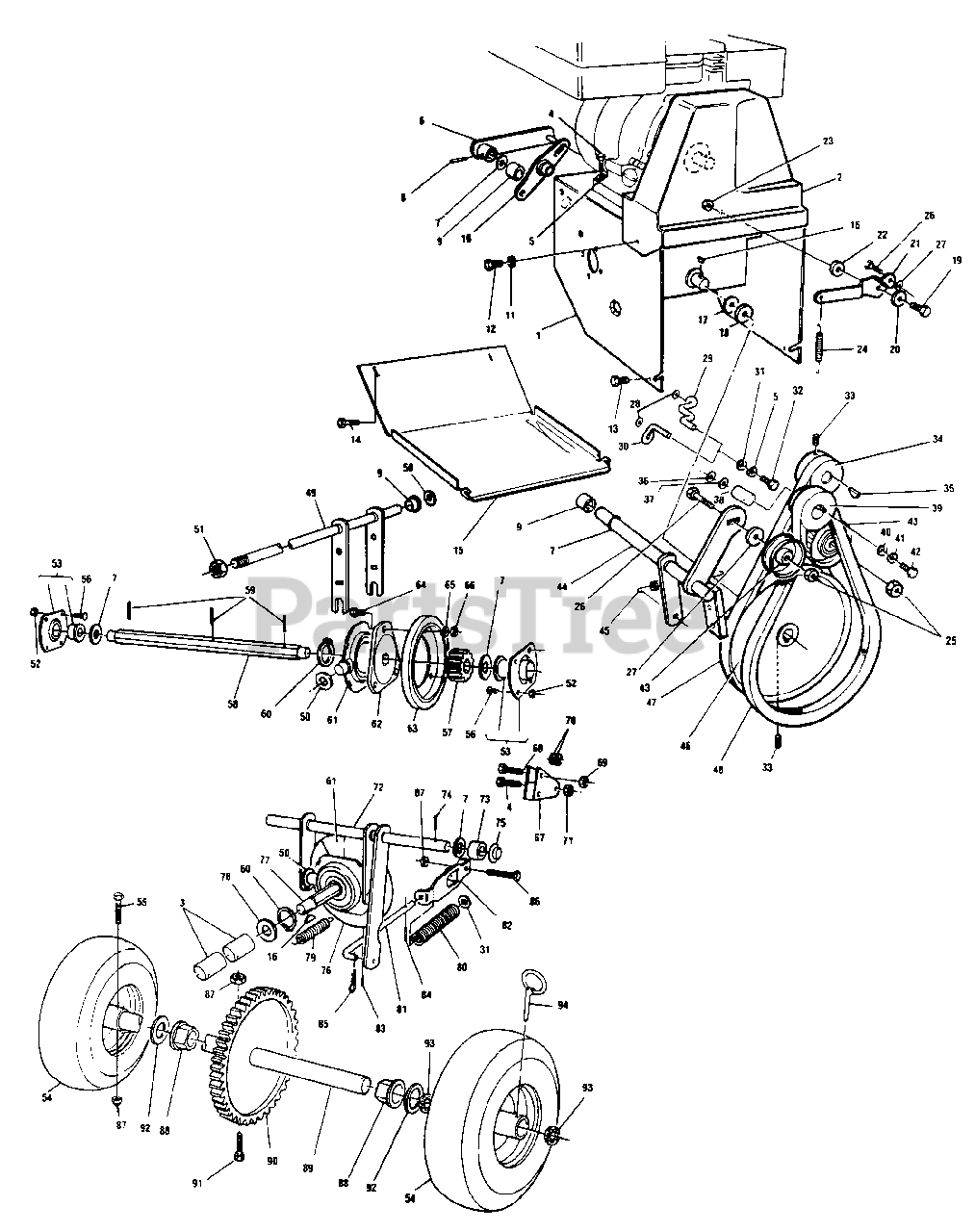

Drive Parts Diagram

  • Title

1

Homelite 0110901

FRAME - Motor Mount (red)

$

$

Currently unavailable

2

Homelite 0110987

BELT - Cover

$

$

Not available

3

Homelite 0110915

BEARING - Needle

$

$

Currently unavailable

4

Homelite JA400190

BOLT - 5/16-18 x 1 1/4

$

$

Not available

5

Homelite JA446134

WASHER - Lock 5/16
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 0110969

LEVER - Auger Clutch

$

$

Currently unavailable

7

Homelite JA453017

WASHER - Flat 17/32

$

$

Not available

8

Homelite 0111054

PIN - Roll 5/32 x 7/8

$

$

Currently unavailable

9

Homelite 0110910

BUSHING - Plastic

$

$

Currently unavailable

10

Homelite 0110970

LEVER - Clutch Cable

$

$

Currently unavailable

11

Homelite JA453023

WASHER - Flat 1/4
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite JA409907

SCREW - Self Tapping 1/4-20 x 1/2

$

$

Not available

13

Homelite 0111035

SCREW - Self Tapping 5/16-18 x 1/2

$

$

Currently unavailable

14

Homelite JA409907

SCREW - Self Tapping 1/4-20 x 1/2

$

$

Not available

15

Homelite 0110935

PANEL - Bottom

$

$

Currently unavailable

16

Homelite 0110926

KEY - Hypro 3/16

$

$

Currently unavailable

17

WASHER - Flat 5/8

$

$

Not available

18

Homelite 0110985

RACE THRUST

$

$

Currently unavailable

19

Homelite JA400184

BOLT 5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

20

Homelite 0111050

WASHER - 5/16-1 3/8 x 14 GA

$

$

Currently unavailable

21

Homelite 0110903

LEVER - Idler Traction

$

$

Currently unavailable

22

Homelite 0110905

BUSHING - Idler

$10.99

$

Usually ships in 3-7 days

0

23

Homelite JA444718

NUT - Lock 5/16-18

$

$

Not available

24

Homelite 0110906

SPRING - Idler

$

$

Currently unavailable

25

Homelite JA444850

NUT - Hex Jam 3/8-16
(Superseded to JA993711)

$

$

Not available

26

Homelite JA400264

BOLT - 3/8-16 x 1 1/4

$

$

Currently unavailable

27

Homelite JA453011

WASHER - Flat 3/8
(Superseded to PS84010)

$

$

Not available

28

Homelite 0110979

RETAINER - Spacer Belt

$

$

Currently unavailable

29

Homelite 0110977

BELT - Guide (L.H.)

$

$

Currently unavailable

30

Homelite 0110978

BELT - Guide (R.H.)

$

$

Not available

31

Homelite JA453009

WASHER - Flat 5/16
(Superseded to UP07173)

$

$

Not available

32

Homelite 0111038

BOLT - 5/16-24 x 1

$

$

Currently unavailable

33

Homelite 0111034

SCREW - Set 5/16-18 x 1/2

$

$

Currently unavailable

34

Homelite 0110981

PULLEY - PTO

$

$

Currently unavailable

35

Homelite 0110980

KEY - No. 5

$

$

Currently unavailable

36

Homelite 0110985

WASHER - Race Thrust

$

$

Currently unavailable

37

Homelite 0110982

WASHER

$

$

Not available

38

Homelite 0110984

SPACER

$

$

Not available

39

Homelite 0110983

PULLEY - Auger Drive

$

$

Currently unavailable

40

Homelite 0110986

WASHER

$

$

Currently unavailable

41

Homelite JA446142

WASHER - Lock

$

$

Not available

42

Homelite 0111040

BOLT - 3/8-24 x 1

$

$

Currently unavailable

43

Homelite 0110904

PULLEY - 2" Idler

$

$

Currently unavailable

44

Homelite 0110967

ROD - Auger Clutch

$

$

Currently unavailable

45

Homelite 0110972

SPRING

$

$

Currently unavailable

46

Homelite 0110971

PULLEY - 8" Traction

$

$

Not available

47

Homelite 0110974

BELT - Traction Drive

$

$

Not available

48

Homelite 0110975

BELT - Auger Drive

$

$

Currently unavailable

49

Homelite 0110909

SHAFT - Speed Control

$

$

Currently unavailable

50

Homelite 0110912

WASHER

$

$

Not available

51

Homelite JA444762

NUT - Lock 3/8-16

$

$

Currently unavailable

52

Homelite 0111045

NUT - Keps 10-24

$

$

Currently unavailable

53

Homelite 0110958

BEARING ASSEMBLY

$

$

Currently unavailable

54

Homelite 0111031

WHEEL - 4-10 x 3-50-4

$

$

Currently unavailable

55

Homelite JA400116

BOLT - 1/4-20 x 1 1/2 Gr. 5

$

$

Not available

56

Homelite 0111041

BOLT - Carriage 10-24 x 3/8

$

$

Currently unavailable

57

Homelite 0110957

PINION - 8 Tooth

$

$

Currently unavailable

58

Homelite 0110956

SHAFT - Hex

$

$

Not available

59

Homelite 0111053

PIN - Roll 1/8 x 3/4

$

$

Currently unavailable

60

Homelite 0110948

RING -Snap 1 1/4

$

$

Currently unavailable

61

Homelite 0110947

TRUNION BEARING ASSEMBLY

$

$

Currently unavailable

62

Homelite 0110955

WHEEL - Hub Friction

$

$

Currently unavailable

63

Homelite 0110954

WHEEL - Friction

$

$

Currently unavailable

64

Homelite JA400106

BOLT - 1/4-20 x 5/8

$

$

Currently unavailable

65

Homelite JA446128

WASHER - Lock 1/4
(Superseded to UP03409)

$9.99

$

Usually ships in 3-7 days

0

66

Homelite JA443102

NUT - Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

67

Homelite 0110902

PIVOT TRACTION

$

$

Currently unavailable

68

Homelite JA400118

BOLT - 1/4-20 x 1 3/4

$4.49

$

Usually ships in 3-7 days

0

69

Homelite JA444708

NUT - Lock 1/4-20

$

$

Currently unavailable

70

Homelite 0111015

SPACER

$

$

Currently unavailable

71

Homelite JA443106

NUT - Lock 5/16-18
(Superseded to 81018)

$

$

Not available

72

Homelite 0110917

TRACTION SHAFT ASSEMBLY

$

$

Currently unavailable

73

Homelite 0110916

BUSHING

$

$

Currently unavailable

74

Homelite JA460028

PIN - Cotter 1/8 x 1

$

$

Currently unavailable

75

Homelite 0110918

NUT - Push 1/2

$

$

Currently unavailable

76

Homelite 0110946

DRIVE - Disc

$

$

Currently unavailable

77

Homelite 0110949

SHAFT - Traction Hex

$

$

Not available

78

Homelite 0110950

BEARING - Thrust

$

$

Not available

79

Homelite 0110951

SPRING

$

$

Currently unavailable

80

Homelite 0110963

SPRING - Traction

$

$

Currently unavailable

81

Homelite 0110964

ROD - Traction

$

$

Currently unavailable

82

Homelite 0110962

BRACKET - Traction Spring

$

$

Currently unavailable

83

Homelite 0111056

PIN - Spring 1/8 x 1 3/8

$

$

Currently unavailable

84

Homelite 0111055

PIN - Spring 1/8 x 1/2

$

$

Currently unavailable

85

Homelite 0111051

PIN - Cotter 3/32 x 3/4

$

$

Currently unavailable

86

Homelite JA400114

BOLT - 1/4-20 x 1 1/4
(Superseded to UP05933)

$

$

Not available

87

Homelite JA444708

NUT - Lock 1/4-20

$

$

Currently unavailable

88

Homelite 0110914

BEARING - Axle

$

$

Currently unavailable

89

Homelite 0110960

AXLE

$

$

Currently unavailable

90

Homelite 0110961

GEAR - 48 Tooth

$

$

Currently unavailable

91

Homelite 0111032

BOLT - 1/4-20 x 2 3/4

$

$

Currently unavailable

92

Homelite 0110982

WASHER

$

$

Not available

93

Homelite 0111002

RING - Grip

$

$

Not available

94

Homelite 0111004

PIN - Clik

$

$

Currently unavailable
