5234 DE (54AE544-710) - Cub Cadet Compact Tractor Engine And Drive Shaft 1B075G & After Parts Diagram

Compact Tractor

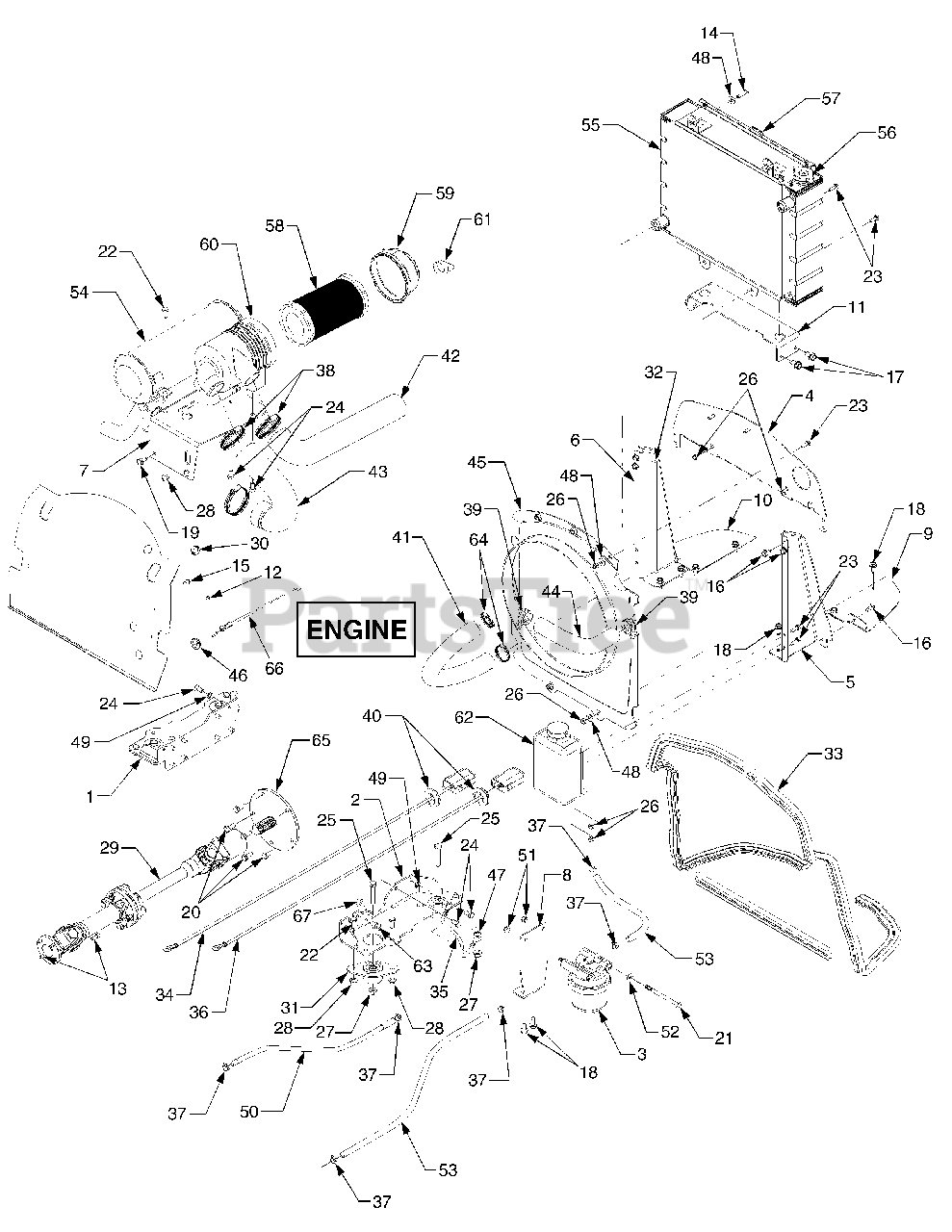

Engine And Drive Shaft 1B075G & After Parts Diagram

  • Title

Cub Cadet 629-3062B

Harness, Engine Wire not shown
(Superseded to 929-3062B)

$

$

Not available

1

Cub Cadet 603-0744-0637

Bracket, Engine LH

$

$

Not available

2

Cub Cadet 603-0745-0637

Bracket, Engine RH

$

$

Not available

3

Cub Cadet 651-04044

Filter Assembly, Fuel
(Superseded to 951-04044)

$

$

Not available

3

Cub Cadet 759-04027

Filter Element

$71.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-3483

Plate, Radiator Baffle

$

$

Not available

4

Cub Cadet 777S30631

Graphic, Fan Warning

$

$

Not available

4

Cub Cadet 777S30633

Graphic, Warning

$

$

Not available

5

Cub Cadet 703-3484

Bracket, Radiator Mtg. RH

$

$

Not available

5

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

6

Cub Cadet 703-3485

Bracket, Radiator Mtg. LH

$

$

Not available

6

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

7

Cub Cadet 703-3486

Bracket, Muffler Mtg.

$

$

Not available

8

Cub Cadet 703-05454

Bracket, Fuel Filter Mtg.

Variations

Cub Cadet 703-05454-0637

BRACKET-FUEL FILTER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-05141B

Plate, Baffle RH

Variations

Cub Cadet 703-05141B-0637

BAFFLE PLATE (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-05140B

Plate, Baffle, LH

Variations

Cub Cadet 703-05140B-0637

BAFFLE PLATE (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-3741

Bracket, Radiator Mtg.

$

$

Not available

12

Cub Cadet 710-0224

Screw, Hex Wash Hd Tapp 10-16 x .5
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3218

Screw, Socket Hd. Cap, 1/4-20 x .62 GR8

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0597

Screw, Hex Cap 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 19

0

15

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .5

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16 x .75

$3.99

$

In Stock, Qty 8

0

18

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1376

Screw, Hex Cap, M8-1.25 x 16

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-1681

Screw, Hex Cap, M8-1.25 x 20

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0190

Screw, Hex Cap, 5/16-18 x 4.0 GR5

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3138

Screw, Hex Cap, M8-1.25 x 16

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3144

Screw, Hex Cap 3/8-16 x 2/0 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04064

Nut, Hx Insert Flange Lk, 1/4-20

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04065

Nut, Hx Insert Flange Lk, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04063

Nut, Hx Insert Flnge Lk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 717-04193

Shaft, Drive
(Superseded to 917-04193)

$801.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 720-0425

Plug, Cap

$

$

Not available

31

Cub Cadet 722-0262

Mount, Neoprene Engine

$58.99

$

In Stock, only 1 left!

0

32

Cub Cadet 722-3022

Tape, Foam, .625 wide 42in.
(Superseded to 722-3022A-12)

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-3061

Seal, Heat Baffle 96in.

$2.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 725-3281

Wire, Battery Pos.

$38.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 725-3283

Wire, Ground

$20.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 725-3287

Wire, Battery Neg.

$

$

Not available

37

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 726-0476

Clamp, Adjustable Hose

$11.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 726-04026

Clamp, Hose

$

$

Not available

40

Cub Cadet 731-04018

Grommet, Hose Guard

$

$

Not available

41

Cub Cadet 731-3304A

Hose, Radiator to Engine

$

$

Not available

42

Cub Cadet 731-3348

Hose, Air Filter

$

$

Not available

43

Cub Cadet 731-3349

Hose, Air Inlet

$

$

Not available

44

Cub Cadet 731-3350

Hose, Engine to Radiator

$

$

Not available

45

Cub Cadet 731-3363

Shroud, Fan

$

$

Not available

46

Cub Cadet 735-0226

Grommet, Rubber

$9.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0148

Washer, External Lock, 3/8

$3.49

$

In Stock, Qty 12

0

48

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

49

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 751-0535

Hose, Fuel Line 77in.

$

$

Currently unavailable

51

Cub Cadet 712-04063

Nut, Hx Insert Flnge Lk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 751-3130

Fuel Line, 5/16 ID 92in.

$30.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 751-3163

Muffler, Engine

$

$

Not available

55

Cub Cadet 751-3165

Radiator

$

$

Not available

55

Cub Cadet 722-0268

Grommet, Rubber Mtg.

$

$

Not available

56

Cub Cadet 751-3192

Cap, Radiator, 13psi
(Superseded to 759-04129)

$47.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 751-3193

Screen, Debris

$

$

Not available

58

Cub Cadet 751-3194

Element, Air Cleaner

$52.99

$

In Stock, Qty 5

0

59

Cub Cadet 751-3195

Cap, Air Cleaner

$53.99

$

In Stock, only 1 left!

0

60

Cub Cadet 751-3196

Cannister, Air Cleaner

$

$

Not available

61

Cub Cadet 751-3197

Nozzle, Air Cleaner

$35.99

$

In Stock, only 4 left!

0

62

Cub Cadet BS-825462

Bottle, Overflow

$108.99

$

Usually ships in 2-12 days

0

63

Cub Cadet 710-3206A

Screw, Hx Cap, M8-1.25:25 GR8

$3.99

$

In Stock, Qty 13

0

64

Cub Cadet 726-0132

Clamp, Hose

$14.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 603-04294

Plate, Flywheel
(Superseded to 603-04294-0637)

Variations

Cub Cadet 603-04294-0637

Flywheel Plate Assembly - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 746-3086A

Cable, Throttle

$

$

Not available

67

Cub Cadet 703-05200

Bracket, Pump Mtg.

$

$

Not available
