5234 DL (54AL544-710) - Cub Cadet Compact Tractor Camshaft And Valves Parts Diagram

Compact Tractor

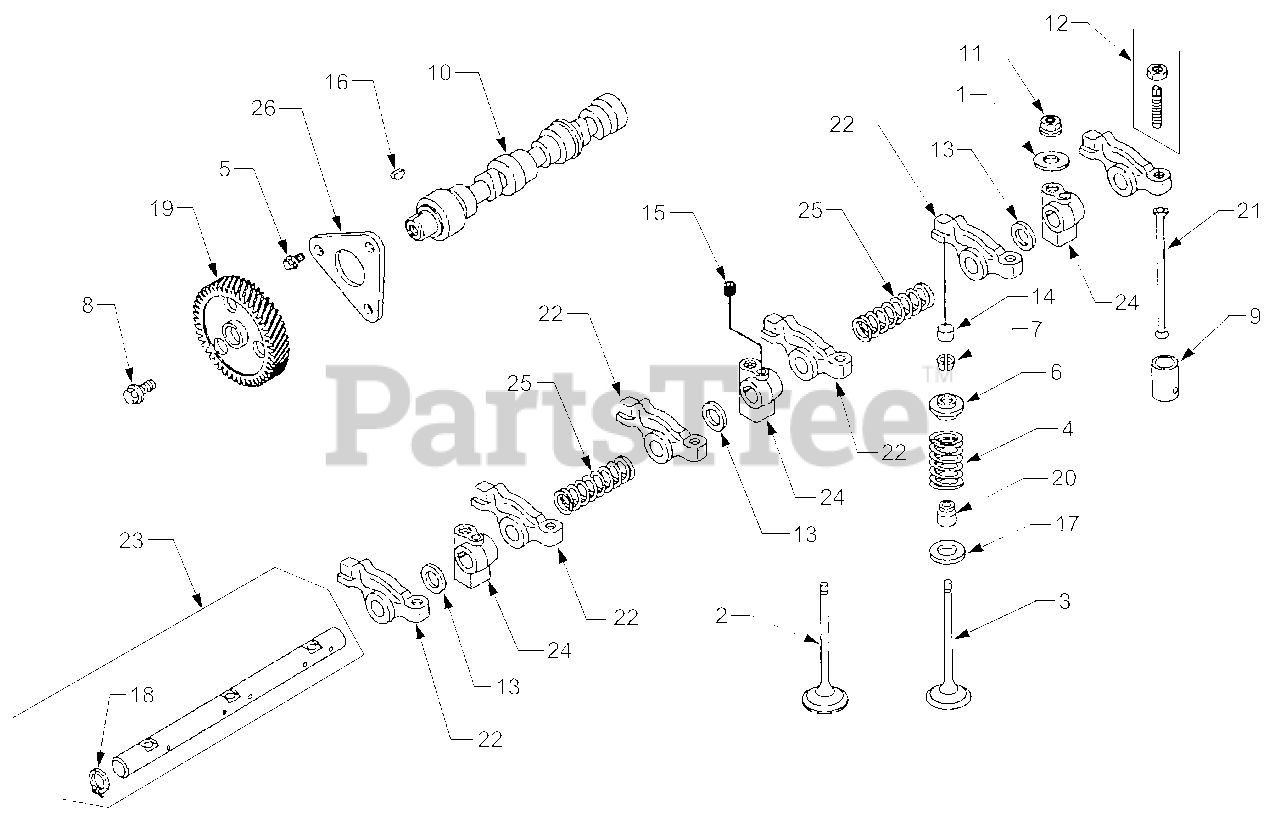

Camshaft And Valves Parts Diagram

  • Title

1

Cub Cadet BS-820177

Washer, Flat

$3.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-820404

Valve, Exhaust

$51.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-820403

Valve, Intake

$50.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820406

Spring, Valve

$9.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-820032

Screw, Hex, 6mm

$3.49

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-820111

Retainer, Valve

$8.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-825042

Keeper, Valve, Set of 2

$

$

Not available

8

Cub Cadet BS-820075

Screw, Metric

$8.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-820110

Tappet, Valve

$26.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-820388

Camshaft

$260.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-820070

Nut, Hex Metric

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet BS-825041

Adjuster, Rocker Arm

$13.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-820065

Washer, Spacer

$5.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-820113

Cap, Valve

$9.49

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820105

Screw, Metric

$4.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-691639

Key, Timing

$4.49

$

In Stock, only 3 left!

0

17

Cub Cadet BS-820112

Seat, Valve Spring

$13.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-820003

Retainer

$5.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-820613

Gear, Cam

$127.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-820405

Seal, Valve

$12.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-820422

Rod, Push

$21.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-820387

Arm, Rocker

$83.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-825093

Shaft, Rocker Arm

$

$

Not available

24

Cub Cadet BS-820106

Support, Rocker Arm

$35.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-820044

Spring, Rocker Shaft

$5.49

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-820118

Retainer, Camshaft

$17.99

$

Usually ships in 2-12 days

0
