5234 DL (54AL544-710) - Cub Cadet Compact Tractor Seat Parts Diagram

Compact Tractor

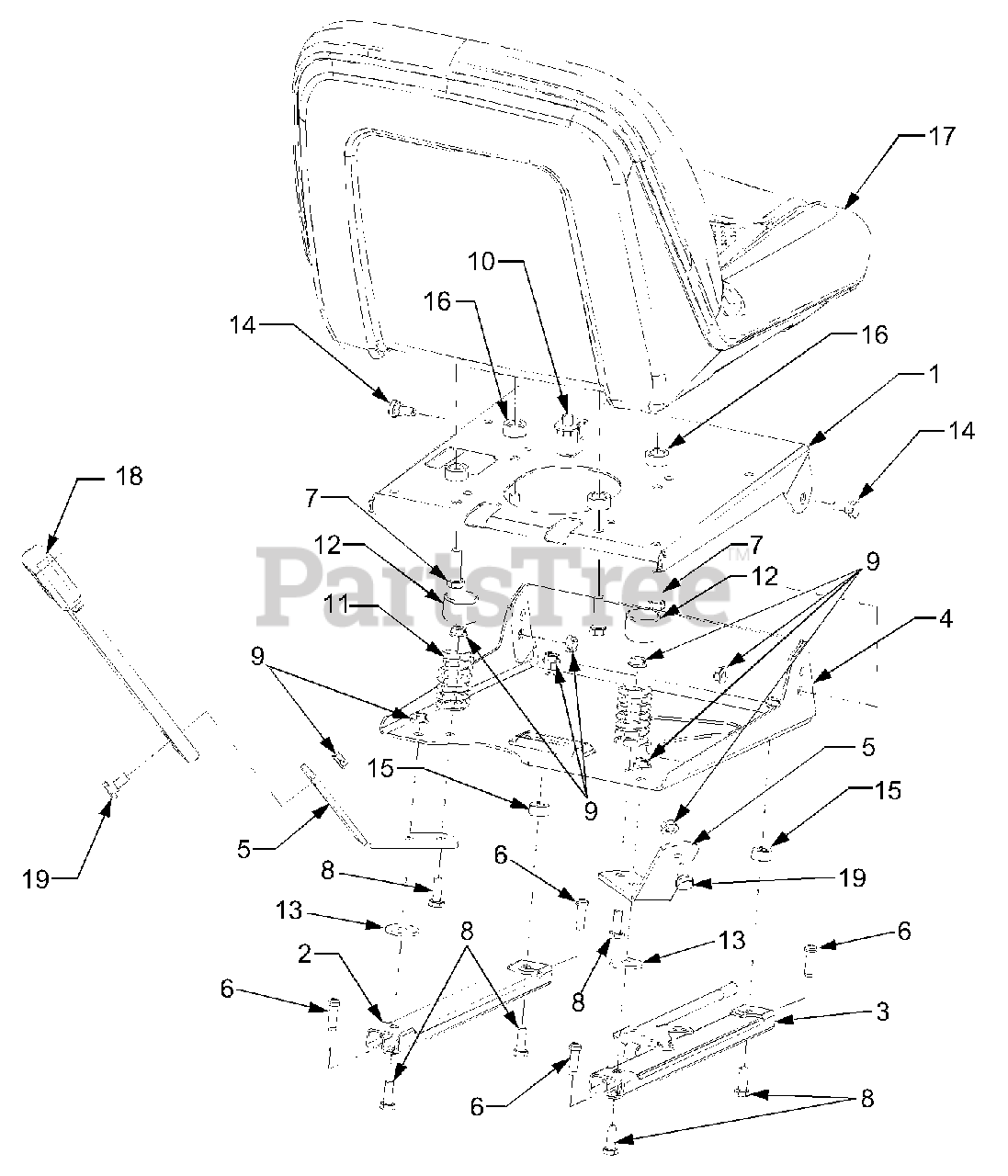

Seat Parts Diagram

  • Title

1

Cub Cadet 703-1812A-0716

Bracket, Seat Pivot

$

$

Not available

2

Cub Cadet 703-3208

Track, Seat - w/o Latch

$68.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-3431

Track, Seat - w/Latch

$

$

Not available

4

Cub Cadet 703-4149-0716

Bracket, Seat Support

$

$

Not available

5

Cub Cadet 703-4151-0637

Bracket, Seat Belt

$

$

Not available

6

Cub Cadet 710-1669

Screw, Pan Hd. Mach. 5/16-18 x 1.0

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-3167

Switch, Seat, N/O
(Superseded to 925-3167)

$13.99

$

In Stock, Qty 5

0

11

Cub Cadet 732-0735

Spring, Compression
(Superseded to 732-0735A)

$27.99

$

In Stock, Qty 8

0

12

Cub Cadet 735-04039

Cap, Spring

$

$

Not available

13

Cub Cadet 736-0343

Washer, Flat, .33 x 1.25 x .12 .

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 738-0140

Screw, Shoulder, .435 x .178:5/16-18

$5.49

$

In Stock, Qty 17

0

15

Cub Cadet 750-0258

Spacer, .315 x .75 x .375

$10.99

$

In Stock, Qty 12

0

16

Cub Cadet 750-04247

Spacer, .505 x .88 x .44

$

$

Not available

17

Cub Cadet 757-04005

Seat, High Back
(Superseded to 957-04023)

$

$

Not available

Cub Cadet 777D06883

Graphic, CubCadet

$16.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, USA

$

$

Not available

18

Cub Cadet 757-3013

Belt Assembly, Seat

$

$

Not available

19

Cub Cadet 725-0154

Tie, Push Mnt. Cable

$

$

Currently unavailable
