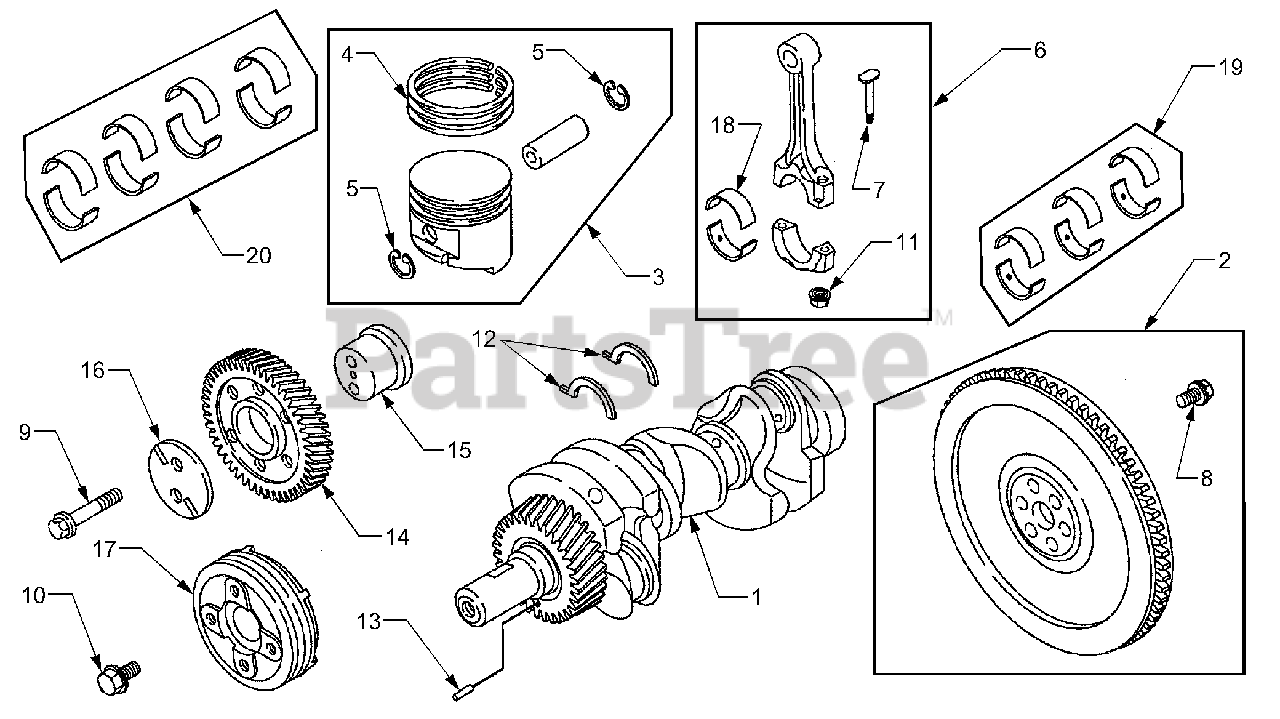

5234 DL (54BL544-710) - Cub Cadet Compact Tractor Crankshaft, Pistons & Flywheel Parts Diagram

Compact Tractor

Crankshaft, Pistons & Flywheel Parts Diagram

  • Title

1

Cub Cadet BS-825552

Crankshaft

$1709.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-825303

Flywheel

$498.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-825354

Piston Assembly, Standard

$

$

Not available

Cub Cadet BS-825355

Piston Assembly, .010 Oversize

$

$

Not available

4

Cub Cadet BS-825187

Ring Set, Standard

$204.99

$

In Stock, only 2 left!

0

Cub Cadet BS-825188

Ring Set, .010 Oversize

$204.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-820402

Lock Ring, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-825171

Rod, Connecting

$

$

Not available

7

Cub Cadet BS-820128

Screw, Connecting Rod

$5.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-820080

Screw, Hex, 10mm

$7.49

$

In Stock, Qty 6

0

9

Cub Cadet BS-820081

Screw, Hex, 8mm

$5.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-820079

Screw, Hex

$

$

Not available

11

Cub Cadet BS-820073

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820140

Washer, Thrust, Standard
(Superseded to BS-821295)

$30.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-820139

Washer, Thrust, .005 Oversize

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-820059

Pin, Locating

$7.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-820611

Gear, Drive

$160.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820116

Shaft, Gear

$76.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-820117

Plate, Idler Gear

$

$

Not available

17

Cub Cadet BS-820236

Pulley, Crankshaft

$

$

Not available

18

Cub Cadet BS-820142

Bearing, Rod Standard
(Superseded to BS-825737)

$83.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-825019

Bearing Set, Rod Standard
(Superseded to BS-825737)

$83.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-825060

Bearing Set, Rod, .010 Undersize

$

$

Not available

20

Cub Cadet BS-825040

Bearing Set, Main Standard
(Superseded to BS-821291)

$

$

Not available

Cub Cadet BS-825039

Bearing Set, Main, .010 Undersize

$

$

Not available
