5234 DL (54BL544-710) - Cub Cadet Compact Tractor Gear Housing Parts Diagram

Compact Tractor

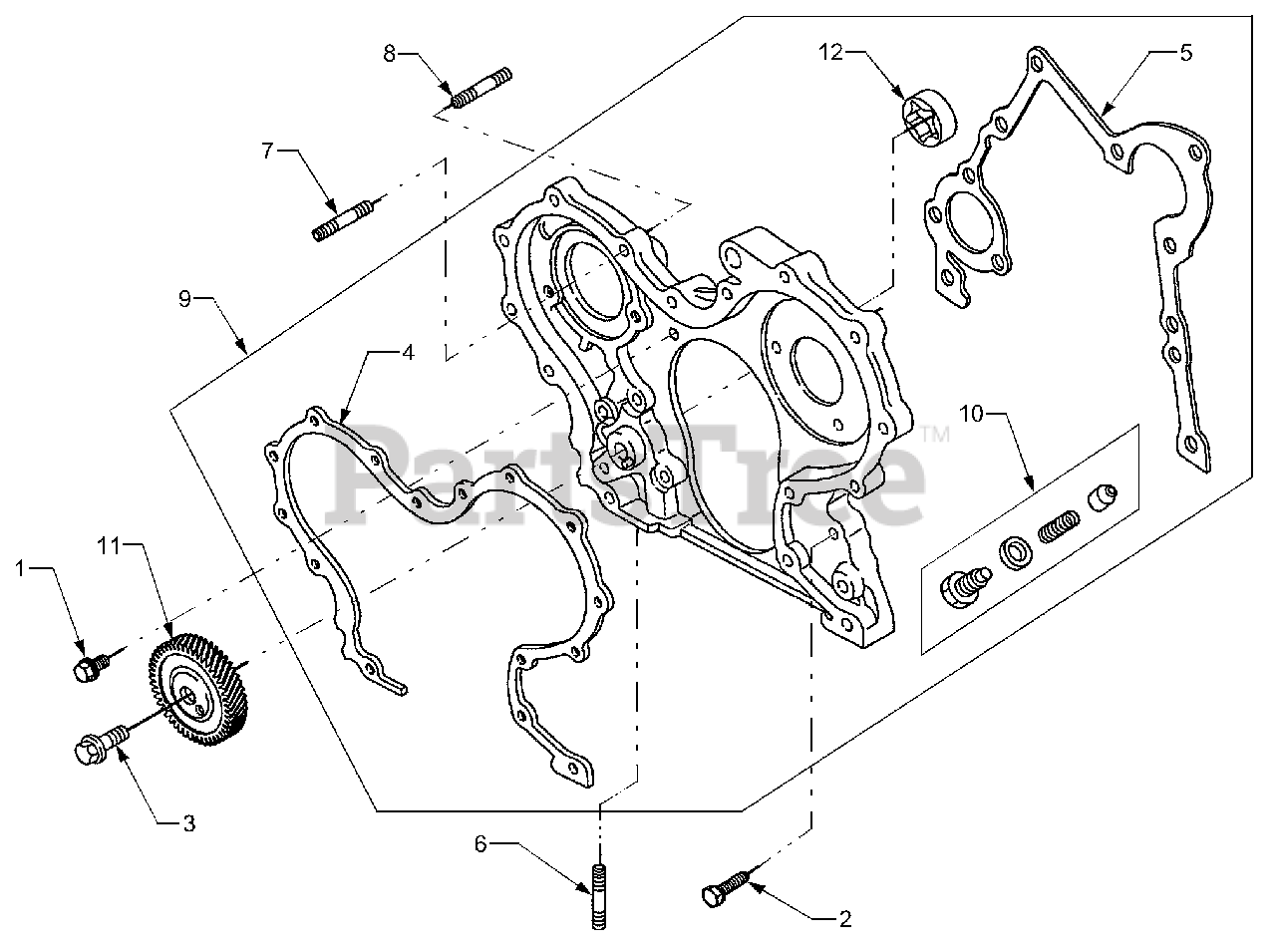

Gear Housing Parts Diagram

  • Title

1

Cub Cadet BS-820033

Screw, Hex, 6mm

$3.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-820030

Screw, Hex, 6mm

$3.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-820180

Screw, Hex, 8mm

$

$

Not available

4

Cub Cadet BS-820377

Gasket, Gear Cover

$32.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-820155

Gasket, Gear Cover

$32.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-820016

Stud, Metric

$5.49

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-820156

Stud, Metric

$

$

Not available

8

Cub Cadet BS-820426

Stud, Metric

$

$

Not available

9

Cub Cadet BS-825186

Housing, Gear

$664.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-825032

Valve, Oil Relief

$48.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-820615

Gear, Oil Pump Drive

$105.99

$

Usually ships in 2-12 days

0

12

Cub Cadet N/A

Pump. Oil

Note: Sold ONLY in Gear Housing (Ref. 9)

$

$

Currently unavailable
