5239 C - Lawn-Boy Walk-Behind Mower (SN: 400000001 - 499999999) (1974) Model 8232e Electric Start Self-Propelled With Grasscatcher Parts List Parts Diagram

Walk-Behind Mower

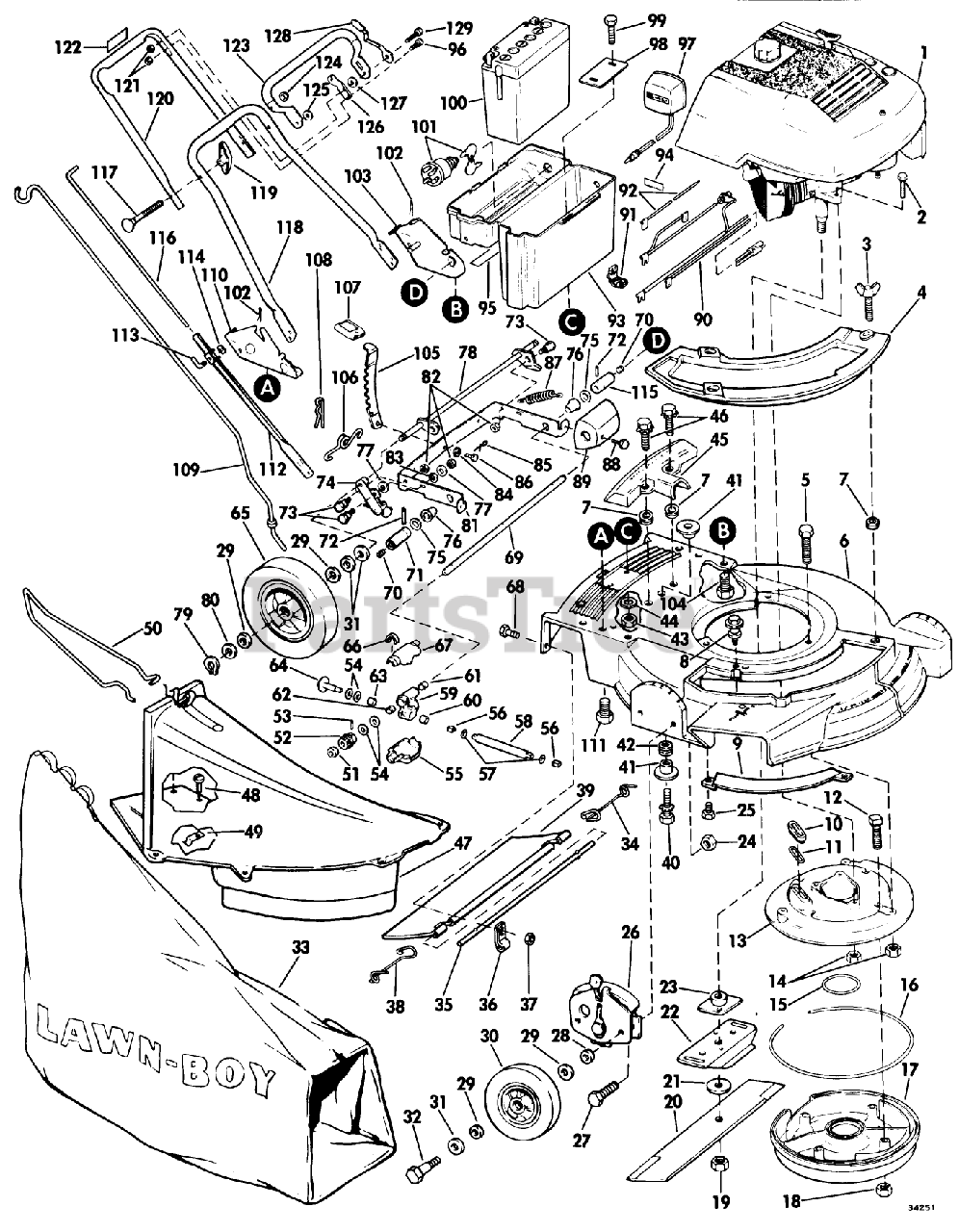

Model 8232e Electric Start Self-Propelled With Grasscatcher Parts List Parts Diagram

  • Title

1

See ENGINE, MAGNETO, STARTER AND CARBURETOR PARTS LIST MODELS USED ON: 8232E

Note: A complete engine, part no. 679929, D-640E is available for replacement on this mower. See Parts List for replacement parts for this engine.

$

$

Not available

1

See ENGINE, MAGNETO, STARTER AND CARBURETOR PARTS LIST MODELS USED ON: 8232E

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 603014

BOLT F

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 606733

WING SCREW LAWRE

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.99

$

In Stock, Qty 7

0

4

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$30.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 607601

SCREW V

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.99

$

In Stock, Qty 5

0

6

Lawn-Boy 679937

See Supercession: 684750
(Superseded to 684750)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1190.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 608175

BAR-TOE

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 602717

SLEEVE

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 604624

GASKET S

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 8

0

12

Lawn-Boy 607847

SCREW

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 607711

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 608311

NUT-LOCK F

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 607748

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 607600

Gasket Muffler (outside)
(Superseded to 604516)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 607599

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

LOCKNUT E

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

19

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 7

0

20

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$29.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 605058

WASHER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 15

0

22

Lawn-Boy 603541

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, Qty 11

0

24

Lawn-Boy 602830

NUT

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

26

Lawn-Boy 678462

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 605101

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 603620

WASHER WROUGHT

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 605255

WASHER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 679514

See Supercession: 678636
(Superseded to 678636)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, Qty 5

0

31

Lawn-Boy 605256

SPACER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 9

0

31

Lawn-Boy 605256

SPACER

Note: Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head

$2.99

$

In Stock, Qty 9

0

32

Lawn-Boy 603441

BOLT WHEEL

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 679934

ORD LB 89802 WHOLE GOODS

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 608161

CLAMP ROD KMC

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 603477

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 608173

DISCONTINUED
(Superseded to 608870)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 607606

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 607605

SPACER ECK PRES

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 307417

GROMMET

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 603477

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 602945

WASHER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 607655

COVER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$45.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 681107

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 607238

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 605664

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 607542

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 605255

WASHER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 607664

DISCONTINUED
(Superseded to 98-8319)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 311866

ROLL PIN

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

54

Lawn-Boy 608030

THRUST WASHER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

55

Lawn-Boy 608291

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 608563

BUSHING

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 303067

O Ring

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

58

Lawn-Boy 607654

See Supercession: 683129
(Superseded to 683129)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 679699

See Supercession: 683971
(Superseded to 683971)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 608287

See Supercession: 510505
(Superseded to 510505)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 608285

See Supercession: 117-3500
(Superseded to 117-3500)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

62

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

63

Lawn-Boy 510505

NEEDLE BEARING

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 607663

DISCONTINUED
(Superseded to 98-8319)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 679516

See Supercession: 682972
(Superseded to 682972)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$26.99

$

In Stock, only 1 left!

0

66

Lawn-Boy 608292

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 608289

GEAR COVER UPPER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 306487

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 679922

See Supercession: 679952
(Superseded to 679952)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 602926

GREASE PLUG

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$12.99

$

In Stock, Qty 7

0

71

Lawn-Boy 607658

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 606013

PIN

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 6

0

73

Lawn-Boy 602984

BOLT RB&W

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$102.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy 603037

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

76

Lawn-Boy 678782

See Supercession: 681904
(Superseded to 681904)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

77

Lawn-Boy 603093

WASHER S

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 679669

See Supercession: 681534
(Superseded to 681534)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

79

Lawn-Boy 607676

RET RING

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

80

Lawn-Boy 605256

SPACER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 9

0

81

Lawn-Boy 607768

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 602201

STOP NUT

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 603123

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 606116

WASHER SPRING LAR

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

85

Lawn-Boy 603036

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

86

Lawn-Boy 606115

PIN

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

87

Lawn-Boy 603003

SPRING

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 607783

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

89

Lawn-Boy 607767

GUARD

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

In Stock, only 1 left!

0

90

Lawn-Boy 679677

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

91

Lawn-Boy 206341

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

92

Lawn-Boy 679739

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

93

Lawn-Boy 681127

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

94

Lawn-Boy 608661

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

95

Lawn-Boy 608396

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

96

Lawn-Boy 306483

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

97

Lawn-Boy 679346

BATTERY CHARGER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

98

Lawn-Boy 607701

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

99

Lawn-Boy 606104

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

100

Lawn-Boy 681124

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

101

Lawn-Boy 679129

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

102

Lawn-Boy 605803

HAIR PIN

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

103

Lawn-Boy 679668

See Supercession: 681781
(Superseded to 681781)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

104

Lawn-Boy 607188

SCREW

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

105

Lawn-Boy 607673

LEVER

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

106

Lawn-Boy 605802

SPRING N.A.S

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, Qty 7

0

107

Lawn-Boy 607562

KNOB

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

108

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

109

Lawn-Boy 607561

ROD GRASSBAG

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

110

Lawn-Boy 679667

See Supercession: 681780
(Superseded to 681780)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$101.99

$

Usually ships in 3-6 days

0

111

Lawn-Boy 607188

SCREW

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

112

Lawn-Boy 679661

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

113

Lawn-Boy 602993

See Supercession: 603699
(Superseded to 603699)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

114

Lawn-Boy 602992

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

115

Lawn-Boy 607657

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

116

Lawn-Boy 607660

ROD CONTROL

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

117

Lawn-Boy 607543

See Supercession: 611184
(Superseded to 611184)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

118

Lawn-Boy 607545

DISCONTINUED
(Superseded to 612787)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

119

Lawn-Boy 607544

NUT-WING

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

120

Lawn-Boy 607669

HANDLE

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$84.99

$

Usually ships in 3-6 days

0

121

Lawn-Boy 603477

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

122

Lawn-Boy 606925

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

123

Lawn-Boy 679664

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

124

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 16

0

125

Lawn-Boy 306359

WASHER M

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

126

Lawn-Boy 607666

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

127

Lawn-Boy 302474

DISCONTINUED

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

128

Lawn-Boy 679640

KNOB & SPRING

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

129

Lawn-Boy 607665

BOLT RB&W

Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0
