524 (1690586) - Simplicity Snowbuster 24" Snow Thrower, 5hp Frame & Transmission Group Parts Diagram

Snowbuster 24" Snow Thrower, 5hp

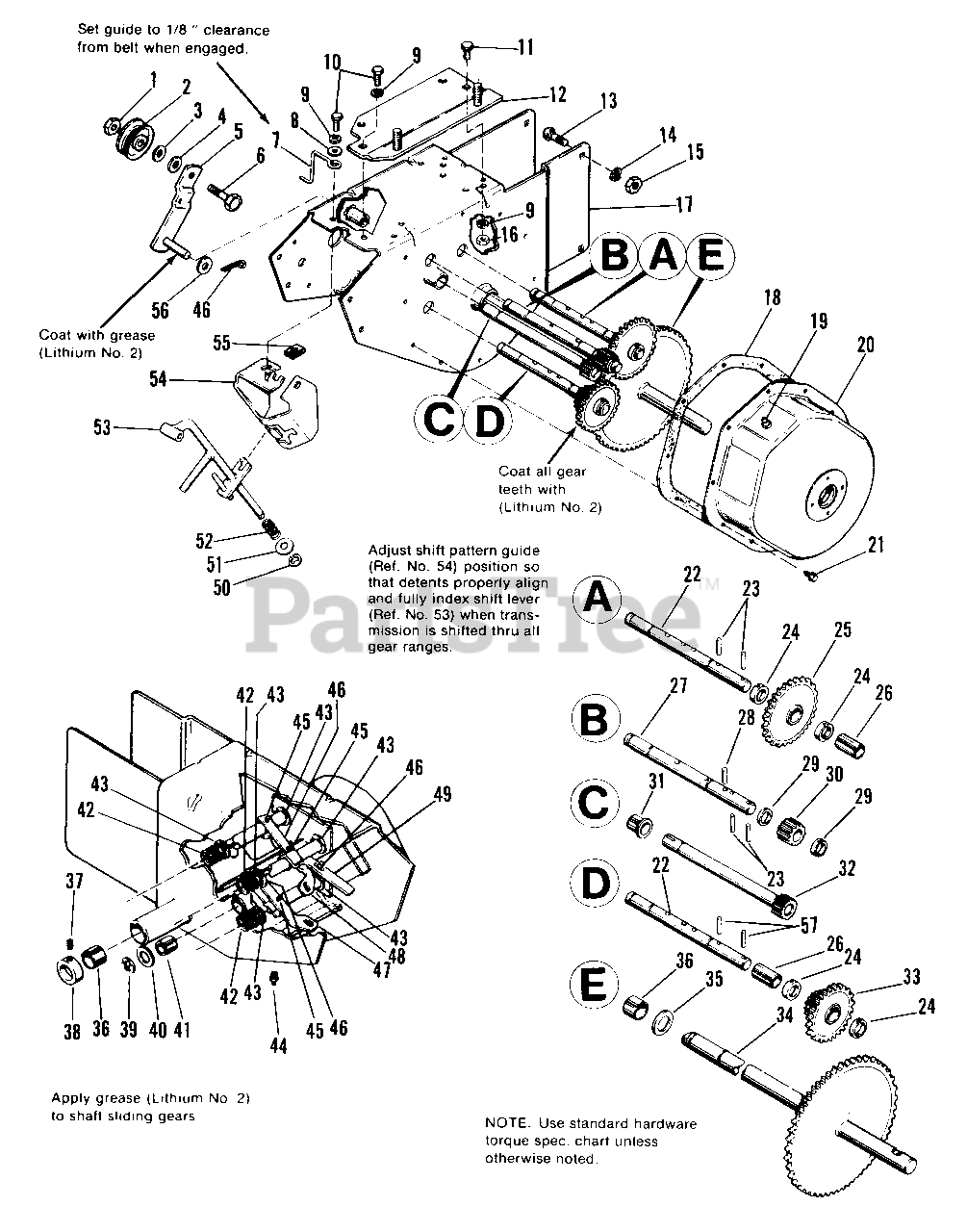

Frame & Transmission Group Parts Diagram

  • Title

1

Simplicity 2830645

LOCKNUT, Hex, Flange, 3/8-16

$

$

Not available

2

Simplicity 1665427

PULLEY ASSY.

$

$

Not available

3

Simplicity 1666295

SPACER

$

$

Not available

4

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

5

Simplicity 170768

ARM ASSY., Idler

$

$

Not available

6

Simplicity 162053

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

7

Simplicity 172789

STOP, Belt

$

$

Not available

8

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

9

Simplicity 1917356SM

WASHER, Plain, 5/16 (Qty. 2 used on 524 & 724)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

11

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (828 & 1028)

$

$

Not available

12

Simplicity 1664463

SUPPORT ASSY., Engine (828 & 1028)

$

$

Not available

13

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

15

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

16

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (828 & 1028)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1664496

ENGINE BASE & FRAME ASSY.

$

$

Not available

18

Simplicity 158524

GASKET

$

$

Not available

19

Simplicity 928724

FITTING, Grease

$

$

Not available

20

Simplicity 161265

CASE ASSY., Gear

$

$

Not available

21

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

22

Simplicity 2158541

SHAFT, Intermediate

$

$

Not available

23

Simplicity 2818111

PIN, Spring, 1/8 x 1

$

$

Not available

24

Simplicity 158561

COLLAR, Thrust

$

$

Not available

25

Simplicity 158542

GEAR & BEARING ASSY.

$

$

Not available

26

Simplicity 2158544SM

BEARING

$

$

Not available

27

Simplicity 158534

SHAFT, Reverse

$

$

Not available

28

Simplicity 2821450

PIN, Spring, 5/32 x 1

$

$

Not available

29

Simplicity 158562

COLLAR, Thrust

$

$

Not available

30

Simplicity 158557

PINION, Reverse

$

$

Not available

31

Simplicity 158569

BEARING, Bronze

$

$

Not available

32

Simplicity 172782

SHAFT ASSY., Gear

$

$

Not available

33

Simplicity 158570

GEAR & BEARING ASSY.

$

$

Not available

34

Simplicity 161221

AXLE & GEAR ASSY.

$

$

Not available

35

Simplicity 2118252SM

WASHER, Special

$4.49

$

In Stock, Qty 10

0

36

Simplicity 158363

BUSHING

$

$

Not available

37

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

38

Simplicity 158357

COLLAR, Set

$

$

Not available

39

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

40

Simplicity 2153079

WASHER

$

$

Not available

41

Simplicity 2156064SM

BUSHING

$22.99

$

Usually ships in 2-12 days

0

42

Simplicity 158578

SPRING

$

$

Not available

43

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

44

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

45

Simplicity 2819314

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

46

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

47

Simplicity 171169

LINK, Shift, High

$

$

Not available

48

Simplicity 171237

LINK, Shift, Lo

$

$

Not available

49

Simplicity 161227

LINK, Shift, Reverse

$

$

Not available

50

Simplicity 2157288

RING, Retaining

$

$

Not available

51

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

52

Simplicity 161290

SPRING

$

$

Not available

53

Simplicity 171396

ROD ASSY., Shift, Lower

$

$

Not available

54

Simplicity 171391

GUIDE, Pattern

$

$

Not available

55

Simplicity 2830655

NUT, Retainer, 5/16-18

$

$

Not available

56

Simplicity 2158645

WASHER

$

$

Not available

57

Simplicity 2816168SM

PIN, Spring, 1/8 x 3/4

$4.49

$

In Stock, Qty 20+

0
