524 (317-550-100) - Cub Cadet 24" Snow Thrower (1987) Snow Thrower Part 4 Parts Diagram

24" Snow Thrower

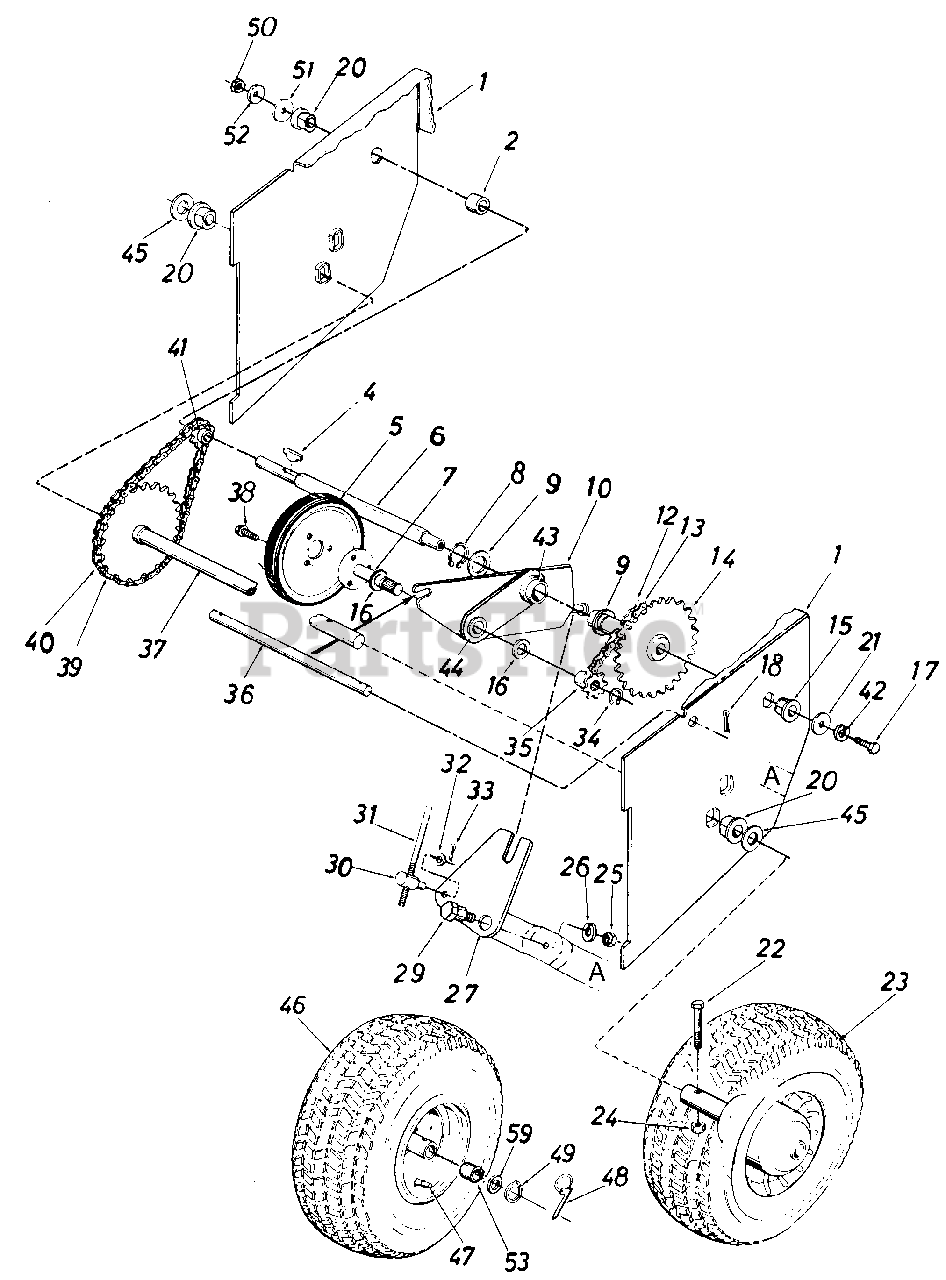

Snow Thrower Part 4 Parts Diagram

  • Title

1

Cub Cadet 05874

FRAME ASSY

Note: Color Code 498

$

$

Currently unavailable

2

Cub Cadet 750-0499

SPACER

$25.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 714-0129

KEY-HI-PRO #4-3/32X5/8 DIA-HDN
(Superseded to 914-0129)

$

$

Not available

5

Cub Cadet 05080

WHEEL ASSY-FRICTION
(Superseded to 05080AP)

$32.99

$

In Stock, only 2 left!

0

6

Cub Cadet 738-0496

SHAFT-HEX

$

$

Not available

7

Cub Cadet 05883

PLATE ASSY-FRICTION WHEEL MTG

$

$

Not available

8

Cub Cadet 716-0102

RING-SNAP FOR 1.00 DIA SHAFT

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet 736-0163

WASHER-FL-1.03 ID X 1.62 X .03 HD

$4.99

$

In Stock, Qty 9

0

10

Cub Cadet 05880

BRACKET ASSY-SLIDING

$

$

Not available

12

Cub Cadet 713-0285

#41 CHAIN 1/2" PITCH X 35 LINKS

$

$

Not available

13

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

$

$

Not available

14

Cub Cadet 713-0281

SPROCKET ASSY-32T

$

$

Currently unavailable

15

Cub Cadet 741-0225

BEARING-FLANGE
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0290

WASHER-FL

$7.49

$

In Stock, only 4 left!

0

17

Cub Cadet 710-0538

SCREW-HEX 5/16-18 X .62

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 748-0151

BEARING-FLANGE W/FLATS
(Superseded to 941-0490)

$14.99

$

In Stock, only 4 left!

0

21

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.99

$

In Stock, Qty 18

0

22

Cub Cadet 710-0624

SCREW-5/16-24 X 1.5

Note: (420)

$6.49

$

Usually ships in 3-6 days

0

23

Note: Wheel Ass'y (420)

$

$

Not available

Cub Cadet 734-1236

WHEEL ASSY W/TIRE

Note: (420)

$

$

Currently unavailable

Cub Cadet 734-1237

WHEEL RIM

Note: (420)

$

$

Currently unavailable

Cub Cadet 734-0210

TIRE-PNEU 4.10/3.50-4
(Superseded to 734-1598-0901)

Note: (420)

$126.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-0273

NUT-HEX INS JAM LOCK 5/16-24
(Superseded to 912-0273)

Note: (420)

$4.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

26

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 11

0

27

Cub Cadet 05898

BRACKET-LINKAGE

$

$

Not available

29

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

$11.99

$

In Stock, only 3 left!

0

30

Cub Cadet 711-0628

FERRULE-ADJ

$

$

Not available

31

Cub Cadet 747-0356

ROD-SHIFT

$

$

Not available

32

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 716-0145

RING-C SNAP
(Superseded to 716-0397)

$

$

Not available

35

Cub Cadet 713-0280

SPROCKET-7T

$

$

Not available

36

Cub Cadet 738-0497

SHAFT

$

$

Currently unavailable

37

Cub Cadet 713-0283

SPROCKET ASSY-28T

Note: (420)

$

$

Currently unavailable

Cub Cadet 713-0323

AXLE ASSY-WHEEL

Note: (524)

$

$

Not available

38

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$

$

Not available

39

Cub Cadet 713-0270

CHAIN 1/2" PITCH X 43 LINK

Note: (420)

$

$

Not available

Cub Cadet 713-0287

#420 CHAIN 1/2" PITCH X 39 LINKS

Note: (524)

$

$

Not available

40

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

Note: (420)

$

$

Not available

Cub Cadet 713-0154

#420 MASTER LINK 1/2 PITCH TYPE II
(Superseded to 913-0154)

Note: (524)

$

$

Not available

41

Cub Cadet 748-0204

SPROCKET-CENTER #41-8T

$

$

Not available

42

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 741-0476

BEARING
(Superseded to 741-04488)

$9.99

$

In Stock, Qty 20+

0

44

Cub Cadet 748-0184

BEARING-FLANGE .630 ID

$

$

Not available

45

Cub Cadet 736-0188

WASHER-FL-.760ID X 1.49OD X .06HDN

$4.99

$

In Stock, Qty 20+

0

46

Note: Wheel Assembly (524)

$

$

Not available

Cub Cadet 734-1253

WHEEL ASSY W/TIRE-13X5.0

$

$

Currently unavailable

Cub Cadet 734-1147

WHEEL RIM

$

$

Currently unavailable

Cub Cadet 734-0298

TIRE-TUBELESS-13 X 5.00-6
(Superseded to 734-0298-0901)

Variations

734-0298-0901

Cub Cadet 734-0298-0901

Tubeless Tire, 13 - Carlisle (0901)

$43.99

$

In Stock, only 2 left!

0

734-0298-0902

Cub Cadet 734-0298-0902

Tubeless Tire, 13 - Dico (0902)

$43.99

$

In Stock, only 2 left!

0

734-0298-0905

Cub Cadet 734-0298-0905

Tubeless Tire, 13 - Duro (0905)

$43.99

$

In Stock, only 2 left!

0

$43.99

$

In Stock, only 2 left!

0

47

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 714-0143

PIN-CLICK-5/16 DIA X 1.75LG
(Superseded to 714-0143A)

Note: (524)

$6.99

$

In Stock, only 2 left!

0

49

Cub Cadet 716-0101

RING-SNAP FOR .750 DIA SHAFT

Note: (524)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0200

NUT-HEX INS L-1/2-20
(Superseded to 712-0200A)

$4.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0257

WASHER-FL-.546 X 1.28 X .090
(Superseded to 936-0179)

$4.99

$

In Stock, Qty 12

0

52

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0401

BEARING-SLEEVE
(Superseded to 941-0401)

Note: (524)

$7.99

$

In Stock, Qty 5

0

59

Cub Cadet 736-0287

WASHER-FL .794ID X 1.240 X .060

Note: (524)

$4.49

$

In Stock, Qty 13

0
