524 (31AE600E382) - Cub Cadet 24" Gold Series Snow Thrower (1998) Gear Assembly Parts Diagram

24" Gold Series Snow Thrower

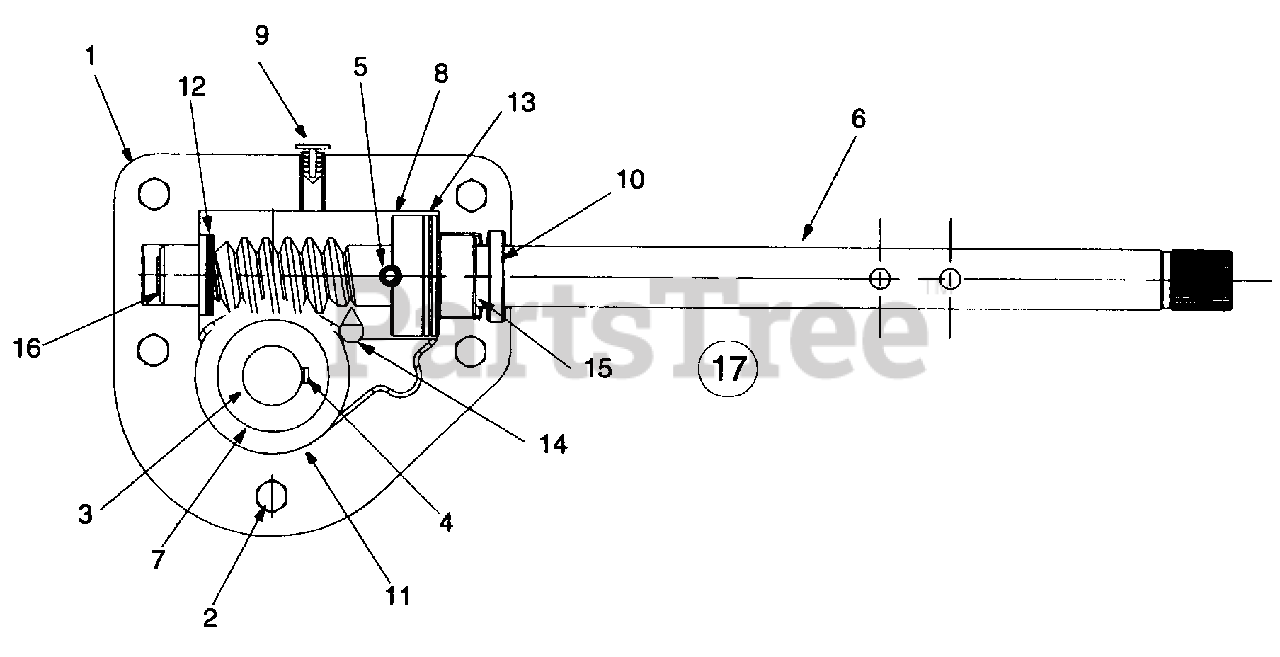

Gear Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0123

Housing - L.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 12

0

Cub Cadet 618-0124

Housing - R.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 14

0

2

Cub Cadet 710-0642

Hex Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 711-0908

Spiral Axle 24"
(Superseded to 711-0908A)

$

$

Not available

4

Cub Cadet 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 715-0143

Pin-Spiral

$4.99

$

In Stock, Qty 14

0

6

Cub Cadet 717-0526

Shaft-Worm
(Superseded to 717P0526)

$108.99

$

In Stock, only 1 left!

0

7

Cub Cadet 717-0528

Gear-Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

Cub Cadet 718-0186

Collar-Thrust

$8.49

$

In Stock, only 2 left!

0

9

Cub Cadet 721-0325

Plug

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 721-0327

Seal-Oil

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0351

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0369

Washer-Flat

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 736-0445

Washer-Flat

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 741-0662

Bearing-Flange

$10.99

$

In Stock, Qty 20+

0

16

Cub Cadet 741-0663

Bearing-Flange

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 618-0120

Ass'y. Complete 24"
(Superseded to 918-0414B)

$

$

Not available
