524 R - Husqvarna Brush Cutter (2020-11) CYLINDER & CRANKCASE Parts Diagram

Brush Cutter

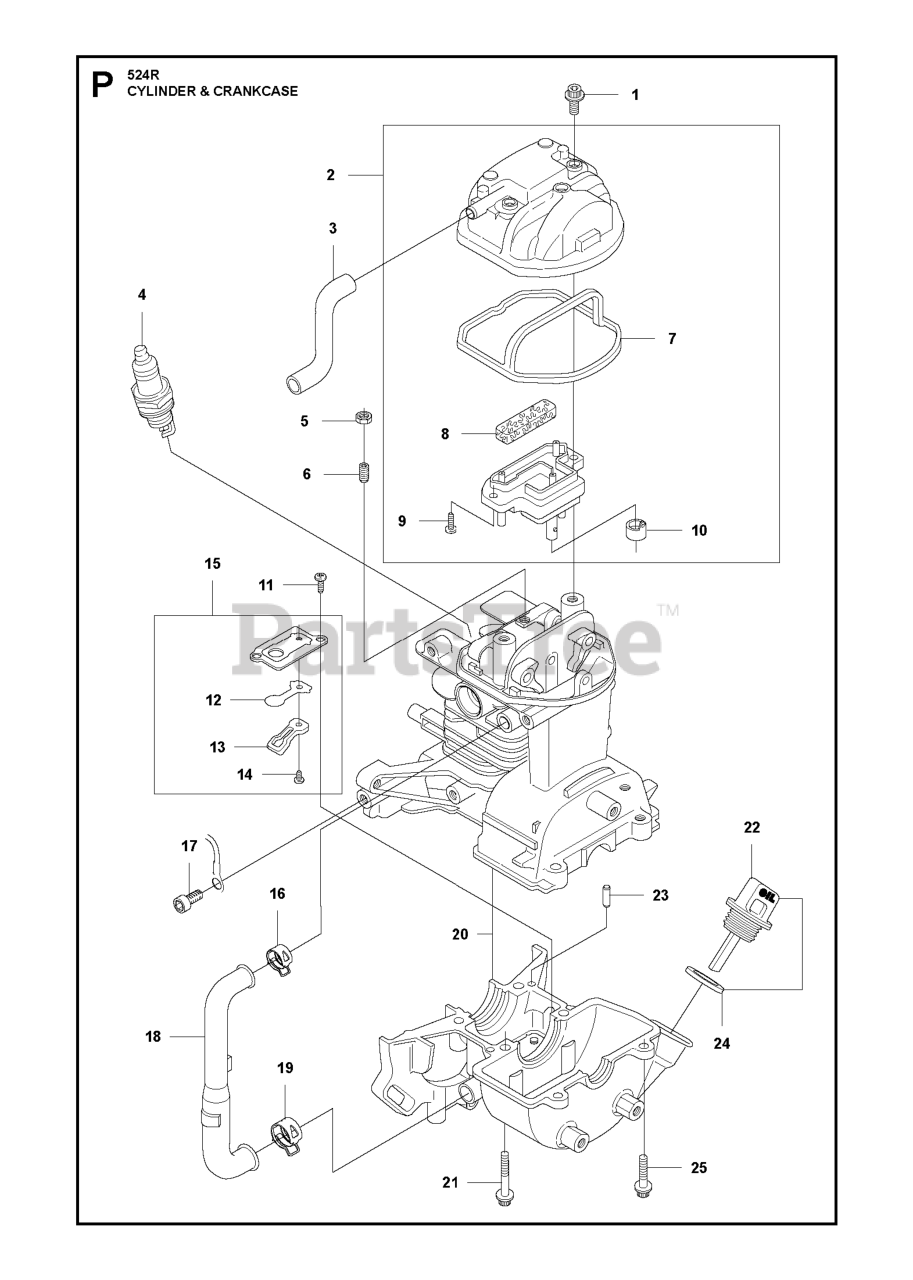

CYLINDER & CRANKCASE Parts Diagram

  • Title

23

Husqvarna 531008624

PIN

$

$

Not available

4

Husqvarna 531008613

SPARK PLUG

Note: NGK CMR4H

$

$

Not available

5

Husqvarna 531008621

NUT

$

$

Not available

14

Husqvarna 531008622

SCREW

$

$

Not available

6

Husqvarna 531008619

SCREW

$

$

Not available

8

Husqvarna 531008725

FILTER

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 531008623

SCREW

$

$

Not available

15

Husqvarna 531008727

VALVE

$28.99

$

Usually ships in 3-10 days

0

20

Husqvarna 531008721

CRANKCASE / CYLINDER

$375.99

$

Usually ships in 3-10 days

0

3

Husqvarna 531008612

HOSE

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 531008615

CMR6H NGK SPARK PLUG

Note: NGK CMR6H

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 531008724

SEALING

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 531008726

HOSE

$

$

Not available

7

Husqvarna 531008723

GASKET

$9.99

$

In Stock, only 2 left!

0

12

Husqvarna 531008608

BLADE

$

$

Not available

16

Husqvarna 531008625

CLIP

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 725532555

SCREW MC6S 5X10

$7.99

$

In Stock, Qty 9

0

2

Husqvarna 531008722

COVER

$113.99

$

In Stock, only 1 left!

0

4

Husqvarna 531008614

CMR5H NGK SPARK PLUG

Note: NGK CMR5H (STD)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 531008610

GAUGE

$37.99

$

In Stock, only 3 left!

0

11

Husqvarna 531008618

SCREW

$

$

Not available

21

Husqvarna 531008617

SCREW

$

$

Not available

25

Husqvarna 531008616

SCREW

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 531008609

MOVEMENT LIMITER

$

$

Not available

1

Husqvarna 531008620

SCREW

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 531008626

CLIP

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 531008611

GASKET

$11.99

$

Usually ships in 3-10 days

0
