524 S (961930001-00) - Husqvarna 24" Snow Blower (2006-06) Handles Parts Diagram

24" Snow Blower

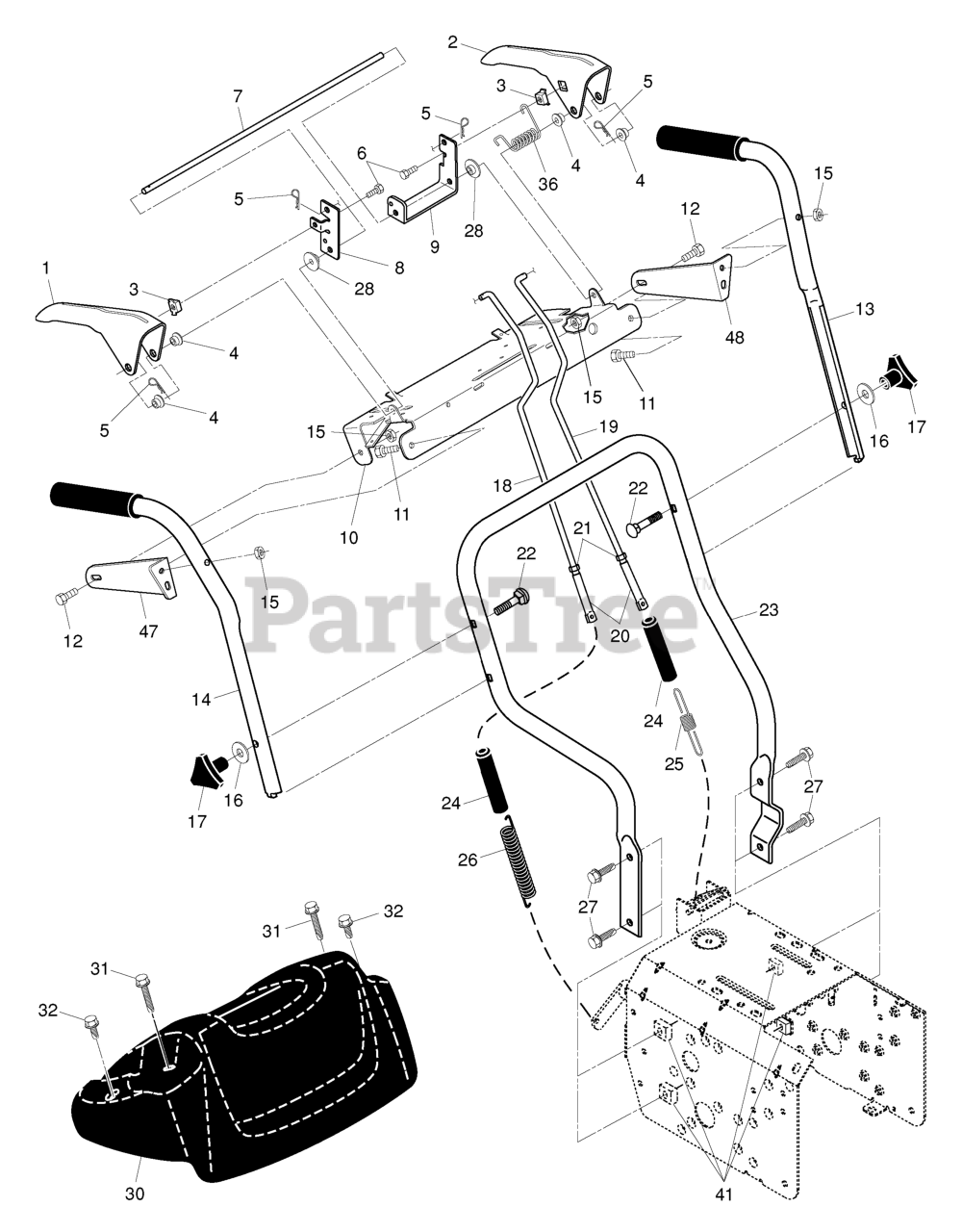

Handles Parts Diagram

  • Title

1

Husqvarna 532184110

Lever, Auger Control, RH
(Superseded to 532411423)

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532184109

Lever, Traction Drive Control, LH
(Superseded to 532411391)

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532179439

Nut, Cage 1/4-20
(Superseded to 532199639)

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532178888

Bushing, Flange

$

$

Not available

5

Husqvarna 532169675

Retainer, Hairpin

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 532180402

Screw, Hex Head 1/4-20 x 3/4
(Superseded to 532199640)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178652

Rod, Interlock

$10.99

$

In Stock, only 1 left!

0

8

Husqvarna 532199575

Arm, Traction Rod
(Superseded to 532196334)

$

$

Not available

9

Husqvarna 532199576

Arm, Impeller Rod
(Superseded to 532429098)

$

$

Not available

10

Husqvarna 532199531

Panel, Control
(Superseded to 532196619)

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

12

Husqvarna 874780512

Screw, Hex Head 5/16-18
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532199637

Handle Assembly, LH

Note: (Includes Grip)

$

$

Not available

14

Husqvarna 532199636

Handle Assembly, RH

Note: (Includes Grip)

$

$

Not available

15

Husqvarna 873800500

Nut, Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532178899

Knob, Handle

$8.99

$

In Stock, Qty 6

0

18

Husqvarna 532184594

Rod, Auger Control

$66.99

$

In Stock, only 1 left!

0

19

Husqvarna 532193081

Rod, Traction Control

$

$

Not available

20

Husqvarna 532180428

End, Control Rod

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873350500

Nut, Hex, Jam 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 872120618

Bolt, Carriage 3/8-16 x 2-1/4

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532184087

Handle Tube, Lower

$

$

Not available

24

Husqvarna 532180447

Sleeve, Spring

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532180926

Spring, Traction Drive

$7.49

$

In Stock, Qty 7

0

26

Husqvarna 532178669

Spring, Auger Control

$8.99

$

In Stock, Qty 6

0

27

Husqvarna 871210616

Screw, Hex Head 3/8-16 x 1

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 532175331

Bushing, Pivot
(Superseded to 587343701)

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532183352

Console, Panel

$23.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532175262

Screw, Hex Head, Tapping #10-24 x 1-1/4

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 532184471

Screw, Hex Head, Tapping #10-24 x 1/2

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532178831

Spring, Torsion
(Superseded to 532443215)

$6.49

$

In Stock, only 2 left!

0

41

Husqvarna 532178890

Nut, Cage 3/8-16
(Superseded to 532178820)

$7.49

$

In Stock, only 2 left!

0

47

Husqvarna 532196944

Mounting Bracket, Control Panel, RH
(Superseded to 532429148)

$

$

Not available

48

Husqvarna 532196943

Mounting Bracket, Control Panel, LH
(Superseded to 532429149)

$4.99

$

In Stock, only 1 left!

0
