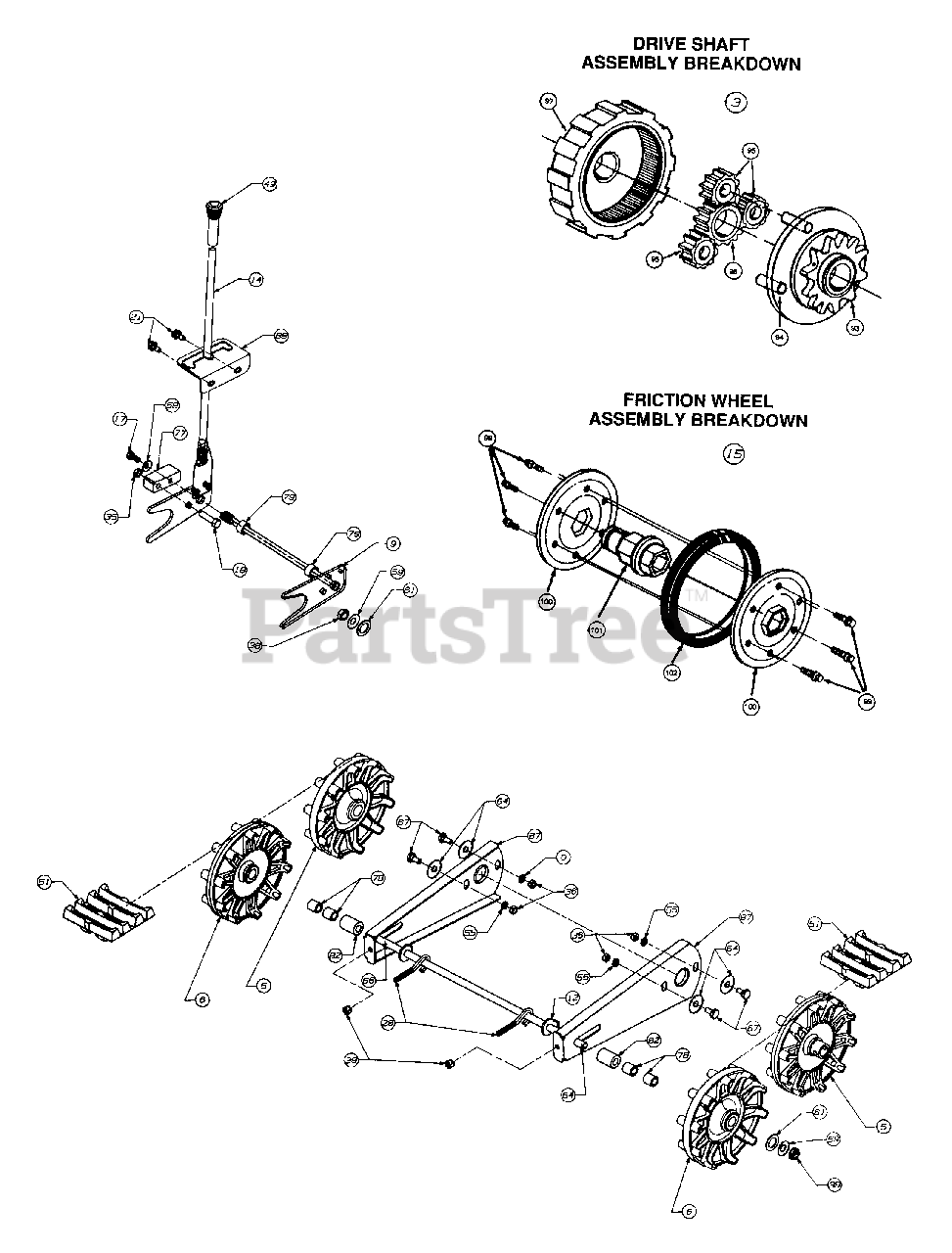

524 T (315-716E100) - Cub Cadet 24" Snow Thrower (1995) Track And Frame II Parts Diagram

24" Snow Thrower

Track And Frame II Parts Diagram

  • Title

UNKNOWN

$

$

Not available

3

Cub Cadet 618-0045

Drive Shaft Assembly

$

$

Not available

5

Cub Cadet 631-0002

Wheel Track Drive

$

$

Not available

6

Cub Cadet 631-0004

Wheel Track Idler
(Superseded to 631-0032A)

$42.99

$

In Stock, only 2 left!

0

9

Cub Cadet 684-0009

Rod Track Pivot
(Superseded to 684-0009A)

Variations

Cub Cadet 684-0009-0721

USE 684-0009A-4044 ROD ASSY P - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0009-4033

USE 684-0009A-4033 ROD ASSY P - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 684-0024

Axle Idler
(Superseded to 753-05977)

Variations

Cub Cadet 684-0024-0637

Replacement Kit, 6 - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 684-0038

Handle Track Lock

Variations

Cub Cadet 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-0665

Handle Assembly, Trackloc - YARDMAN GREEN (0665)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-4021

Handle Assembly, Trackloc - CUB YELLOW 2 (4021)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 684-0042

Wheel Friction
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

17

Cub Cadet 710-0157

Screw, Hex

$3.99

$

In Stock, Qty 17

0

18

Cub Cadet 710-0459

Hex Screw
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

21

Cub Cadet 710-0604

Screw, Hex
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-1231

Bolt, Eye

$9.49

$

In Stock, only 2 left!

0

35

Cub Cadet 712-0214

Nut, Lock

$5.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0346

Hex Ins. Jam

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0429

Hex L-Nut

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

51

Cub Cadet 731-1292

Track

$291.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 736-0119

Washer, Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 736-0176

Washer, Flat

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0242

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0255

Washer, Bell

$4.49

$

In Stock, only 3 left!

0

61

Cub Cadet 736-0287

Washer, Flat

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0406

Washer, Flat
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

66

Lubricant

$

$

Not available

67

Cub Cadet 738-0140

Shoulder Screw

$5.49

$

In Stock, Qty 17

0

77

Cub Cadet 748-0353A

Lift, Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 750-0499

Spacer

$22.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 750-0547

Spacer

$5.49

$

In Stock, only 3 left!

0

82

Cub Cadet 750-0909

Spacer

$9.49

$

Usually ships in 3-6 days

0

87

Cub Cadet 784-5639

Plate, Track Side

Variations

Cub Cadet 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 784-5642

Plate, Track Lockout

Variations

Cub Cadet 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5642-0721

USE 784-5642-4044 PLATE-TRACK - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 718-0188

Carrier
(Superseded to 918-0576A)

$208.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 741-0542

5/16" Dowel Pin

$10.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 717-1209

12 Tooth Gear
(Superseded to 717-1209A)

$4.49

$

Usually ships in 3-6 days

0

96

Cub Cadet 717-1210

18 Tooth Gear
(Superseded to 717-1210A)

$7.99

$

In Stock, only 3 left!

0

97

Cub Cadet 717-1211

Ring Gear
(Superseded to 717-1211B)

$

$

Not available

99

Cub Cadet 710-0599

Self-Tap Screw

$3.99

$

In Stock, Qty 20+

0

100

Cub Cadet 784-5677

Friction Plate

$

$

Not available

101

Cub Cadet 718-0240

Friction Wheel Hub

$

$

Not available

102

Cub Cadet 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

$17.99

$

In Stock, Qty 20+

0
