524 T (315-716E100) - Cub Cadet 24" Snow Thrower Engine (1995) Engine Assembly Parts Diagram

24" Snow Thrower Engine

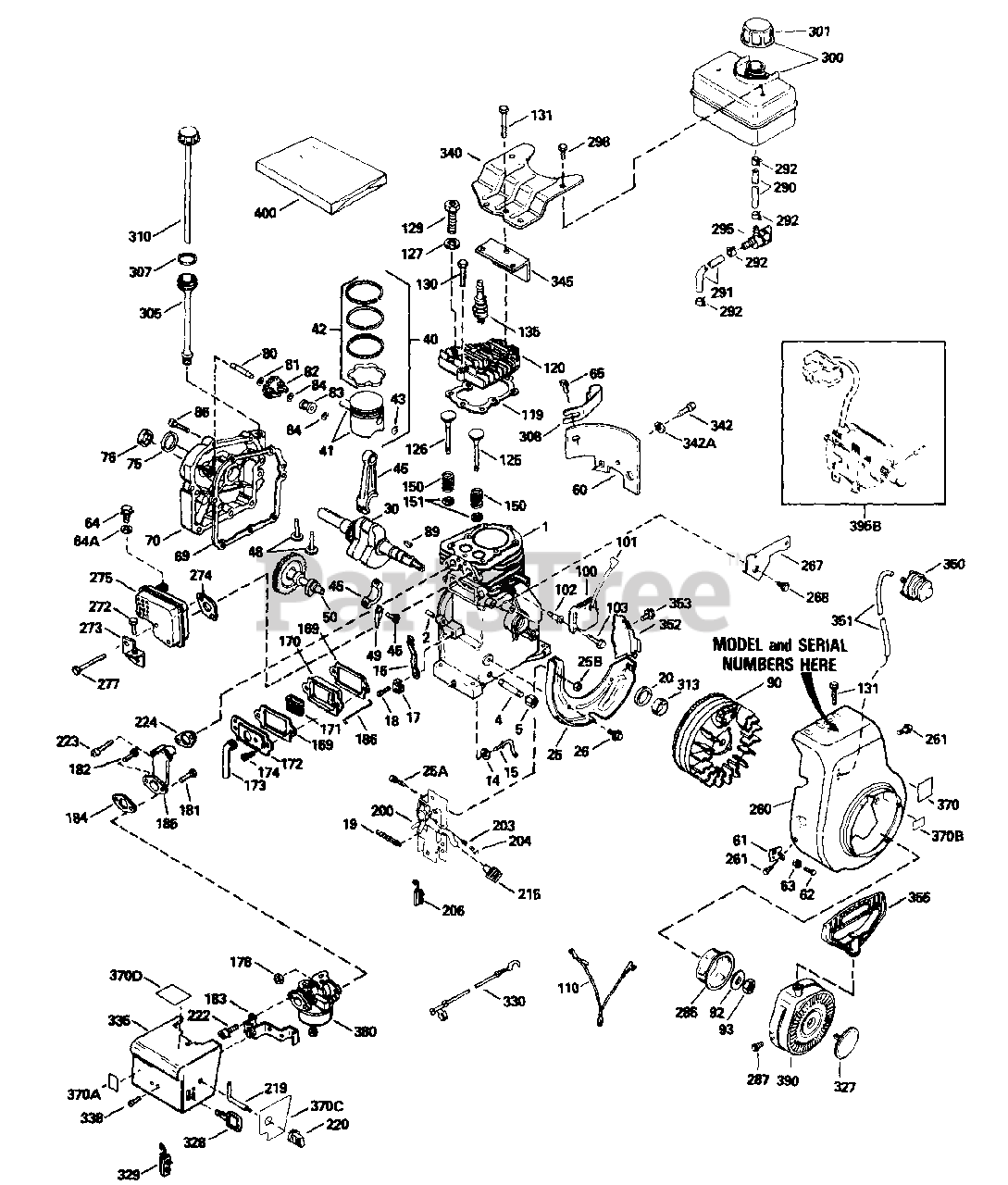

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet TC-33674B

Cylinder Ass'y.

Note: (Incl. Nos. 2 8 20)

$

$

Currently unavailable

2

Cub Cadet TC-26727

Pin, Dowel

$1.99

$

In Stock, Qty 5

0

4

Cub Cadet TC-34171

Nipple, Pipe

$

$

Currently unavailable

5

Cub Cadet TC-30969

Cap, Oil Drain

$5.49

$

In Stock, only 1 left!

0

14

Cub Cadet TC-28277

Washer, Flat

$1.99

$

In Stock, only 3 left!

0

15

Cub Cadet TC-31334

Rod, Governor

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet TC-31510

Lever, Governor

$

$

Not available

17

Cub Cadet TC-31335

Clamp, Governor Lever

$1.99

$

In Stock, Qty 5

0

18

Cub Cadet TC-650548

Screw, Hex Washer Hd., 8-32 x 5/16

$

$

Not available

19

Cub Cadet TC-31426

Spring, Extension

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet TC-32600

Seal, Oil

$

$

Not available

25

Cub Cadet TC-33342

Baffle, Lower Housing

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

25A

Cub Cadet TC-650139

Screw, Fil. Hd. Sems, 8-32 x 1/2

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

25B

Cub Cadet TC-30322

Nut, Lock, 8-32

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, Qty 6

0

30

Cub Cadet TC-35975

Crankshaft Ass'y.

$

$

Not available

40

Cub Cadet TC-34535

Piston, Pin & Ring Ass'y. (Std.)

Note: (Incl. Nos. 41, 42 8 43)

$74.99

$

In Stock, only 1 left!

0

40

Cub Cadet TC-34536

Piston, Pin & Ring Ass'y. (.010 Oversized)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

40

Cub Cadet TC-34537

Piston, Pin & Ring Ass'y. (.020 Oversize)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

41

Cub Cadet TC-33562B

Piston & Pin Ass'y. (Std.)

Note: (Incl. No. 43)

$44.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-33563B

Piston & Pin Ass'y. (.010 Oversize)

Note: (Incl. No. 43)

$

$

Not available

41

Cub Cadet TC-33564B

Piston & Pin Ass'y. (.020 Oversize)

Note: (Incl. No. 43)

$

$

Currently unavailable

42

Cub Cadet TC-33567

Ring Set, Piston (Std.)

$26.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-33568

Ring Set, Piston (.010 Oversize)

$

$

Not available

42

Cub Cadet TC-33569

Ring Set, Piston (.020 Oversize)

$

$

Currently unavailable

43

Cub Cadet TC-20381

Ring, Piston Pin Retaining

$1.99

$

In Stock, Qty 7

0

45

Cub Cadet TC-32875

Rod Ass'y., Connecting
(Superseded to TC-32875B)

Note: (incl. Nos. 46 & 49)

$47.99

$

In Stock, only 1 left!

0

46

Cub Cadet TC-32610A

Bolt, Connecting Rod

$1.99

$

In Stock, Qty 6

0

48

Cub Cadet TC-27241

Lifter, Valve

$

$

Currently unavailable

49

Cub Cadet TC-32654

Dipper, Oil

$

$

Currently unavailable

50

Cub Cadet TC-35976

Camshaft (Compression Release)

$

$

Currently unavailable

60

Cub Cadet TC-29745

Extension, Blower Housing

$

$

Currently unavailable

61

Cub Cadet TC-34126

Bracket, Grommet Mounting

$1.99

$

Usually ships in 3-12 days

0

62

Cub Cadet TC-650760

Screw, Pan Hd. Taptite, 8-32 x 3/8

$1.99

$

In Stock, only 4 left!

0

63

Cub Cadet TC-28545

Grommet, Plastic

$1.99

$

In Stock, Qty 5

0

64

Cub Cadet TC-30063

Screw, Torx T-30 Hex Washer Hd. Sems, 1/4-20 x 1/2

$1.99

$

In Stock, Qty 20+

0

64A

Cub Cadet TC-8345

Washer, Flat

$

$

Currently unavailable

65

Cub Cadet TC-650128

Screw, Hex Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

69

Cub Cadet TC-27677A

Gasket, Cylinder Cover

Note: Included In Gasket Set, P/N TC-33683B

$7.49

$

In Stock, Qty 17

0

70

Cub Cadet TC-34678

Cover, Cylinder

Note: (Incl. Nos. 75 & 80)

$

$

Not available

75

Cub Cadet TC-27897

Seal, Oil

$8.49

$

In Stock, Qty 20+

0

76

Cub Cadet TC-30318

Seal, Camshaft

$7.49

$

In Stock, only 4 left!

0

80

Cub Cadet TC-30574

Shaft, Mechanical Governor

$

$

Not available

81

Cub Cadet TC-30590A

Washer, Flat

$1.99

$

In Stock, Qty 9

0

82

Cub Cadet TC-30591

Gear, Governor

Note: (Incl. No. 83 )

$13.99

$

In Stock, Qty 13

0

83

Cub Cadet TC-30588A

Spool, Governor

$1.99

$

In Stock, Qty 12

0

84

Cub Cadet TC-29193

Ring, Retaining

$1.99

$

In Stock, Qty 10

0

86

Cub Cadet TC-650488

Screw, Hex Hd. Sems, 1/4-20 x 1-1/4

$1.99

$

In Stock, only 4 left!

0

89

Cub Cadet TC-610961

Key, Flywheel

$1.49

$

In Stock, Qty 20+

0

90

Cub Cadet TC-611081

Flywheel (w/Ring Gear)

$

$

Not available

92

Cub Cadet TC-650815

Washer, Belleville

$1.99

$

In Stock, Qty 13

0

93

Cub Cadet TC-650863

Nut, Flywheel

$

$

Not available

100

Cub Cadet TC-34443A

Solid State Ass'y.
(Superseded to TC-34443D)

$44.99

$

In Stock, Qty 20+

0

101

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, Qty 19

0

102

Cub Cadet TC-650872

Stud, Solid State Mounting

$

$

Not available

103

Cub Cadet TC-650814

Screw, Torx T-15 Hex Washer Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, Qty 5

0

110

Cub Cadet TC-35557

Ground Wire

$3.99

$

Usually ships in 3-12 days

0

119

Cub Cadet TC-33554A

USE TC-36443 GASKET
(Superseded to TC-36443)

Note: Included In Gasket Set, P/N TC-33683B

$5.99

$

In Stock, Qty 10

0

120

Cub Cadet TC-33016A

CYLINDER HEAD

Note: (Incl. No. 131)

$

$

Not available

125

Cub Cadet TC-29313C

EXHAUST VALVEA

Note: (Incl No. 151)

$

$

Not available

125

Cub Cadet TC-29315C

EXHAUST VALVE

Note: (Incl. No. 151)

$

$

Not available

126

Cub Cadet TC-32644A

VALVE-INTA

Note: (Incl No. 151)

$9.99

$

In Stock, Qty 8

0

126

Cub Cadet TC-32645A

Valve, Intake (1/32" Oversize)

Note: (Incl. No. 151)

$

$

Currently unavailable

127

Cub Cadet TC-650691

WASHER

$1.99

$

In Stock, Qty 5

0

129

Cub Cadet TC-650818

SCREW

$3.99

$

In Stock, only 2 left!

0

130

Cub Cadet TC-6021A

SCREW

$1.99

$

In Stock, Qty 7

0

131

Cub Cadet TC-650694A

SCREW

$3.49

$

In Stock, Qty 8

0

135

Cub Cadet 759-3339

Spark Plug, J8C

$3.49

$

In Stock, Qty 20+

0

150

Cub Cadet TC-31672

Spring, Valve

$1.99

$

In Stock, Qty 17

0

151

Cub Cadet TC-31673

CAP-VALVE SPRING

$1.99

$

In Stock, Qty 6

0

169

Cub Cadet TC-27234A

VALVE COVER GASKET

Note: Included In Gasket Set, P/N TC-33683B

$5.99

$

In Stock, Qty 11

0

170

Cub Cadet TC-27666

BODY-VALVE

$14.99

$

In Stock, Qty 7

0

171

Cub Cadet TC-31410

Air Cleaner

$1.99

$

In Stock, Qty 20+

0

172

Cub Cadet TC-34146

BREATHER COVER

$3.99

$

In Stock, only 4 left!

0

173

Cub Cadet TC-35350

Tube

$6.49

$

In Stock, Qty 12

0

174

Cub Cadet TC-650128

SCREW

$5.49

$

In Stock, only 2 left!

0

178

Cub Cadet TC-29752

Nut and Lockwasher, 1/4-28

$1.99

$

In Stock, Qty 5

0

181

Cub Cadet TC-6201

Screw, Hex Hd., 1/4-28 x 7/8

$

$

Currently unavailable

182

Cub Cadet TC-650870

SCREW

$1.99

$

In Stock, Qty 5

0

183

Cub Cadet TC-34583

Choke Bracket
(Superseded to TC-34583A)

$12.99

$

In Stock, Qty 7

0

184

Cub Cadet TC-26756

GASKET

Note: Included In Gasket Set, P/N TC-33683B

$2.99

$

In Stock, Qty 20+

0

185

Cub Cadet TC-33691

PIPE-INTAK

$25.99

$

Usually ships in 3-12 days

0

186

Cub Cadet TC-32698

GOVERNOR LINK

$1.99

$

In Stock, Qty 13

0

200

Cub Cadet TC-33858A

Control Assembly
(Superseded to TC-36677)

Note: (Incl. Nos. 25A, 25B, 203, 204 & 206)

$47.99

$

In Stock, only 1 left!

0

203

Cub Cadet TC-31342

Compression Spring

$5.99

$

In Stock, only 2 left!

0

204

Cub Cadet TC-650549

Torx Screw
(Superseded to TC-651029)

$1.99

$

In Stock, only 4 left!

0

206

Cub Cadet TC-610973

Terminal Ass'y.

$3.99

$

In Stock, only 4 left!

0

215

Cub Cadet TC-35440

Control Knob

$3.99

$

Usually ships in 3-12 days

0

219

Cub Cadet TC-34582

Choke Rod

$5.49

$

In Stock, only 1 left!

0

220

Cub Cadet TC-35438

Control Knob

$3.99

$

In Stock, Qty 10

0

222

Cub Cadet TC-28820

USE TC-651081 SCREW
(Superseded to TC-651081)

$4.49

$

In Stock, Qty 6

0

223

Cub Cadet TC-650664

Screw, Fil. Hd. Sems, 1/4 - 20 x 1 - 19/32

$

$

Currently unavailable

224

Cub Cadet TC-33673A

GASKET-INT

Note: Included In Gasket Set, P/N TC-33683B

$5.99

$

In Stock, only 2 left!

0

260

Cub Cadet TC-35656A

BLOWER HOUSING

$34.99

$

Usually ships in 3-12 days

0

261

Cub Cadet TC-29212

Screw, Hex Hd. Sems, 1/4-28 x 7/16

$

$

Currently unavailable

267

Cub Cadet TC-34212

Bracket, Hold Down

$

$

Currently unavailable

268

Cub Cadet TC-30200

SCREW

$1.49

$

In Stock, Qty 16

0

272

Cub Cadet TC-650735

SCREW

$1.99

$

In Stock, only 2 left!

0

273

Cub Cadet TC-33333

BRACKET

$3.99

$

Usually ships in 3-12 days

0

274

Cub Cadet TC-33670A

EXHAUST GASKET

Note: Included In Gasket Set, P/N TC-33683B

$2.49

$

In Stock, Qty 20+

0

275

Cub Cadet TC-35771

Muffler
(Superseded to TC-35771A)

Note: (Incl. No. 274)

$32.99

$

Usually ships in 3-12 days

0

277

Cub Cadet TC-650327

Screw
(Superseded to TC-650327A)

$6.99

$

In Stock, Qty 18

0

285

Cub Cadet TC-34694

CUP-STARTE

$11.99

$

Usually ships in 3-12 days

0

287

Cub Cadet TC-650884

Screw, Hex Washer Hd., 8-32 x 1/2
(Superseded to TC-650926)

$1.49

$

In Stock, Qty 19

0

290

Cub Cadet TC-29774

FUEL LINE

$34.99

$

In Stock, Qty 17

0

291

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 2 left!

0

292

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

295

Cub Cadet TC-35857

Fuel Fitting

$13.99

$

In Stock, only 3 left!

0

298

Cub Cadet TC-650665

SCREW

$1.99

$

In Stock, Qty 6

0

300

Cub Cadet TC-35584

Fuel Tank

Note: (Incl. Nos. 292 & 301)

$45.99

$

In Stock, Qty 5

0

301

Cub Cadet TC-35355

Fuel Cap
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 20+

0

305

Cub Cadet TC-35554

Oil Fill Tube

$19.99

$

In Stock, only 3 left!

0

307

Cub Cadet TC-35499

O-Ring

$1.49

$

In Stock, Qty 20+

0

308

Cub Cadet TC-35539

Oil Fill Clip

$1.99

$

Usually ships in 3-12 days

0

310

Cub Cadet TC-35556

DIPSTICK

$7.49

$

Usually ships in 3-12 days

0

313

Cub Cadet TC-34080

Spacer

$1.99

$

In Stock, only 2 left!

0

327

Cub Cadet TC-35392

PLUG-START

$1.99

$

In Stock, only 2 left!

0

328

Cub Cadet 725-0954

Ignition Key
(Superseded to TC-35062)

$3.99

$

In Stock, only 2 left!

0

329

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 4 left!

0

330

Cub Cadet TC-35285

WIRE-GROUN

$

$

Not available

335

Cub Cadet TC-35072

USE TC-35072B COVER-CARB
(Superseded to TC-35072B)

$

$

Not available

338

Cub Cadet TC-650257

Screw, Pan Hd. Sems, 8-32 x 5/16

$1.49

$

In Stock, Qty 20+

0

340

Cub Cadet TC-36247

PLATE-FUEL

$11.99

$

In Stock, only 1 left!

0

342

Cub Cadet TC-30063

Screw, 1/4-20 X 1/2"

$1.99

$

In Stock, Qty 20+

0

342A

Cub Cadet TC-650675

Washer, Flat

$

$

Currently unavailable

345

Cub Cadet TC-33344

BAFFLE-HEA

$5.49

$

Usually ships in 3-12 days

0

350

Cub Cadet TC-570682

Primer Bulb and Body Assembly
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

351

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 6

0

352

Cub Cadet TC-35883

ETENSION-B

$1.99

$

In Stock, Qty 5

0

353

Cub Cadet TC-650884

Screw, Hex Wash. Hd., 8-32 x 1/2
(Superseded to TC-650926)

$1.49

$

In Stock, Qty 19

0

355

Cub Cadet TC-590574

Starter Handle

$5.49

$

In Stock, only 1 left!

0

370

Cub Cadet TC-550223

DECAL

$

$

Not available

370A

Cub Cadet TC-34416

DECAL-INSTRUCTION

$

$

Not available

370B

Cub Cadet TC-34417

LABEL

$

$

Not available

370C

Cub Cadet TC-35282

DECAL

$2.49

$

In Stock, Qty 5

0

370D

Cub Cadet TC-34414

DECAL

$

$

Not available

380

Cub Cadet TC-632107A

Carburetor
(Superseded to TC-640084B)

Note: (Incl. No. 184)

$109.99

$

In Stock, only 4 left!

0

390

Cub Cadet TC-590646

Recoil Starter
(Superseded to TC-590787)

$53.99

$

In Stock, only 1 left!

0

395B

Electric Starter Kit (Optional) Sold as Accessory -- See Pg. 67

$

$

Not available

400

Cub Cadet TC-33683B

USE TC-33683C GASKET SET
(Superseded to TC-33683C)

Note: Includes Ref Nos 69, 119, 169, 184, 224 & 274

$20.99

$

In Stock, Qty 5

0
